Numatic TTB1840NX - Changing and Refitting Floor-tool Blades

11
www.numatic.co.uk
Regular Maintenance
2
4
3
5
1

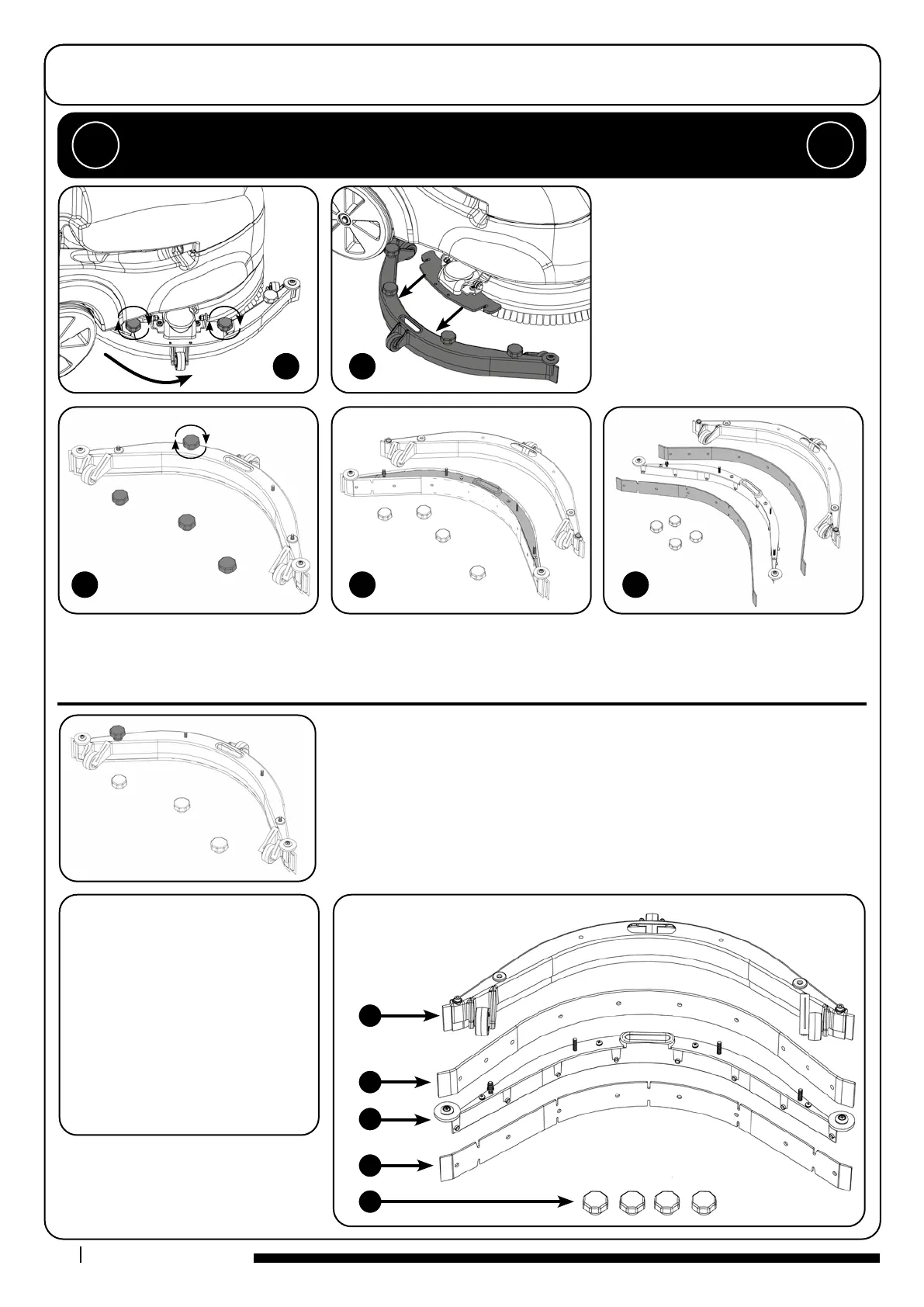

Floor-tool Overview
1. Retaining knobs x 4
2. Front blade (slotted)
3. Blade carrier
4. Rear blade
5. Floor-tool main body
!!
To change the oor-tool, rstly swing the
oor-tool clear of the machine. Undo the
two oor-tool retaining knobs (Fig.A).
Pull the oor-tool away from the machine
(Fig.B).
Ret the blade holder, retain using the two outer knobs.
Ensure the slotted blade goes to the front of the oor-tool.
Note: The blades are designed to be reversible, thus extending their useful working
life.
Ret the oor-tool using the two central knobs to the oor-tool.
A
1
2
3
B
Replace the Squeegee blades using
(903531) replacement blade set (Fig.3),
tting the blades on to the moulded location
lugs.
Remove the blade holder (Fig.2).Unscrew the four knobs securing the
blade holder (Fig.1).
Refitting the Floor-tool Blades
Changing the Floor-tool
Blades
ALWAYS ENSURE THAT THE BATTERY IS REMOVED
PRIOR TO ANY MAINTENANCE OPERATION
!!
