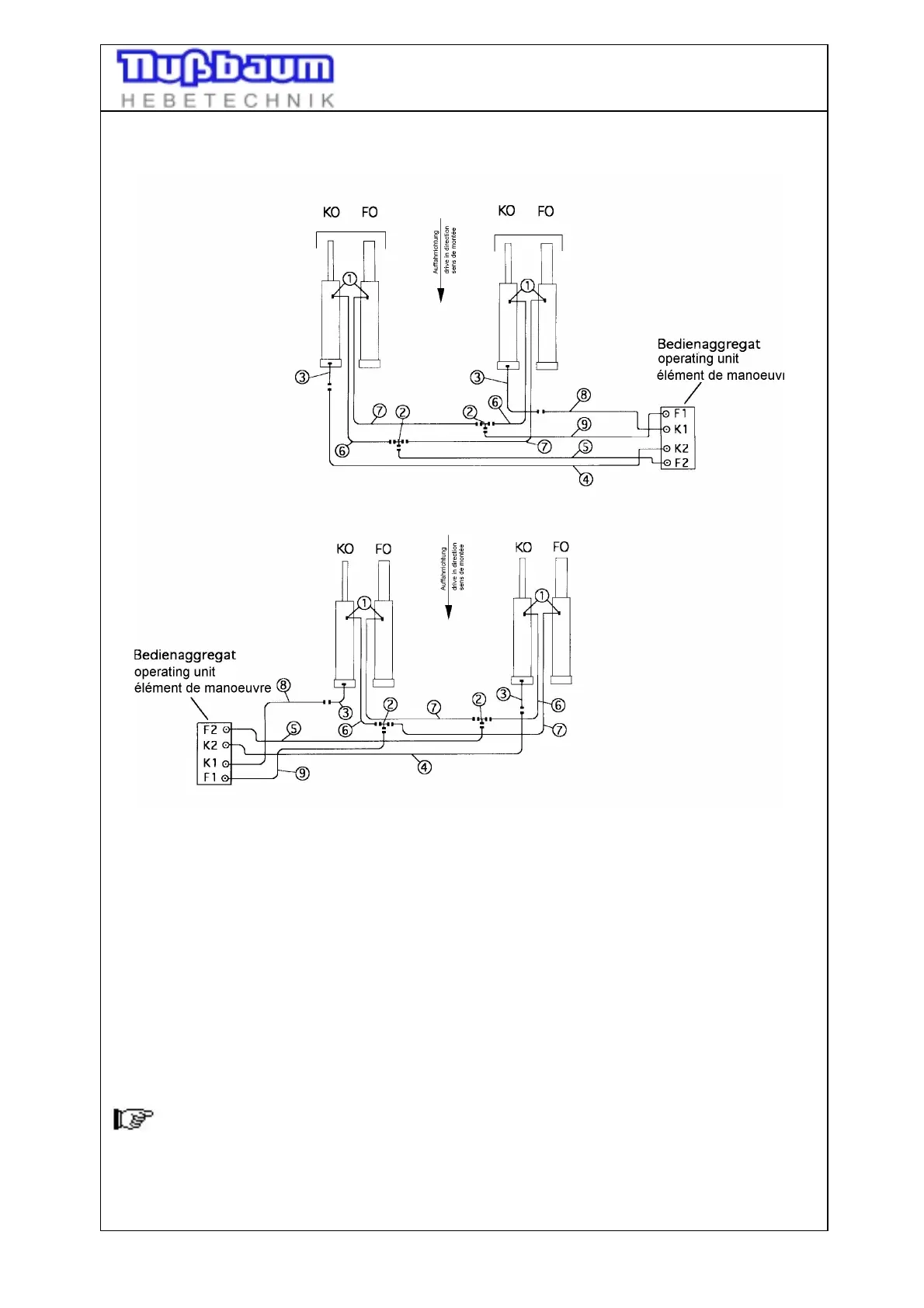

3.6 Connection of the hydraulic tubes
Pos: Description piece/Lift
1 reduction 8 – 6 4x
2 T-piece NW8 2x
3 hydraulic tube 450 mm 4x
4 hydraulic tube 3400 mm 1x
5 hydraulic tube 3400 mm 1x
6 hydraulic tube 850 mm 2x
7 hydraulic tube 1500 mm 2x
8 hydraulic tube 2100 mm 1x
9 hydraulic tube 2700 mm 1x
KO master cylinder
FO slave cylinder
It is possible to mount the operating unit on the left side or on the right side of
the lift. Observe the cylinder pair, which is nearer to the operating unit, they
have the designation K1 and F1. The designation of the tubes becomes taken
over, indifferent where the operating unit stands.
