Operating Instruction and Documentation
Sprinter NT
- 29 -

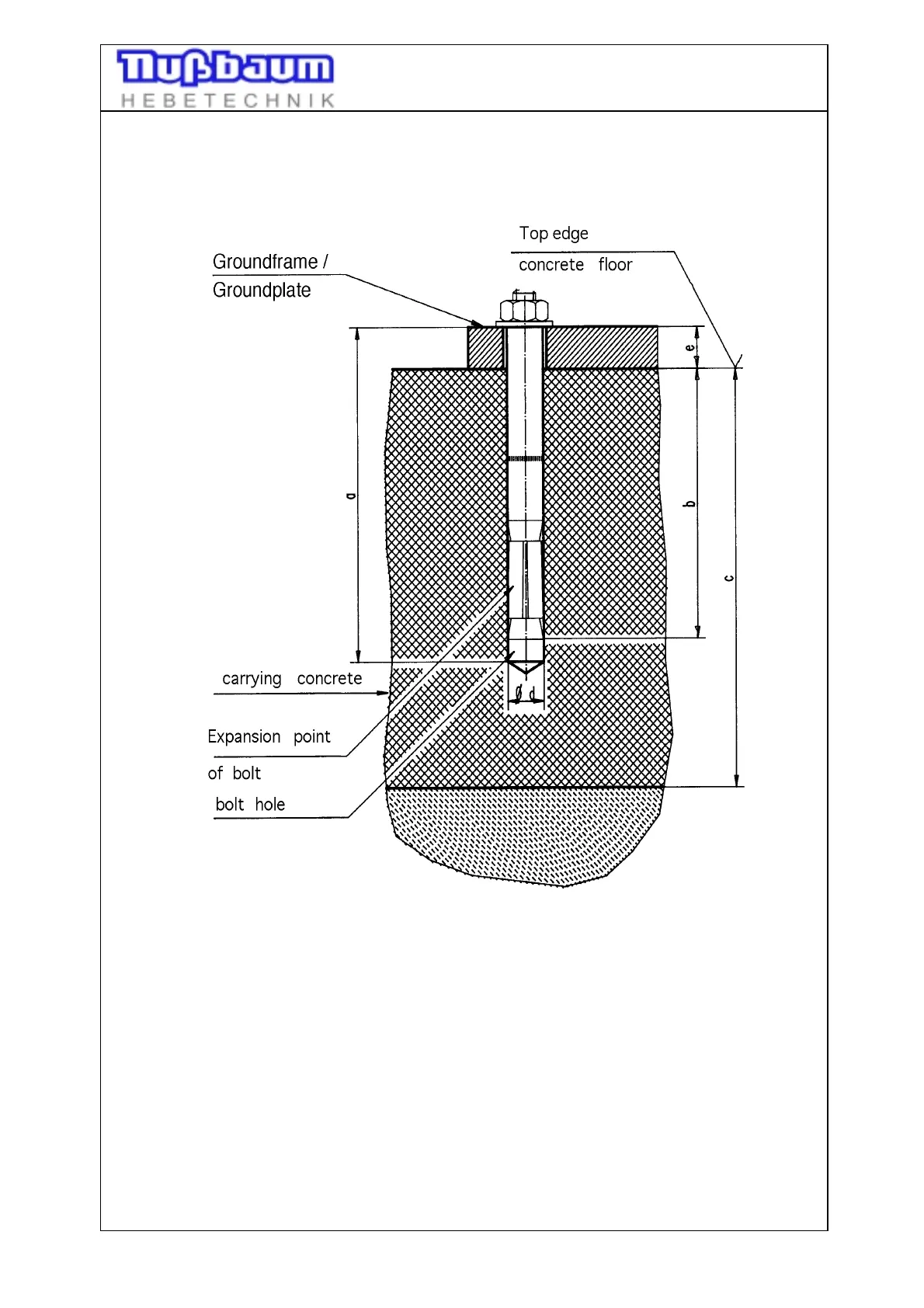

Pic. 17: choice of the dowel length without floor pavement or tile surface
Table to pic. 17
Liebig-dowels
Dowel type B15/75 B15/95
Drilling depth a 112 112
Min. anchorage depth b 72 72
Thickness of concrete c 160 160
Diameter of bore d 15 15
Thickness of the lift-pieces e 0-40 40-65
Number of dowels 8 8
Starting torque according to dowel manufacturer
