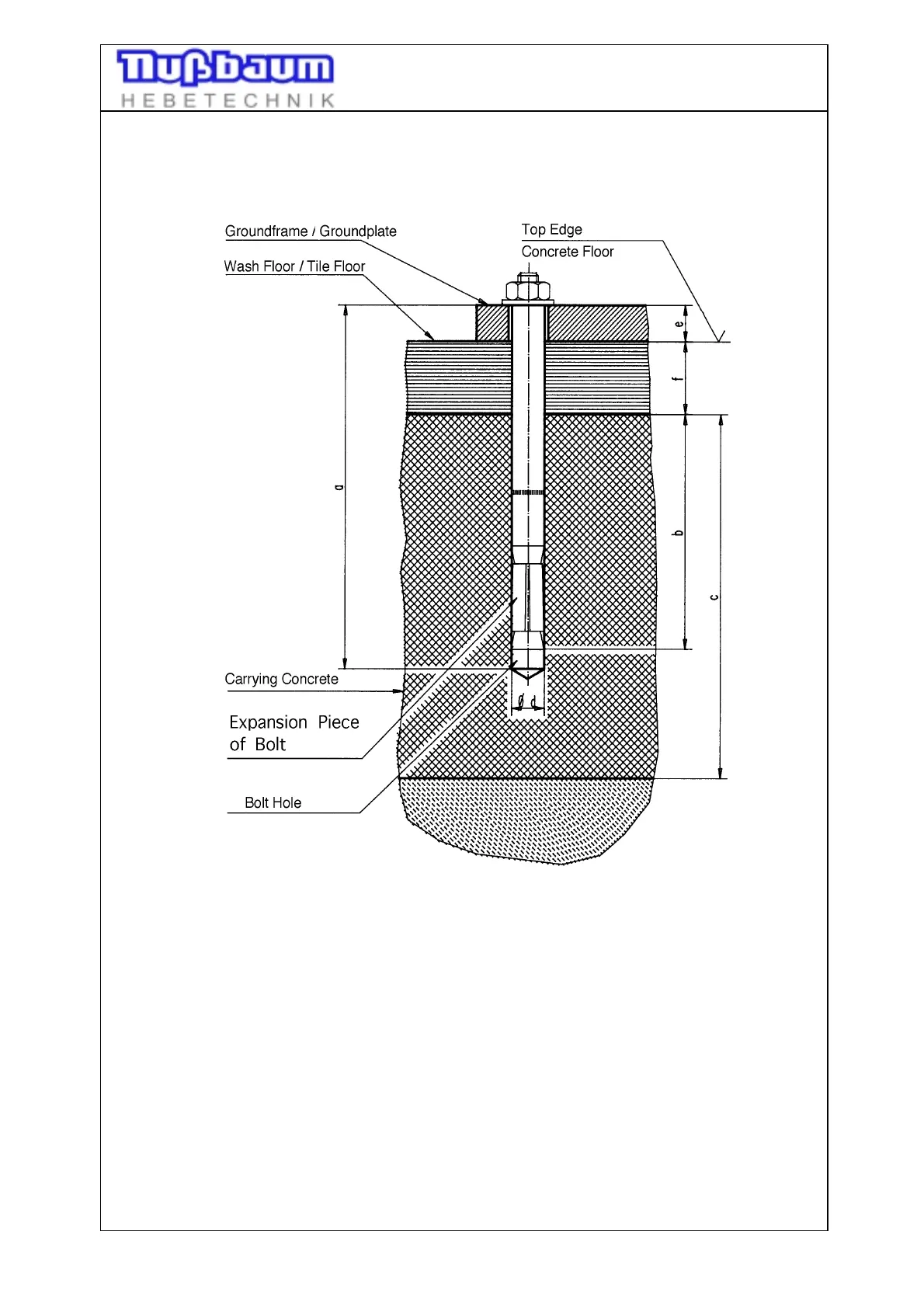

Pic. 18: choice of the dowel length with floor pavement or tile surface
Table to pic. 18
Liebig-dowels
Doweltyp B15/70 B15/95 B15/120 B15/145
Drilling depth a 112 137 162 187
Min. anchorage depth b 72 72 72 72
Thickness of concrete c 160 160 160 160
Diameter of bore d 15 15 15 15
Thickness of the lift-pieces e 0-40 40-65 65-90 90-115
Number of dowels 8 8 8 8
Starting torque according to dowel manufacturer
