Nustep T4 - Display Unit Removal and Installation

19

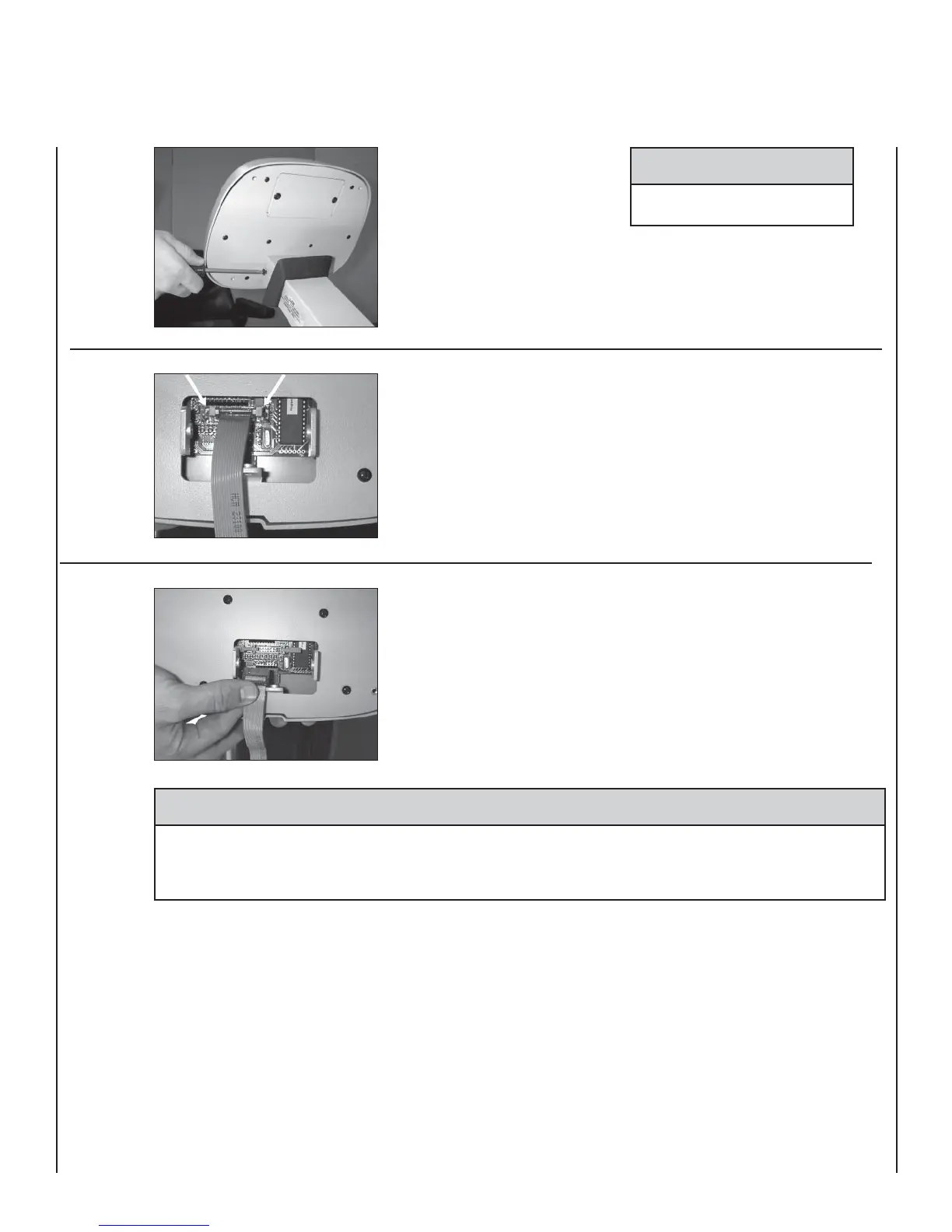

Display: Removal and Installation
1.
2.
Release 2 locking
tabs on each side of
connector.
Snap tabs of connector
outward.
Remove three screws.
(Hold onto display so it
does not fall!)
Remove 1 screw on each side,
and 1 screw on bottom.
k" W4"0C4F>":=>8:";1"7>F>7:>"47I>7#
k" Note: Align key of cable connector with slot of display connector, then snap tabs into place.
3.
Pull out cable from
connector.
k" Y/;JJ;8:":97>GI7;F>7
Tools Required:
To Re-Install Display:
