9

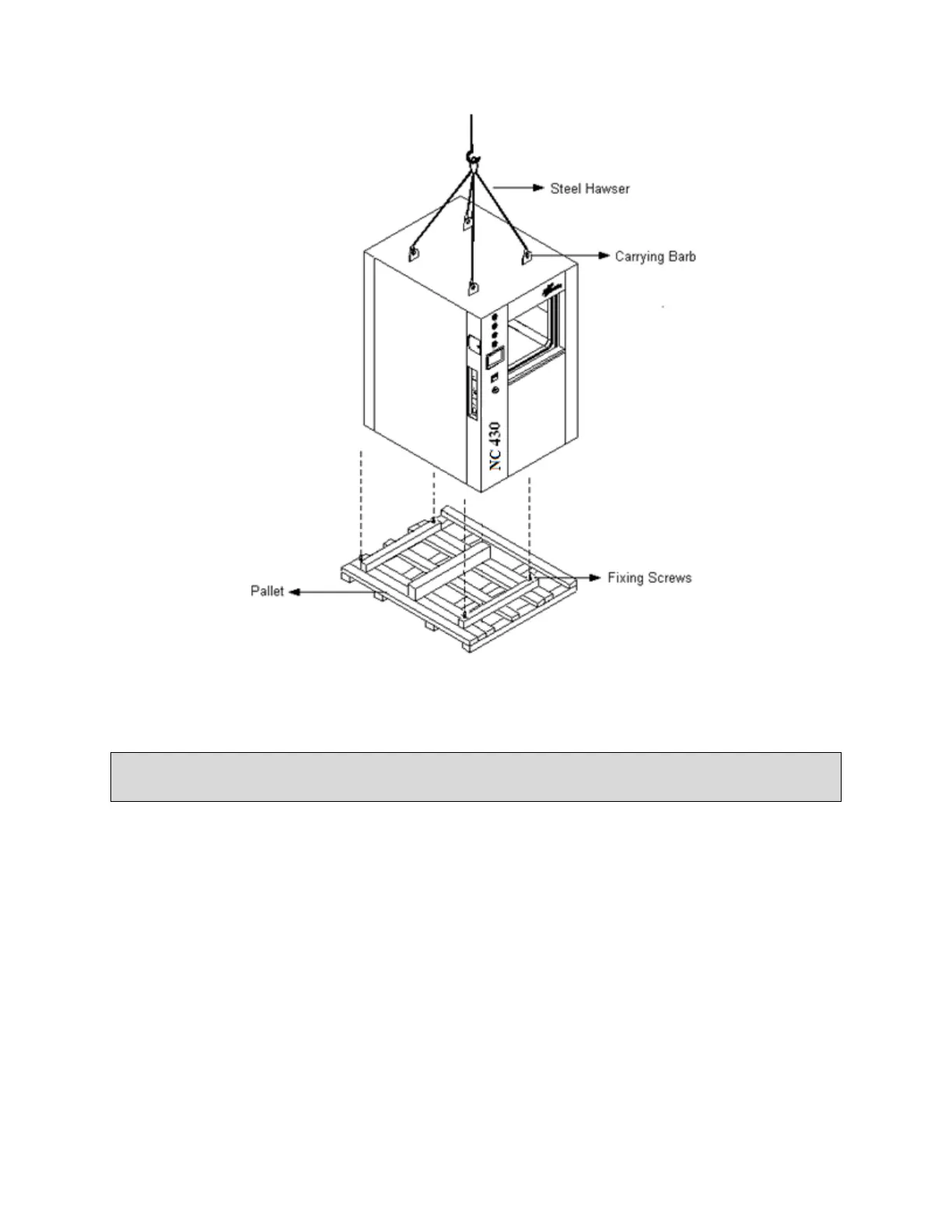

Figure 1
 Lift the device from carrying barbs with a crane help.

The capacity of moving hawsers should be chosen according to weigh of the device.
 The weight of the device with pallet:
 NC 300: 950 kg
 NC 430: 1050 kg
 NC 570: 1200 kg
 NC 710: 1500 kg
 Unfix 4 fixing screws which are under the pallet.
 Remove the pallet carefully.
 After removing the pallet set down the device slowly and flatly.
