3.2.3 Software Serial Number (SN)
The Software Serial Number (SN) function provided by the ICP Tool enables users to specify the
value in the “Increase SN from” and “Write address in flash” fields for the target chip during
online/offline programming. Take the NUC140VE3CN chip for example, the user can specify a set of
“Increased Serial Number (SN)” and “Write Address” to any of APROM, LDROM, and Data Flash, and
the written Serial Number (SN) will be automatically incremented (as shown in Figure 3-7).
0x00000000
0x0001FFFF
0x00100000
0x00100FFF
DFBADR[31:0]
LDROM
Data Flash
Reserved
APROM
0x00014000 0x174A0000
LDROM
Data Flash
Reserved
APROM
0x174A0001
Chip 1 Chip 2
+1

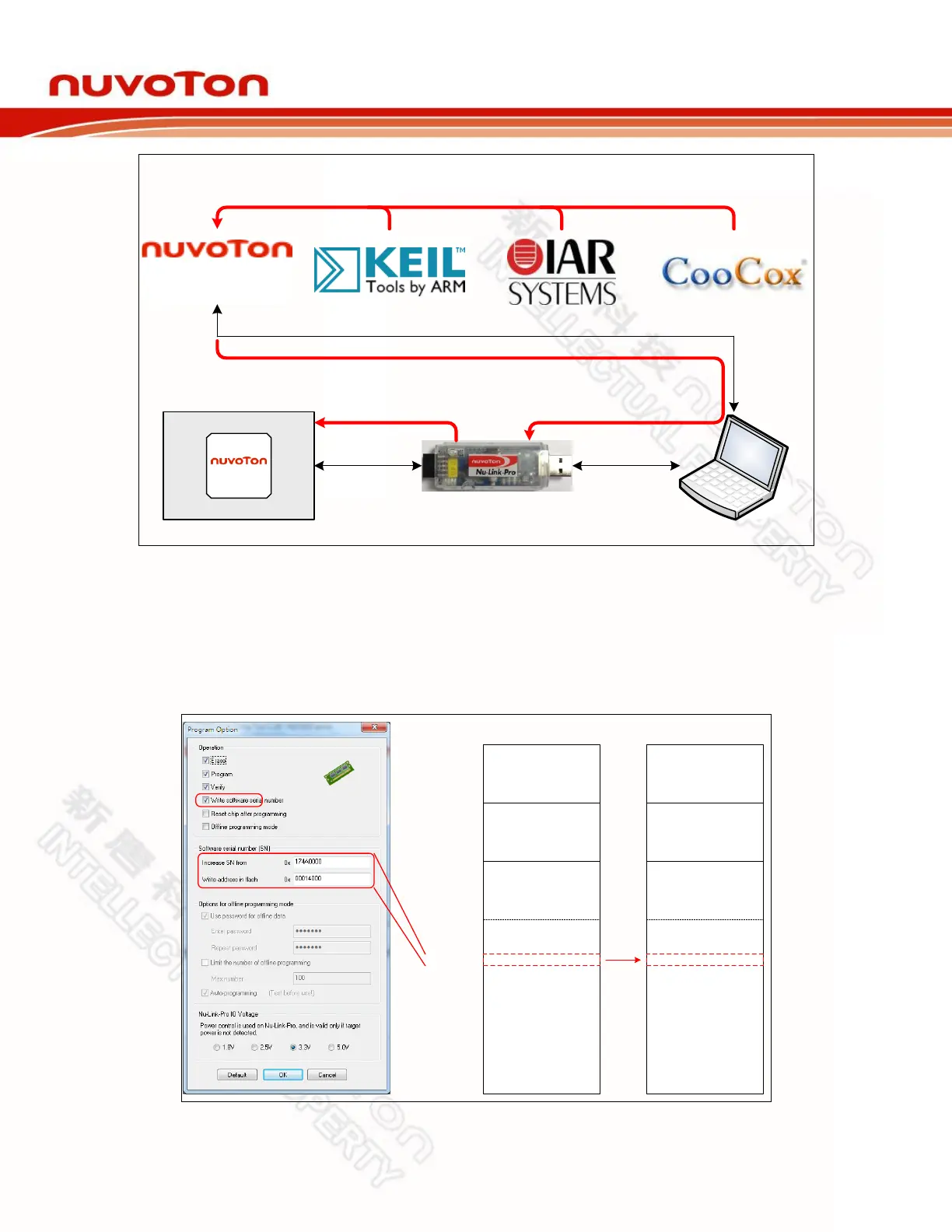

Figure 3-7 Software Serial Number (SN) Settings
