4 Installation and Setup
This chapter introduces how to connect the Nu-Link Adapter to a computer, and how to set the third-
party tool to use the Nu-Link Adapter as a debugger and a programmer.
4.1 Connecting to the Nu-Link Adapter
As shown in Figure 4-1, the Nu-Link Adapter is a bridge between an USB and the SWD interface, by
which software tools can debug and program the target chip through an USB. The user can plug the
Nu-Link Adapter into an USB port of a PC directly or connect using the USB connector.
Through a SWD port, the Nu-Link Adapter can supply power (1.8V, 2.5V, 3.3V, or 5.0V) to a target
circuit board. The maximum is 5V/500mA. Refer to Table 2-1 for detailed specifications.

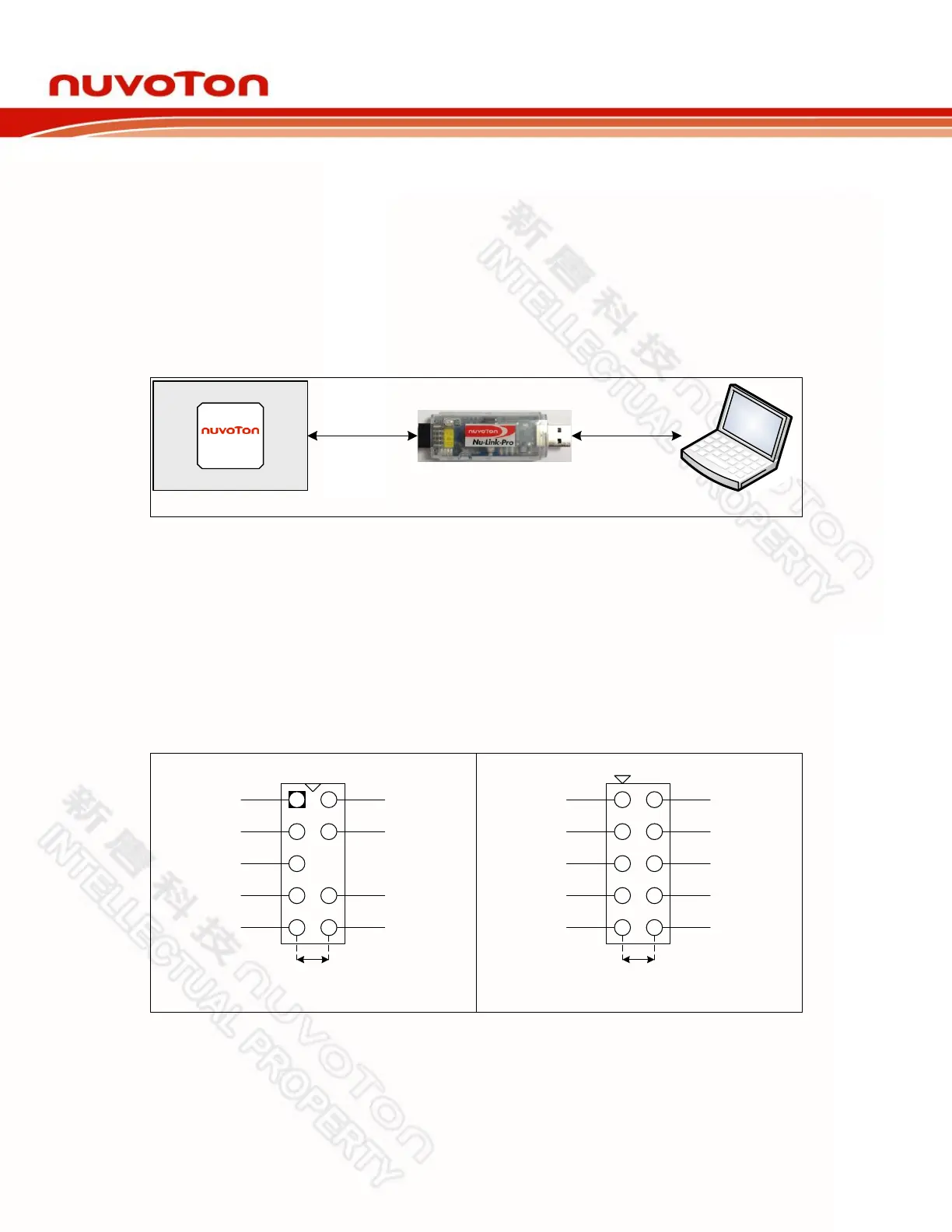

ComputerNu-Link AdapterTarget Board
SWD USB
NuMicro™ Family
Figure 4-1 Nu-Link Adapter Connection Diagram
SWD Connector:
The SWD connector, which can be applied to all of the NuMicro™ development tools and evaluation
boards, is a 100 mil (2×5) female header, as shown in the left of Figure 4-2.
Cortex Debug Connector:
The Cortex Debug connector, which can be applied to Keil’s MCBNUC1XX board, is a 50 mil (2×5)
male header, as shown in the right of Figure 4-2.
VSS(GND)
/RESET
ICE_CLK
ICE_DAT
VCC
NC
NC
NC
NC
100 mil
SWD
(Female header)
NC
NC
VSS(GND)
VSS(GND)
VCC
/RESET
NC
ICE_CLK
ICE_DAT
NC
50 mil
Cortex Debug
(Male header)
Figure 4-2 SWD and Cortex Debug Connector Pin Diagrams
