D115W Series User Manual https://www.avermedia.com/professional/

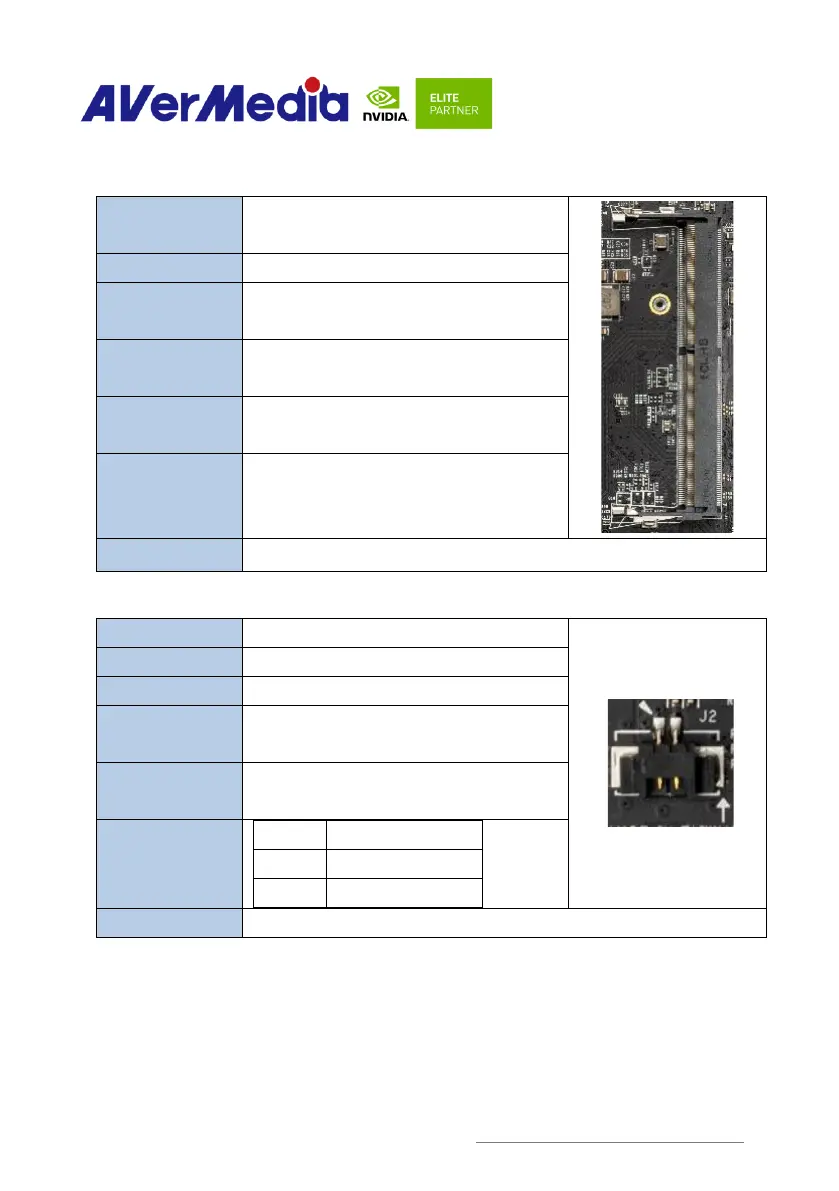

3.0 Feature Description
3.1 Jetson module Connector
Function
Provide connection with NVIDIA® Jetson
SOM
Location
J1
Type Description
SOCKET_DDR4
SO-DIMM_260PIN_90°
Manufacturer
and Part Number
Foxconn ASAA826-EASB0-7H
Mating
Connector
NVIDIA® Jetson Orin NX/Orin Nano
Pinout
Please refer to NVIDIA Jetson
System-on-Module datasheet for pinout
details.
Remarks
https://developer.nvidia.com/ embedded/downloads
3.2 RTC Battery Connector
Function
RTC battery for module
Location
J2
Type Description
1.25mm wire-to-board header 02P type
Manufacturer
and Part Number
宏致_ACES
50271-00201-001
Mating
Connector
Molex 51021-8602
Pinout
Pin #
Description
PIN1
GND
PIN2
3V Power
Remarks
RTC Battery: KTS, CR2032 3V
