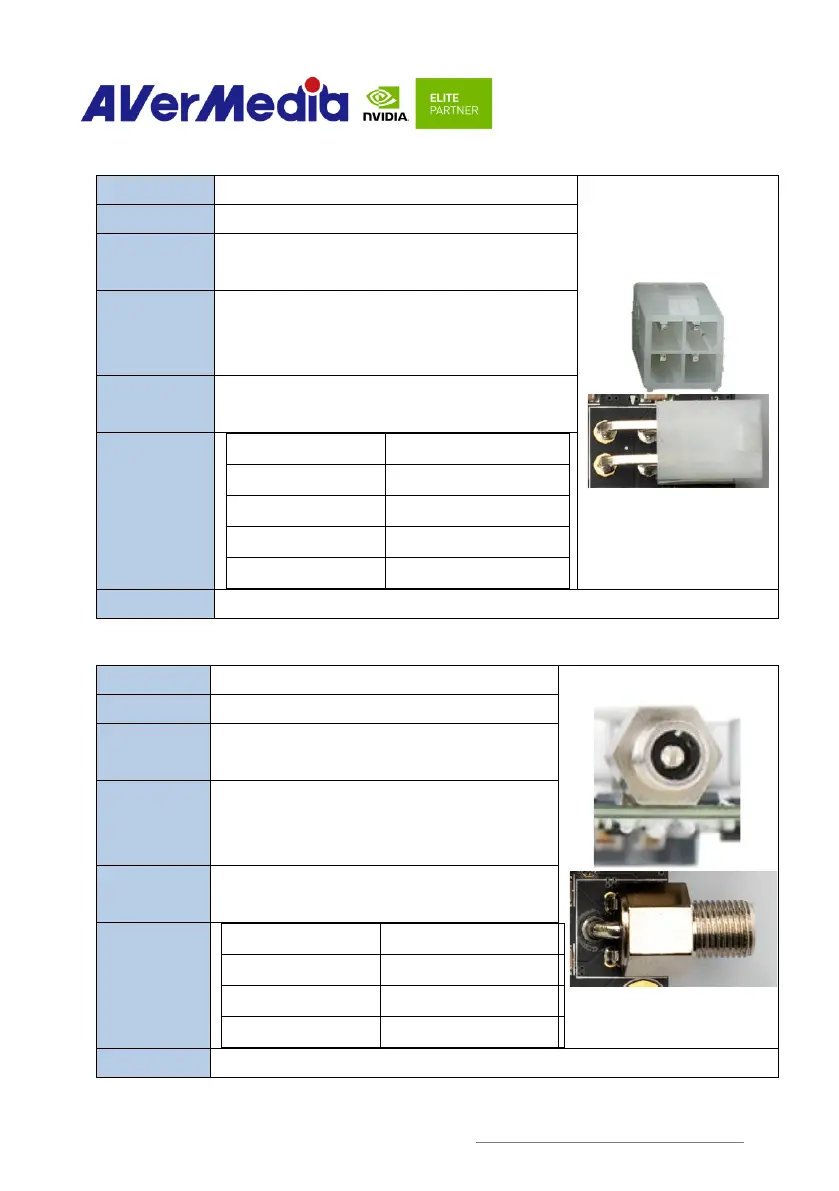

3.3 ATX 4P
Function
ATX 4P
Location
J3
Type
Description
WAFER_2*2PIN
Manufacture
r and Part
Number
FPWD-42R2-04NAT
Mating
Connector
power plug cable
Pinout
Pin Number
Description
1
GND
2
GND
3
9-24V Power
4
9-24V Power
Remarks
None
3.4 DC POWER JACK
Function
DC power input
Location
J4
Type
Description
2.5 mm power jack
Manufacture
r and Part
Number
JKCR,
DCD 020 105B
Mating
Connector
Any 2.5mm power plug cable
Pinout
Pin Number
Description
1
9-24V Power
2
GND
3
GND
Remarks
NA
4 3
2 1
