D115W Series User Manual https://www.avermedia.com/professional/

Connector

connector can be applicable.

Pinout

Comply with Ethernet standards.

Remarks

J15 is via I210 Ethernet controller and J16 is directly from NVIDIA

Jetson SOM.

PSE(Maximum 15W) Option: J16

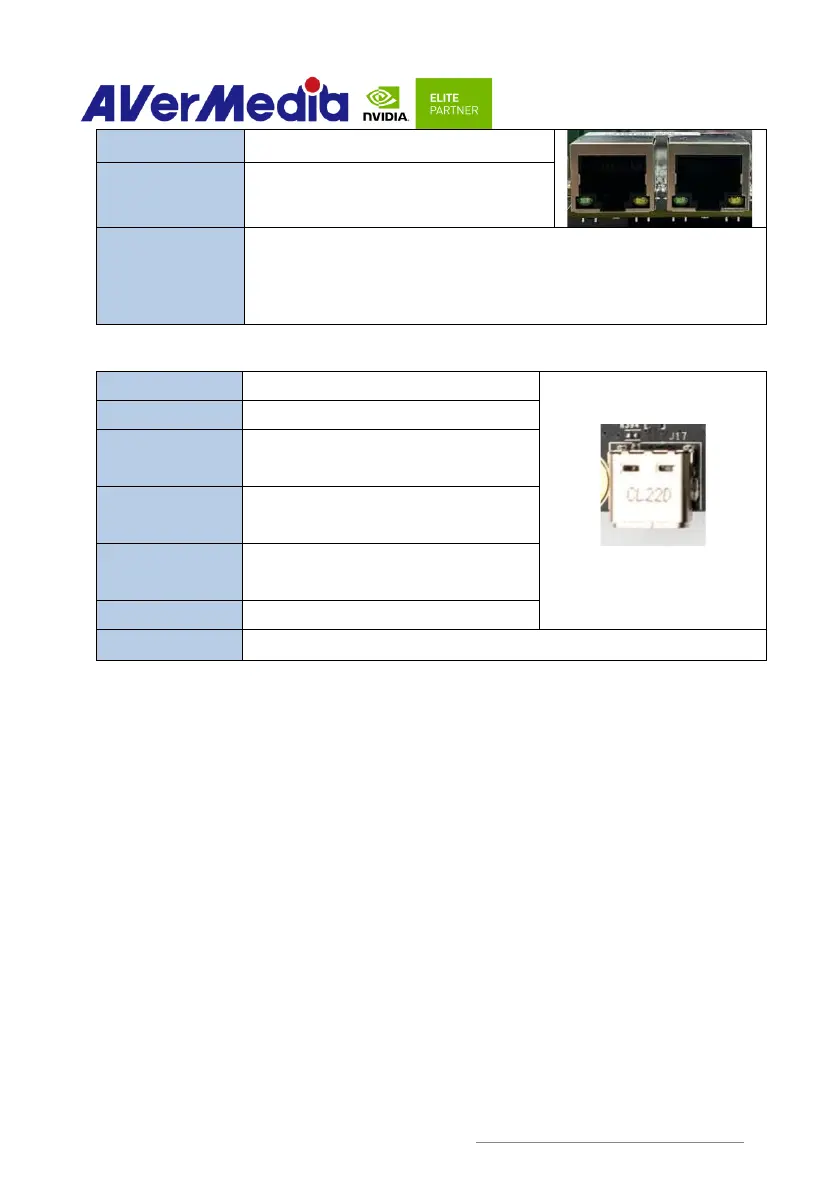

3.11 USB type C Connector

Function

BSP Installation as recovery mode

Location

J17

Type Description

JACK_USB_C

TYPE(F)_90°_PIP-L1.45 ㎜

Manufacturer

and Part Number

宏致 ACES, 57988-0240D-001

Mating

Connector

Any USB type C standard interface

cable or device.

Pinout

Please refer to USB type C standard.

Remarks

None
