D115W Series User Manual https://www.avermedia.com/professional/

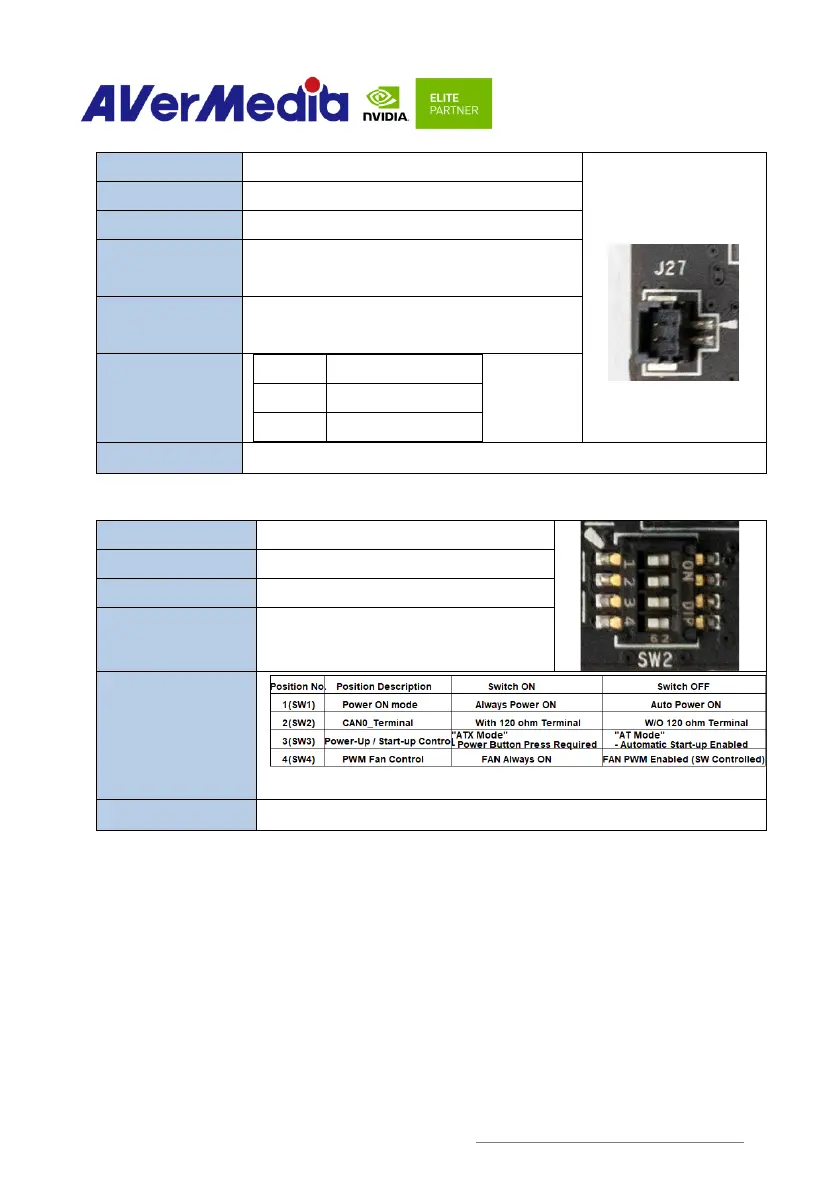

3.14 Power button function wafer

Function

Power button function wafer

Location

J27

Type Description

WAFER_1*2PIN_1 ㎜_180°_SMD

Manufacturer

and Part Number

ACES 宏致_50228-00271-001_WTB

Mating

Connector

Pinout

Pin #

Description

PIN 1

power button

PIN 2

GND

Remarks

None

3.15 DIP Switch

Function

Fan PWM controller/Auto Power on

Location

SW2

Type Description

4 SPST DIP switch

Manufacturer and

Part Number

DIPTRONICS IN OFF-SWITCHING

0.025A/24VDC

Pinout

Remark

Default SW2 all OFF
