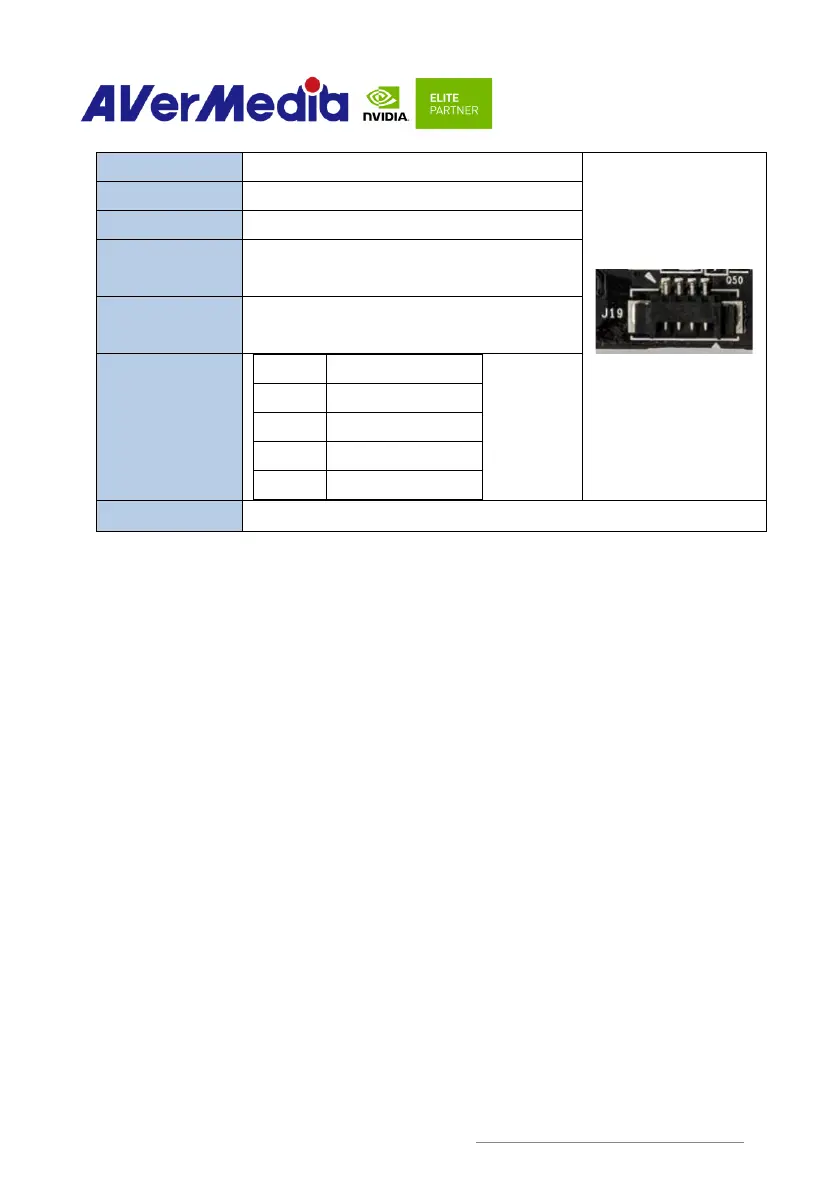

3.13 Fan Power connector
Function
Fan Power Connector
Location
J19
Type Description
WAFER_1*4PIN_1.25 ㎜_90°
Manufacturer
and Part Number
ACES 50271-0040N-001_BLACK
Mating
Connector
ACES 50276-004H0H0-001
Pinout
Pin #
Description
PIN 1
GND
PIN 2
+5V Power
PIN 3
FAN_TACH
PIN 4
FAN_PWM
Remarks
None
