D115W Series User Manual https://www.avermedia.com/professional/

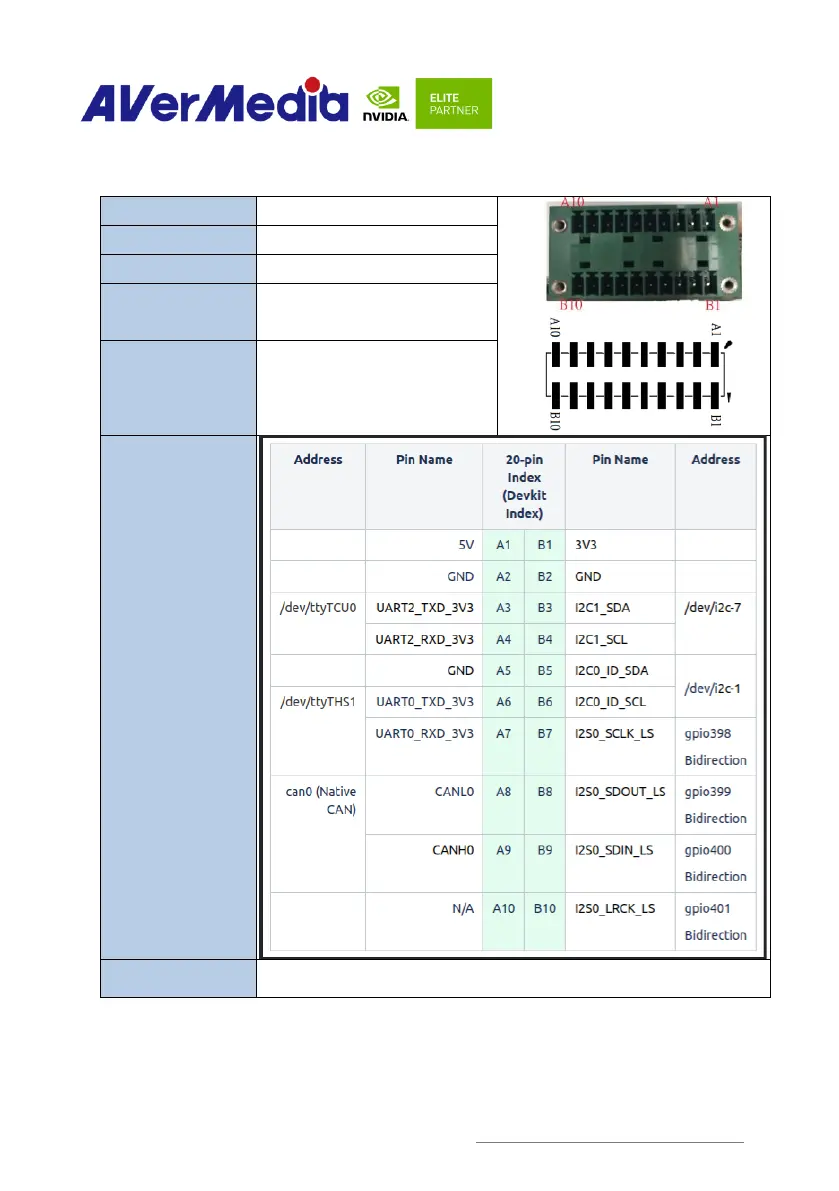

3.12 20-Pin GPIO expansion

Function

General-purpose input/output

Location

J18

Type Description

Expansion I/O Connector

Manufacturer and

Part Number

ME252-35020-1

Mating Connector

20-Pin GPIO expansion

Pinout

Remarks

GPIO uses 3.3V
