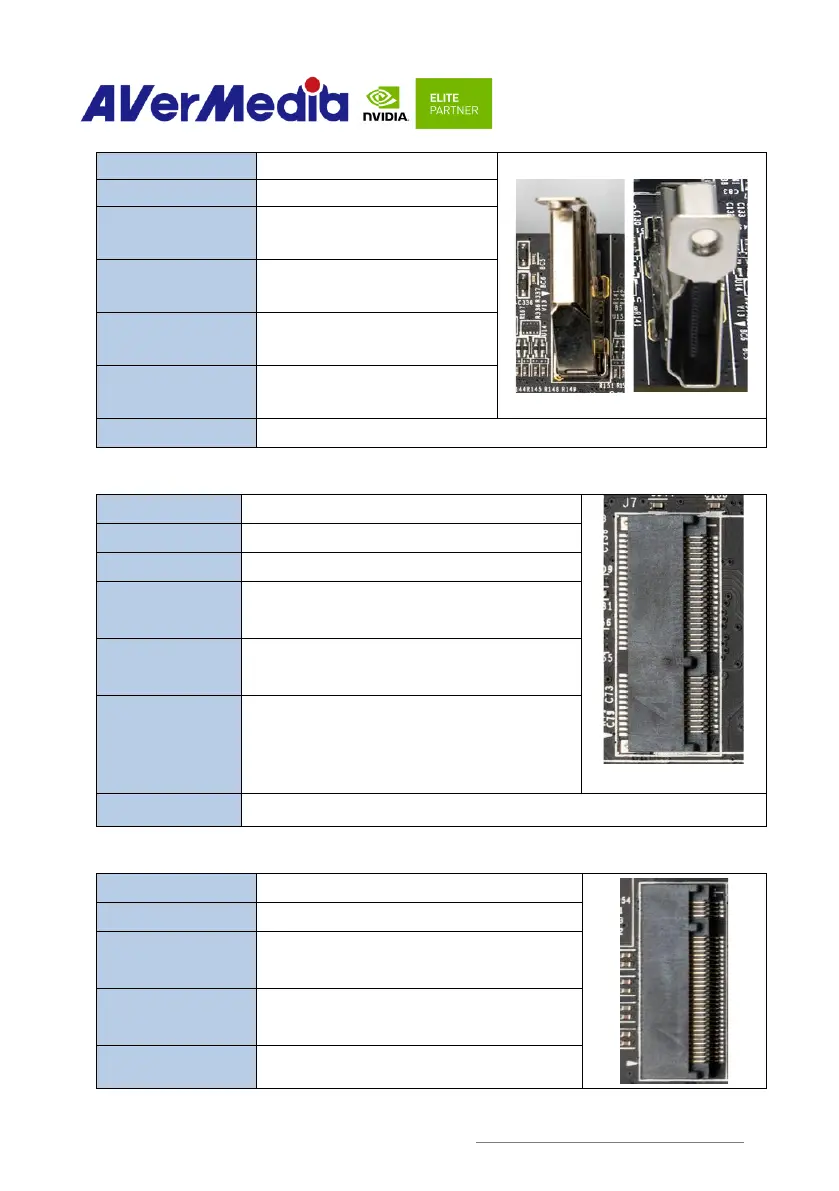

3.5 HDMI OUTPUT
Function
HDMI output connector
Location
J6
Type Description
HDMI Type-A female
connector
Manufacturer and
Part Number
Compupack,
ACNHM220028-001
Mating Connector
Any HDMI standard Type-A
interface cable or device.
Pinout
Please refer to HDMI
standard.
Remarks
None
3.6 M.2 E key 2230
Function
M.2 E key
Location
J7
Type Description
SOCKET_M.2-KEY E_75PIN_90°_SMD
Manufacturer
and Part Number
宏致_ACES
51750-0750P-005
Mating
Connector
Any M.2 E key 2230 card standard interface
device.
Pinout
Please refer to M.2 E key card standard for
the pinout details.
Remarks
None
3.7 M.2 M key 2280
Function
M.2 M key
Location
J8
Type Description
SOCKET_M.2-KEY
M_75PIN_90°_SMD
Manufacturer and
Part Number
宏致_ACES
51757-0750C-012_P0.5 ㎜-H5.5 ㎜
Mating Connector
Any M.2 M key 2280 card standard
interface device.
