D115W Series User Manual https://www.avermedia.com/professional/

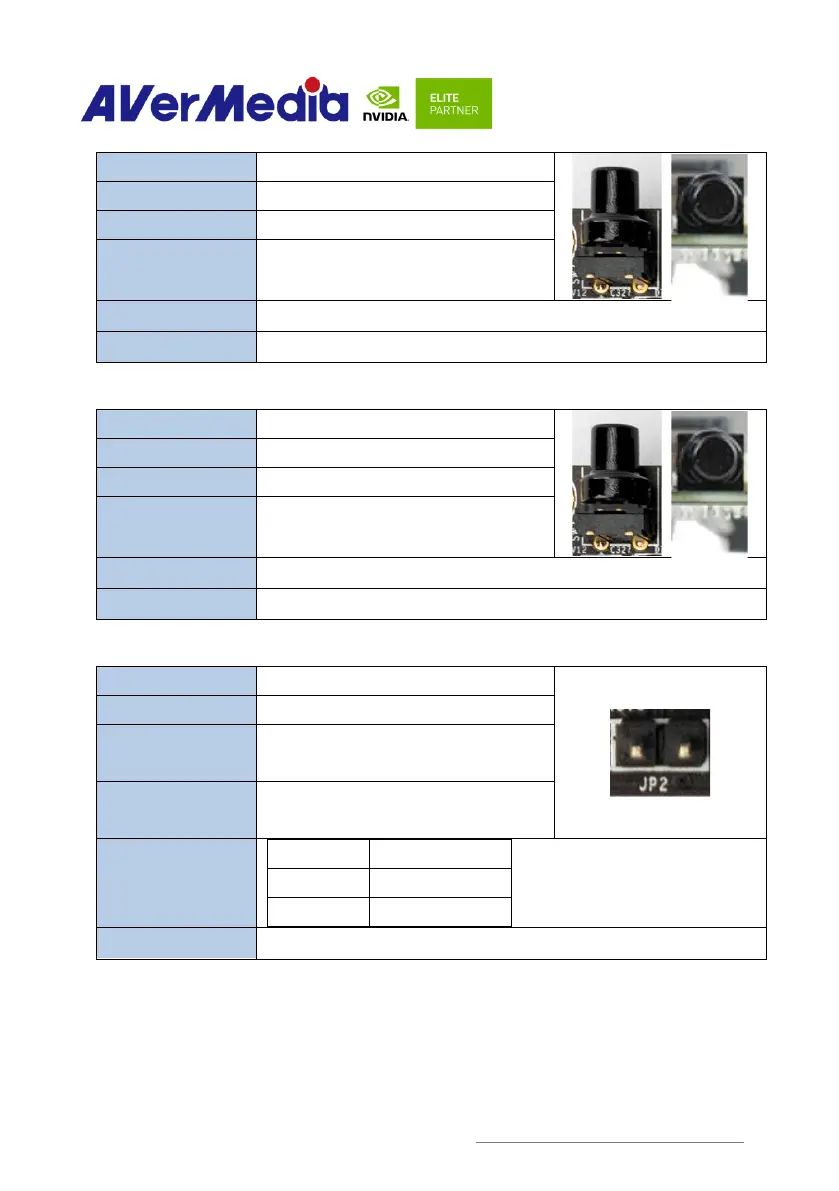

3.16 power Button

Function

Power recovery

Location

SW3

Type Description

Button

Manufacturer and

Part Number

冠泰 Champway,

LS67AK-NBR-A-R2KA9

Pinout

N/A

Remark

None

3.17 Recover Button

Function

Recover button

Location

SW4

Type Description

Button

Manufacturer and

Part Number

冠泰 Champway,

LS67AK-NBR-A-R2KA9

Pinout

N/A

Remark

None

3.18 WDT function

Function

WDT function

Location

JP2

Type Description

HEADER_PIN_1*2PIN_2.54 ㎜

_180°_DIP

Manufacturer and

Part Number

頻銳_210-81-02GB01

Pinout

Pin 1,2

Description

Open

WDT enable

Short

WDT disable

Remark

None
