D115W Series User Manual https://www.avermedia.com/professional/
Pinout
Please refer to M.2 M key card standard
for the pinout details.
Remarks
None

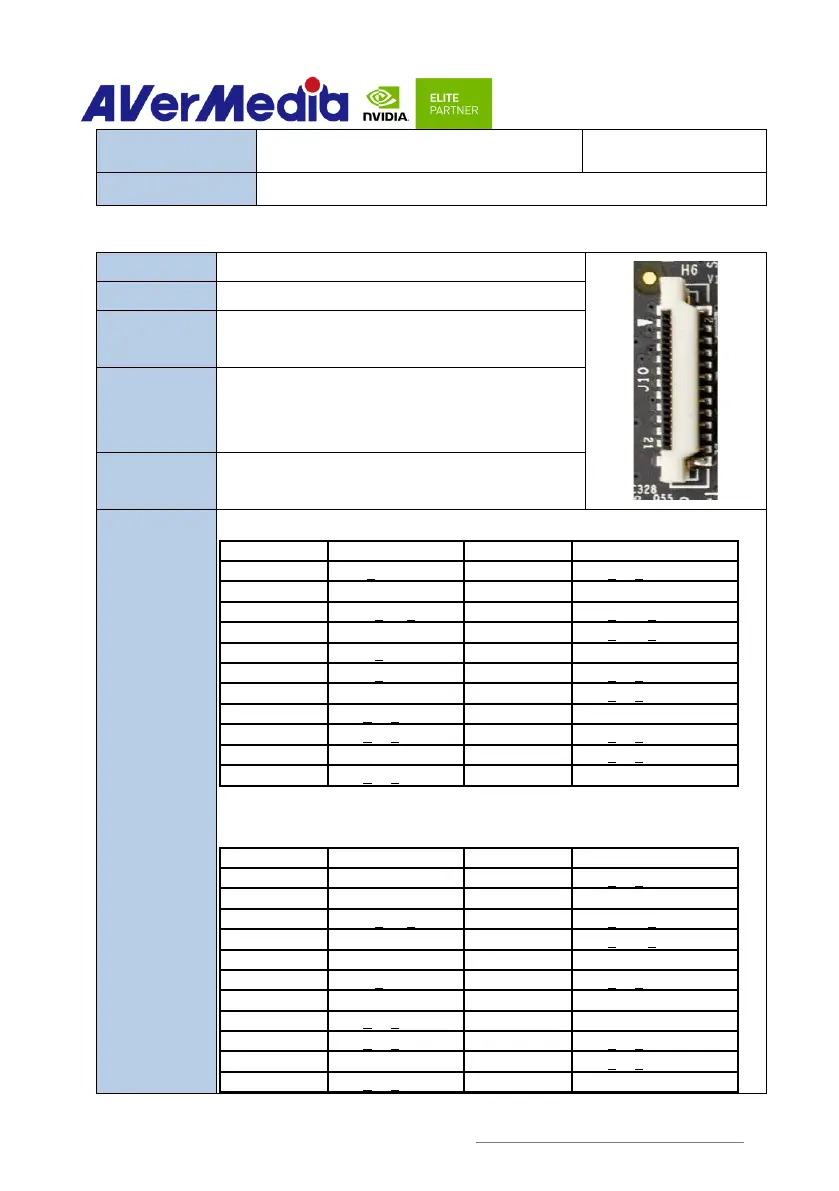

3.8 MIPI CSI-2 DPHY Lanes
Function
MIPI camera module connector
Location
J10 , J11
Type
Description
ZIF FPC Conn._22PIN_0.5 ㎜_90°
Manufacturer
and Part
Number
宏致_ACES
50554-02241-003
Mating
Connector
4 Lane MIPI CSI-2 camera connector (22Pin)
Pinout
J10
PIN#
Description
PIN#
Description
Pin1
+3V3_MIPI
Pin12
CSI1_D0_N
Pin2
CAM0_I2C_SDA
Pin13
GND
Pin3
CAM0_I2C_SCL
Pin14
CSI0_CLK_P
Pin4
GND
Pin15
CSI0_CLK_N
Pin5
CAM0_MCLK
Pin16
GND
Pin6
CAM0_/PWDN
Pin17
CSI0_D1_P
Pin7
GND
Pin18
CSI0_D1_N
Pin8
CSI1_D1_P
Pin19
GND
Pin9
CSI1_D1_N
Pin20
CSI0_D0_P
Pin10
GND
Pin21
CSI0_D0_N
Pin11
CSI1_D0_P
Pin22
GND
J11
PIN#
Description
PIN#
Description
Pin1
+3V3_MIPI
Pin12
CSI3_D0_N
Pin2
CAM1_I2C_SDA
Pin13
GND
Pin3
CAM1_I2C_SCL
Pin14
CSI2_CLK_P
Pin4
GND
Pin15
CSI2_CLK_N
Pin5
CAM1_MCLK
Pin16
GND
Pin6
CAM1_/PWDN
Pin17
CSI2_D1_P
Pin7
GND
Pin18
CSI2_D1_N
Pin8
CSI3_D1_P
Pin19
GND
Pin9
CSI3_D1_N
Pin20
CSI2_D0_P
Pin10
GND
Pin21
CSI2_D0_N
Pin11
CSI3_D0_P
Pin22
GND
