D115W Series User Manual https://www.avermedia.com/professional/

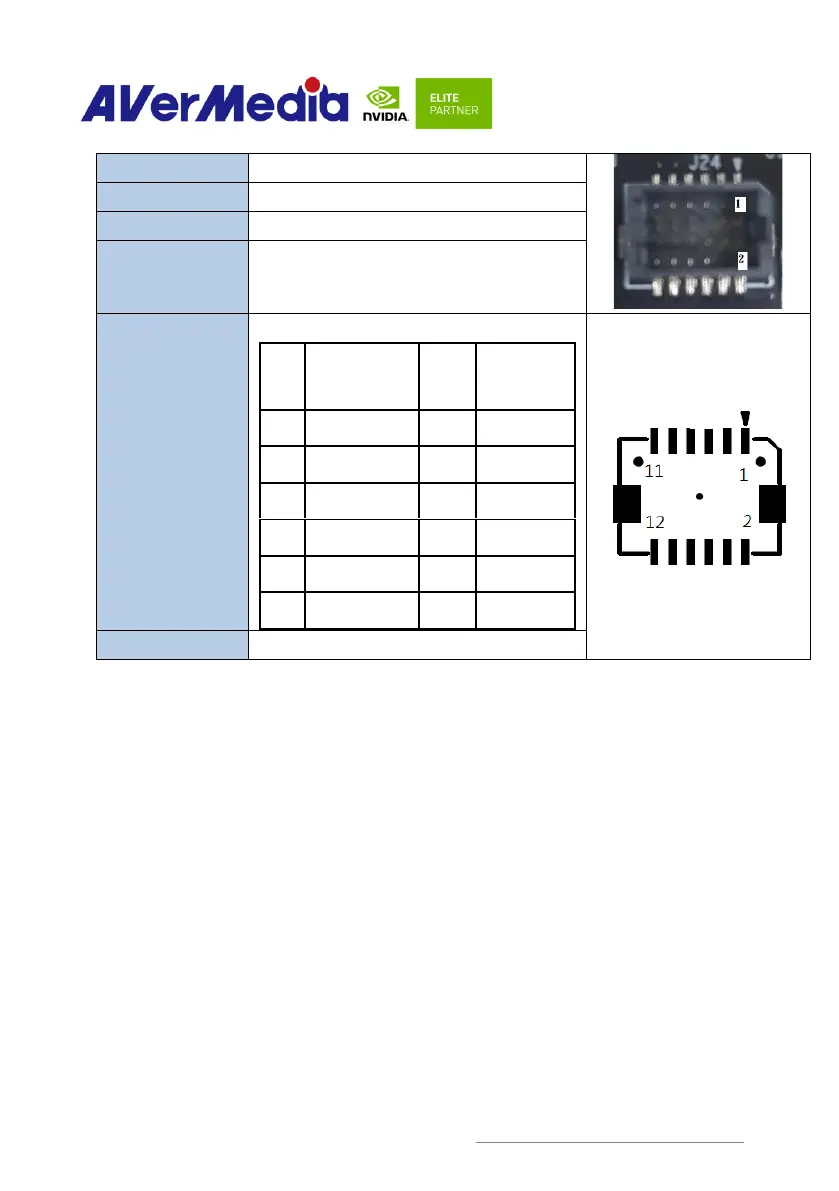

3.19 PSE Board Connector.
Function
PSE Board Connector.
Location
J24
Type Description
WAFER_2*6PIN_1 ㎜_180°_SMD
Manufacturer and
Part Number
ACES
50238-01241-001
Pinout
PIN#
Description
PIN#
Description
Pin1
PWR_IN
Pin2
GND
Pin3
PWR_IN
Pin4
GND
Pin5
54V
Pin6
SYS_RST*
Pin7
54V
Pin8
I2C1_SCL *
Pin9
PortN_OUT0
Pin10
I2C1_SDA
Pin11
POE_P0
Pin12
3V3
Remarks
NA
Other Switches and Jumpers
Other switches and jumpers listed on the boards but not mentioned in this manual are reserved
for the internal use by AVerMedia. They are not open to the client application.
