NVIDIA DGX H100 User Guide

1.2. Network Connections, Cables, and Adaptors

This section provides information about network connections, cables, and adaptors.

1.2.1. Network Ports

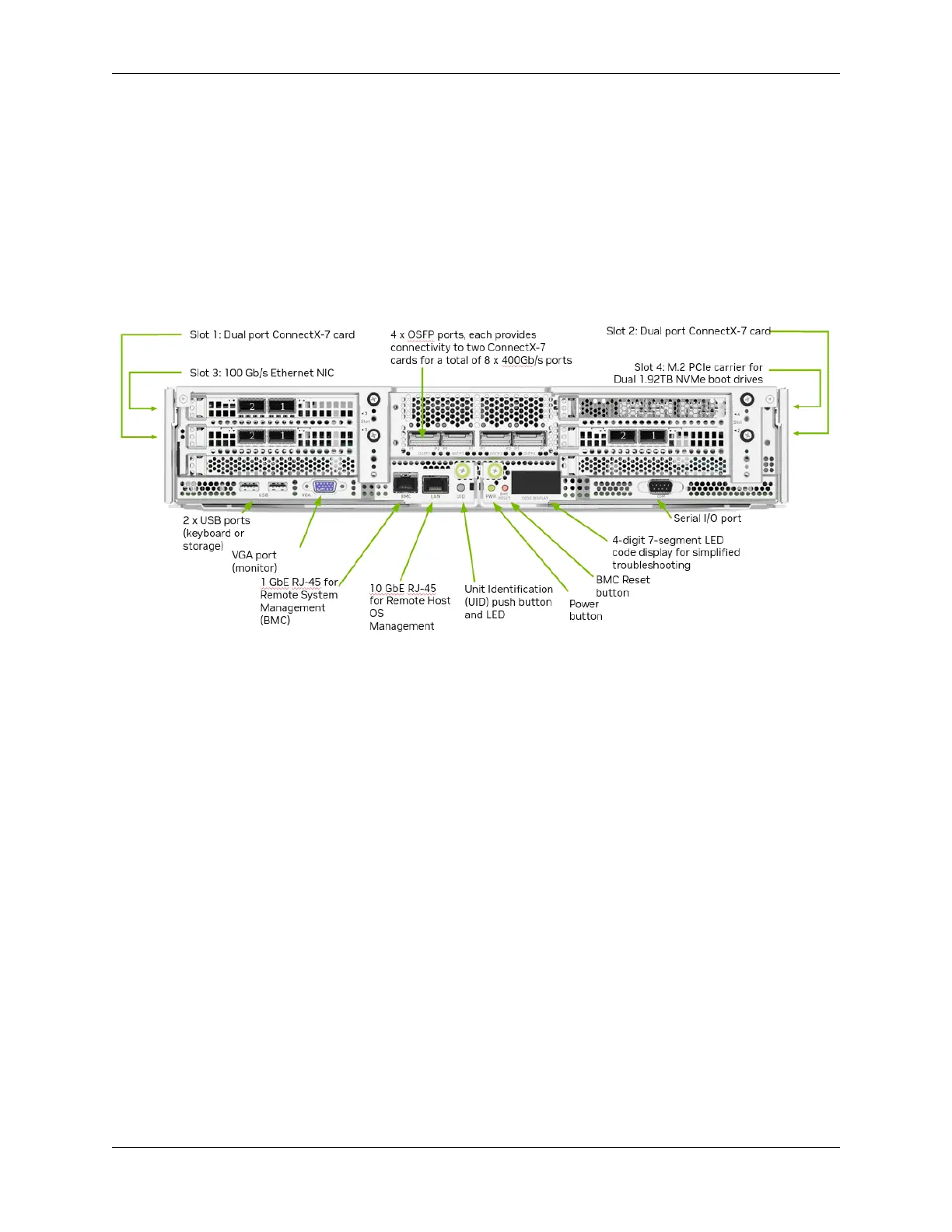

Here is an image that shows the network ports on a DGX H100 system.

1.2. Network Connections, Cables, and Adaptors 11
