Nvidia Jetson Orin Nano Series User Manual

Power
PRELIMINARY INFORMATION
Jetson Orin NX Series and Jetson Orin Nano Series DG-10931-001_v1.1 | 19

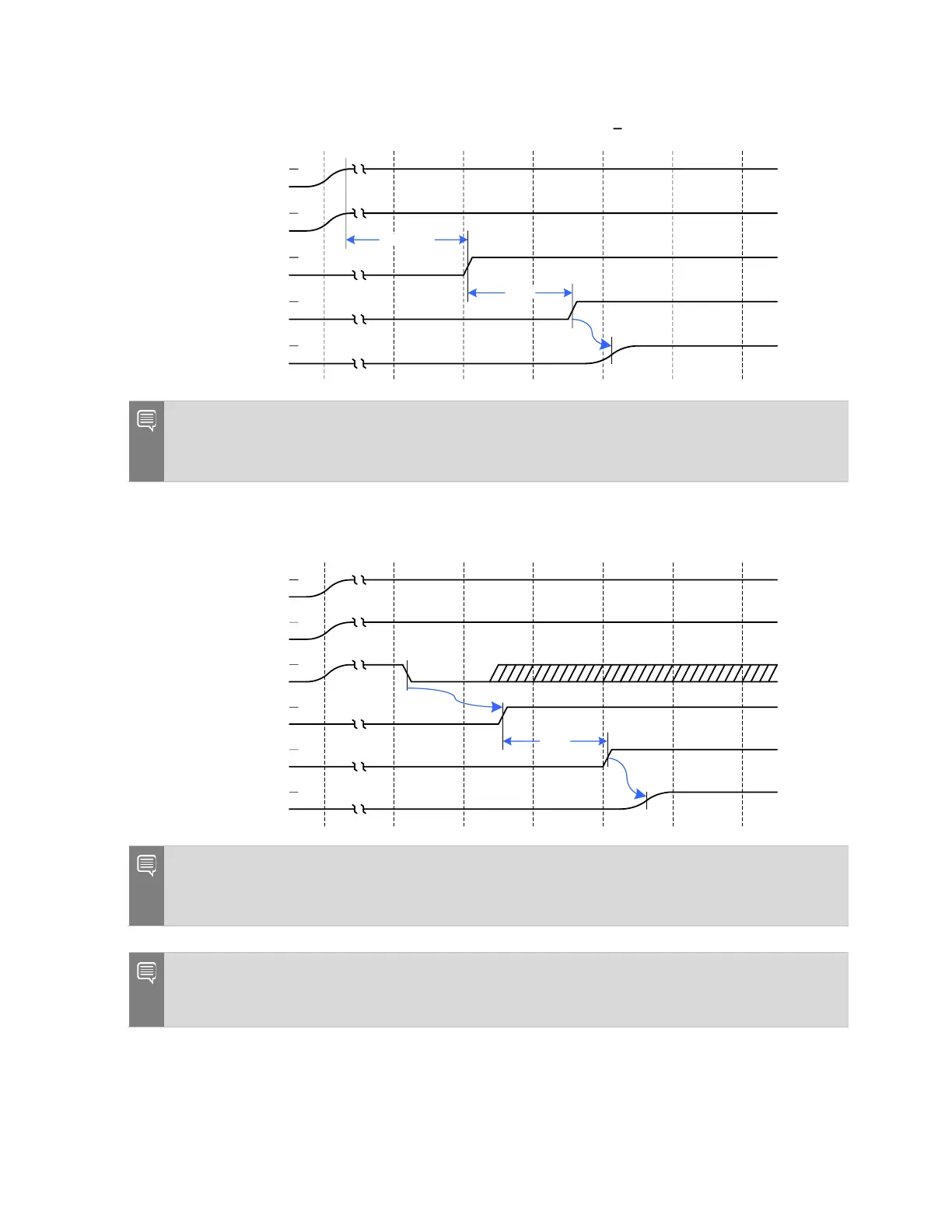

Figure 6-3. Power Up Sequence No Power Button Auto Power On
POWER_EN
VDD_IN
Carrier Board Supplies
SYS_RESET*
SHUTDOWN_REQ*
~80ms
400ms min.
Notes:
1. SHUTDOWN_REQ* is not driven during power up. The signal is pulled to VDD_IN.
2. SYS_RESET* is driven by the Power Sequencer or PMIC during power up.
Figure 6-4. Power Up Sequence with Power Button
POWER_EN
VDD_IN
Carrier Board Supplies
SYS_RESET*
SHUTDOWN_REQ*
Power Button
~80ms
Notes:
1. SHUTDOWN_REQ* is not driven during power up. The signal is pulled to VDD_IN.
2. SYS_RESET* is driven by the Power Sequencer or PMIC during power up.
Note: For designs that intend to follow the NVIDIA carrier board design and include the
EFM8SB10F2G-A-QFN20 MPU for Power Button control, see 6.1.1 Power Button Supervisor MCU
Power-On.

Nvidia Jetson Orin Nano Series Specifications

General

Memory	8 GB 128-bit LPDDR5
AI Performance	40 TOPS (INT8)
Operating Temperature	-25°C to 80°C
Module Size	69.6 mm x 45 mm
GPU	NVIDIA Ampere architecture with 512 CUDA cores and 16 Tensor Cores
CPU	6-core Arm Cortex-A78AE v8.2 64-bit CPU
Storage	16GB eMMC 5.1
Connectivity	Gigabit Ethernet
Other I/O	I2C, SPI, UART
Operating System Support	Ubuntu
CSI Camera	2x MIPI CSI-2
