Nvidia Jetson Orin Nano Series User Manual

PRELIMINARY INFORMATION
Jetson Orin NX Series and Jetson Orin Nano Series DG-10931-001_v1.1 | 43
Chapter 8. Gigabit Ethernet
Orin module integrates a Gigabit Ethernet PHY. The magnetics and RJ45 connector are
implemented on the carrier board.
Table 8-1. Orin Module Gigabit Ethernet Pin Descriptions
Pin #
Module Pin
Name
Orin Signal
Usage and Description
Recommended
Usage
Direction
Pin Type
194
GBE_LED_ACT
Ethernet Activity LED (Yellow)
LAN
Output
188
GBE_LED_LIN
K
Ethernet Link LED (Green)
Output
184
GBE_MDI0_N
GbE Transformer Data 0
Bidir
MDI
186
GBE_MDI0_P
190
GBE_MDI1_N
GbE Transformer Data 1
192
GBE_MDI1_P
196
GBE_MDI2_N
GbE Transformer Data 2
198
GBE_MDI2_P
202
GBE_MDI3_N
GbE Transformer Data 3
204
GBE_MDI3_P
Notes: In the Direction column, Output is from Orin module. Input is to Orin module. Bidir is for Bidirectional signals.

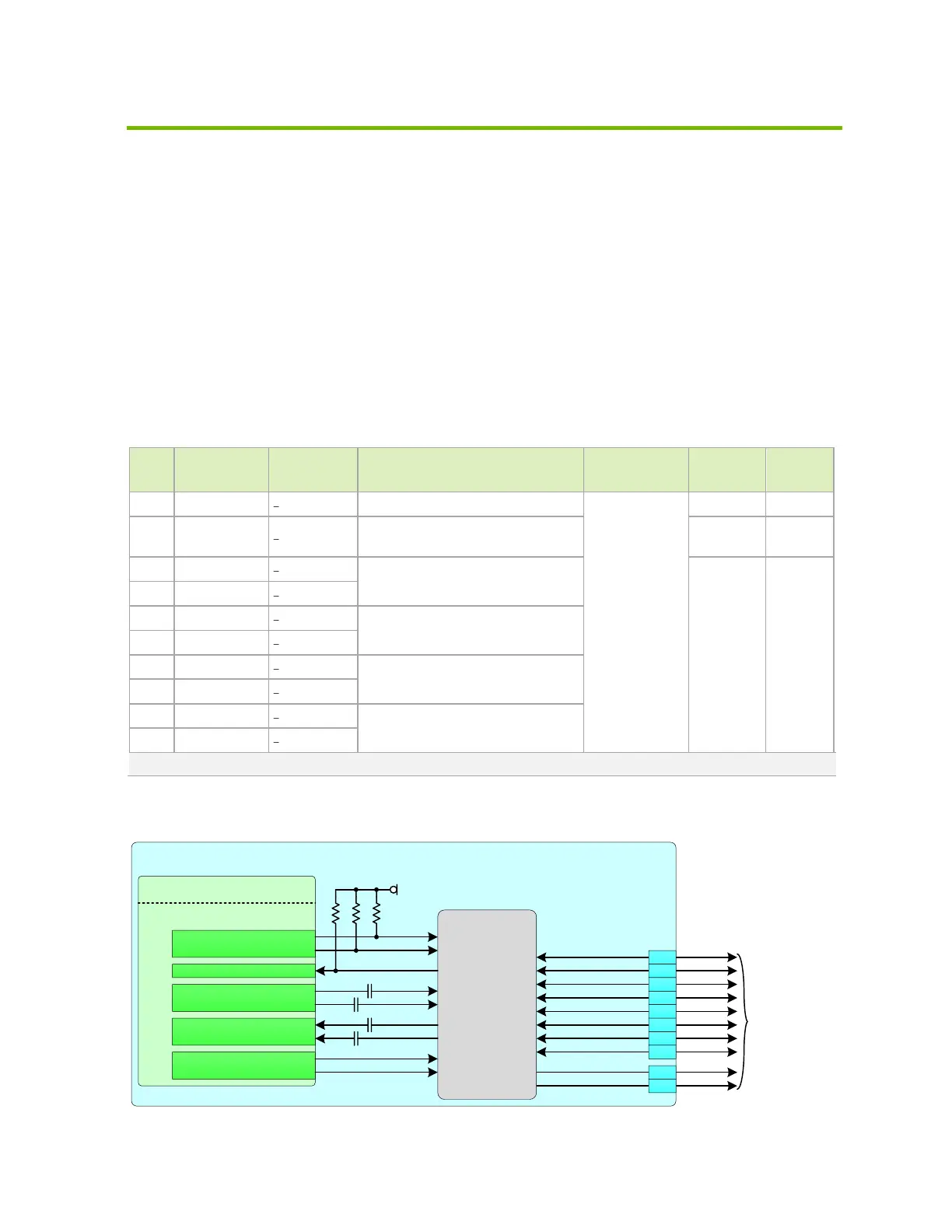

Figure 8-1. Orin Module Ethernet Connections
Jetson
SoC
GBE_MDI0_P
GBE_MDI0_N
GBE_MDI1_P
GBE_MDI1_N
GBE_MDI2_P
GBE_MDI2_N
GBE_MDI3_P
GBE_MDI3_N
GBE_LED_ACT
GBE_LED_LINK
To Magnetics/
RJ45 Connector
186
184
192
190
198
196
204
202
194
188
UPHY2
GbE
PHY
SF_PCIE8_CLK_N
SF_PCIE8_CLK_P
HS_UPHY2_L3_RX_N
HS_UPHY2_L3_RX_P
HS_UPHY2_L3_TX_N
HS_UPHY2_L3_TX_P
GP189_PCIE8_CLKREQ_N
GP190_PCIE8_RST_N
3.3V
4.7k
47k
GP185_PCIE_WAKE_N
47k
