2-3-2 Install Socket AM2 Supported AMD Processor
This motherboard provides a 940-pin surface mount, Zero Insertion Force (ZIF) socket,
referred to as the mPGA940 socket supports AMD Athlon64 processor in the 940 Pin package
utilizes Flip-Chip Pin Grid Array package technology.
The CPU that comes with the motherboard should have a cooling FAN attached to prevent
overheating. If this is not the case, then purchase a correct cooling FAN before you turn on
your system.
WARNING!
Be sure that there is sufficient air circulation across the processor’s
heatsink and CPU cooling FAN is working correctly, otherwise it may
cause the processor and motherboard overheat and damage, you may install
an auxiliary cooling FAN, if necessary.

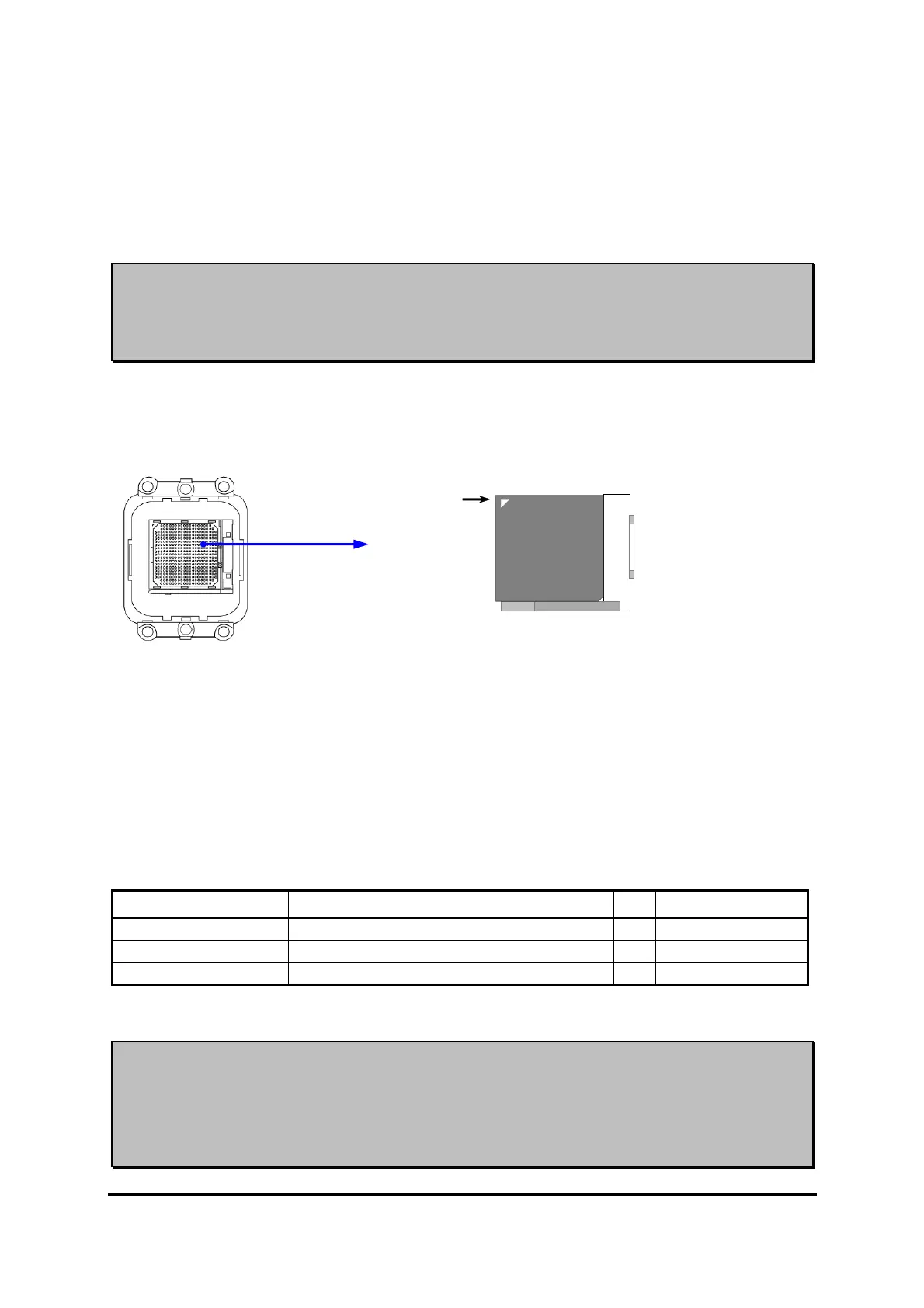

To install a CPU, first turn off your system and remove its cover. Locate the ZIF socket and
open it by first pulling the level sideways away from the socket then upward to a 90-degree
angle. Insert the CPU with the correct orientation as shown below. The notched corner
should point toward the end of the level. Because the CPU has a corner pin for two of the
four corners, the CPU will only fit in the orientation as shown.
CPU ZIF mPGAB Socket
Colden Arrow
Socket AM2
When you put the CPU into the ZIF socket, do not need force to insert of the CPU, and then
press the level to locate position slightly without any extra force.
2-4 Install Memory
The motherboards provide two 240-pin DDRII DUAL INLINE MEMORY MODULES
(DIMM) sites for DDRII memory expansion available from minimum memory size of
128MB to maximum memory size of 4GB DDRII SDRAM.
Valid Memory Configurations of 2-DIMM Design Motherboard
Bank 240-Pin DIMM PCS Total Memory
Bank 0, 1 (DIMM1) DDRII400/DDRII533/DDRII667/DDRII800 X1
128MB∼2GB
Bank 2, 3 (DIMM2) DDRII400/DDRII533/DDRII667/DDRII800 X1
128MB∼2GB
Total System Memory (Max. 4GB) 2
128MB∼4GB
Recommend DIMM Module Combination
1. One DIMM Module ----Plug in DIMM1
2. Two DIMM Modules---Plug in DIMM1 and DIMM2 for Dual channel function of
4-DIMM Design motherboard and Plug in DIMM1 and DIMM2 for Dual channel function
of 2-DIMM Design motherboard.
