18

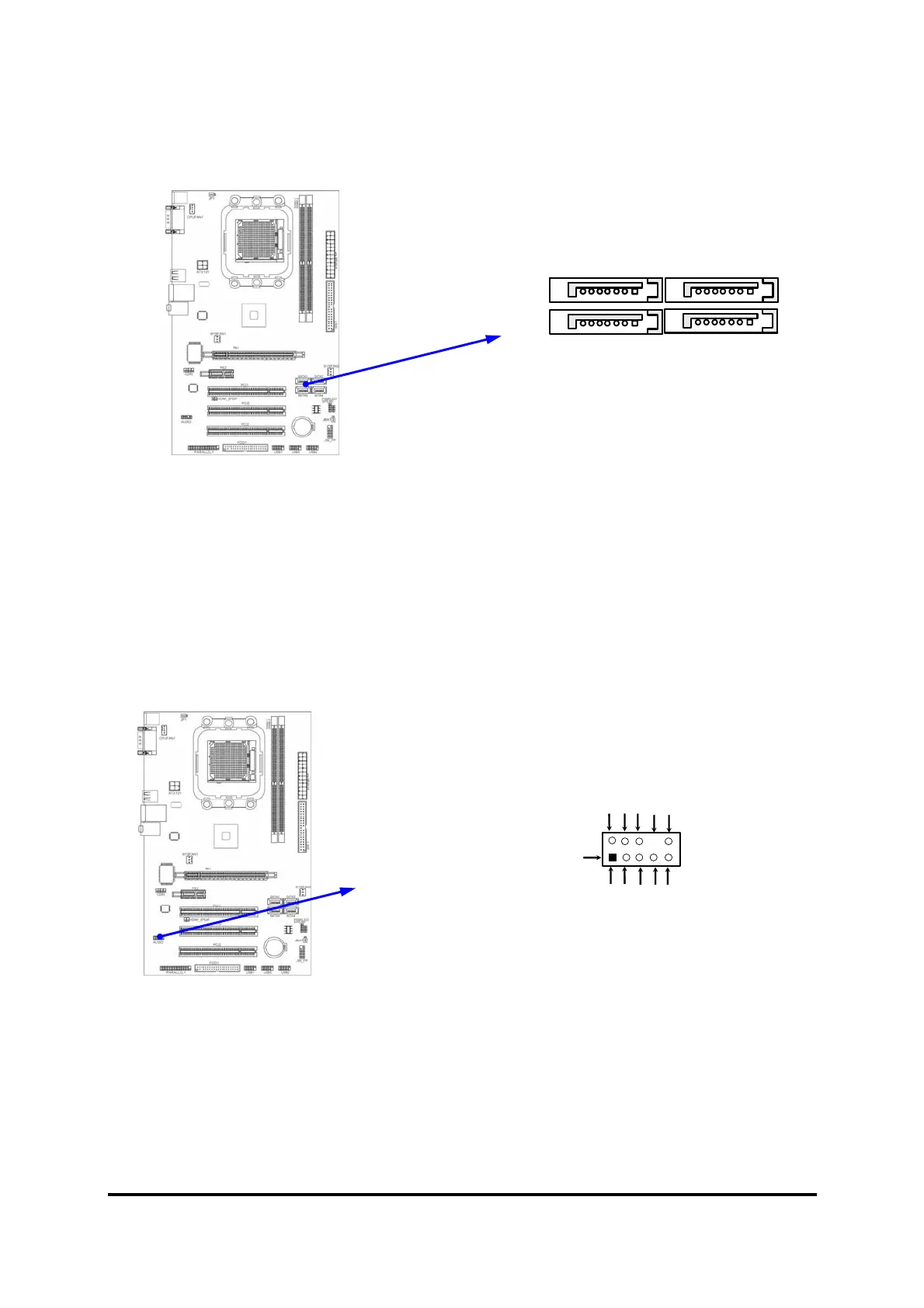

(9) Serial-ATA Port connector:
SATA1 / SATA2/SATA3/SATA4 (ooptional)
This connector supports the provided Serial ATA and Serial ATA2 IDE hard disk cable
to connecting the motherboard and serial ATA hard disk.
(10) D-Sub 15-pin Connector: VGA
VGA is the 15-pin D-Subminiature female connector, it is for the display devices, such
as the CRT monitor, LCD monitor and so on.
2-6-2 Headers
(1) Line-Out/MIC Header for Front Panel (9-pin): AUDIO1
This header connects to Front Panel Line-out, MIC connector with cable.
Serial-ATA1,2,3,4 Compatible Connectors
SATA1
SATA3
SATA4
SATA2
Line-Out, MIC Headers
AUDIO
Pin 1
AUD-Lineout2-L
AUD-MIC-R
AUD-Lineout2-R
SENSE-SEND
GND
SENSE2-RETUR
PRESENCE
2
9
10
KEY
AUD-MIC-L
SENSE1-RETURN
