16

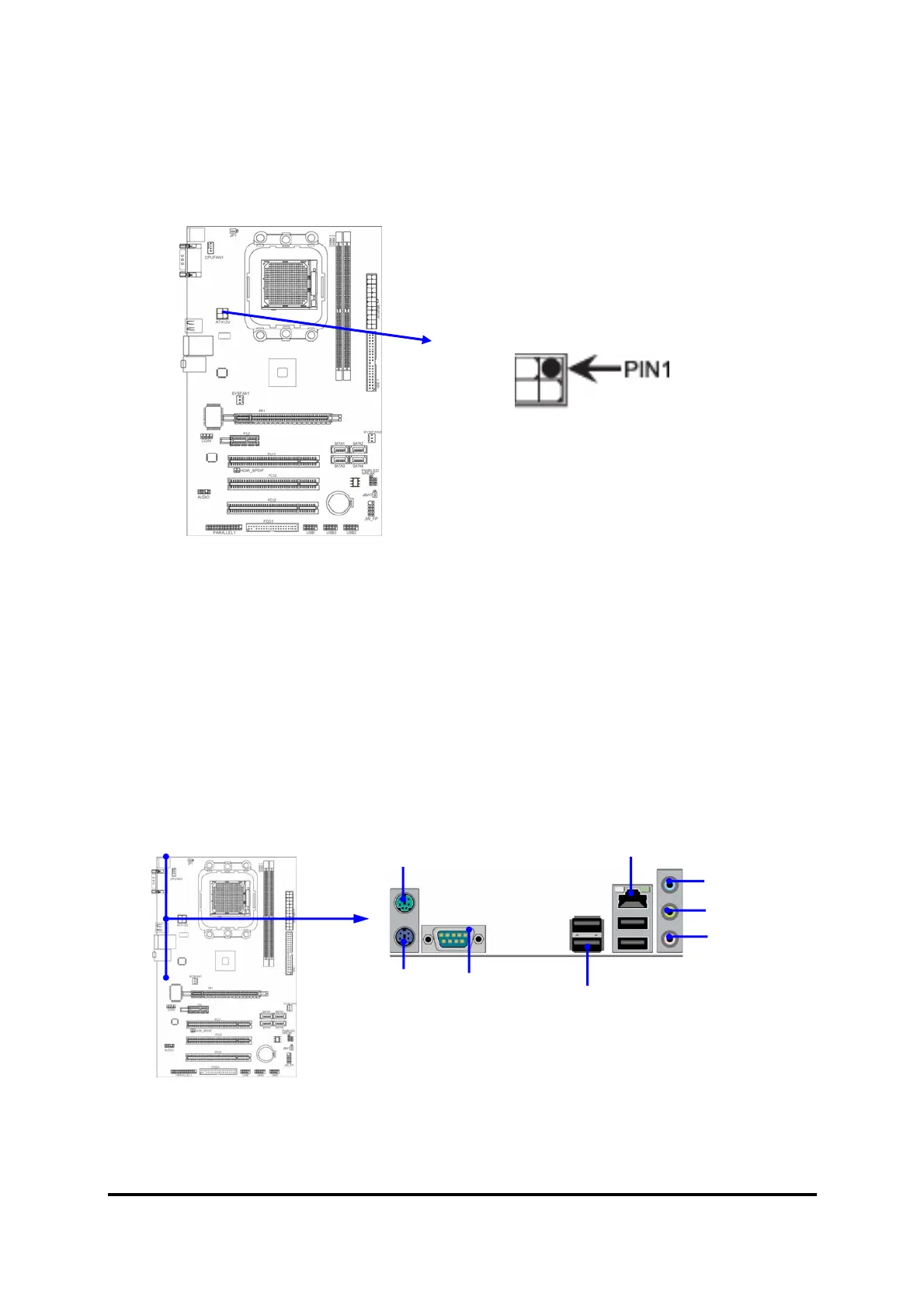

(2) ATX 12V Power Connector (4-pin block) : ATX12V1
This is a new defined 4-pins connector that usually comes with ATX Power Supply.
The ATX Power Supply which fully supports AM2 processor must including this
connector for support extra 12V voltage to maintain system power consumption.
Without this connector might cause system unstable because the power supply can not
provide sufficient current for system.
(3) PS/2 Mouse & PS/2 Keyboard Connector: KB1
The connector is for PS/2 keyboard and PS/2 Mouse.
(4) USB Port connector:
The connectors are 4-pin connector that connects USB devices to the system board.
(5) LAN Port connector: UL1
This connector is standard RJ45 connector for Network
The USBLAN1 support 10M/100/1000Mb(optional) data transfer rate
(6)
Audio Line-In,
Lin
-Out, MIC Connector: SURROUND1 / CN1
This Connector are 3 phone Jack for LINE-OUT, LINE-IN, MIC
Line-in: (BLUE) Audio input to sound chip
Line-out: (GREEN) Audio output to speaker
MIC: (PINK) Microphone Connector
PS/2
Mouse
USB1
COM
Connector
Line-IN
MIC-IN
PS/2
Keyboard
Line-OUT
RJ45
