20

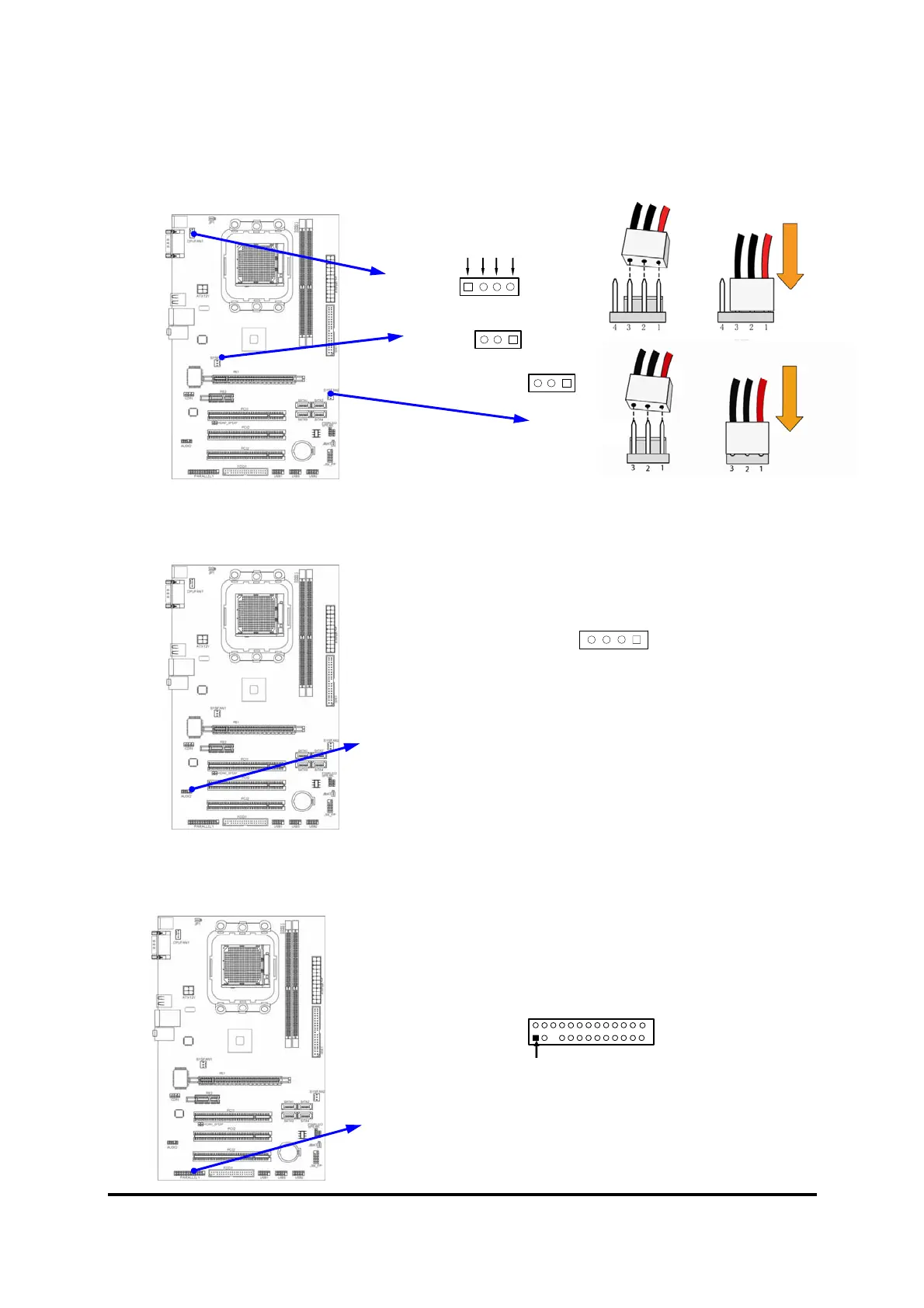

(8) FAN Power Headers: SYSFAN1, CPUFAN, SYS FAN (3-pin)
These connectors support cooling fans of 350mA (4.2 Watts) or less, depending on the
fan manufacturer, the wire and plug may be different. The red wire should be positive,
while the black should be ground. Connect the fan’s plug to the board taking into
consideration the polarity of connector.
(9) CD Audio-In Headers (4-pin) : CDIN
CDIN are the connectors for CD-Audio Input signal. Please connect it to CD-ROM
CD-Audio output connector.
(10) Parallel Port Connector (25-pin female): PARALLEL1
The On-board Parallel Port can be disabled through the BIOS SETUP.
CD Audio-In Headers
CDIN
4 1
Pin 1
PARALLEL Connector
FAN Power Headers
CPUFAN
1
4
GND
+12V
CPUFAN IN
CPUFAN OUT
SYSFAN1
1
3
SYSFAN2
1
3
To Next Page
