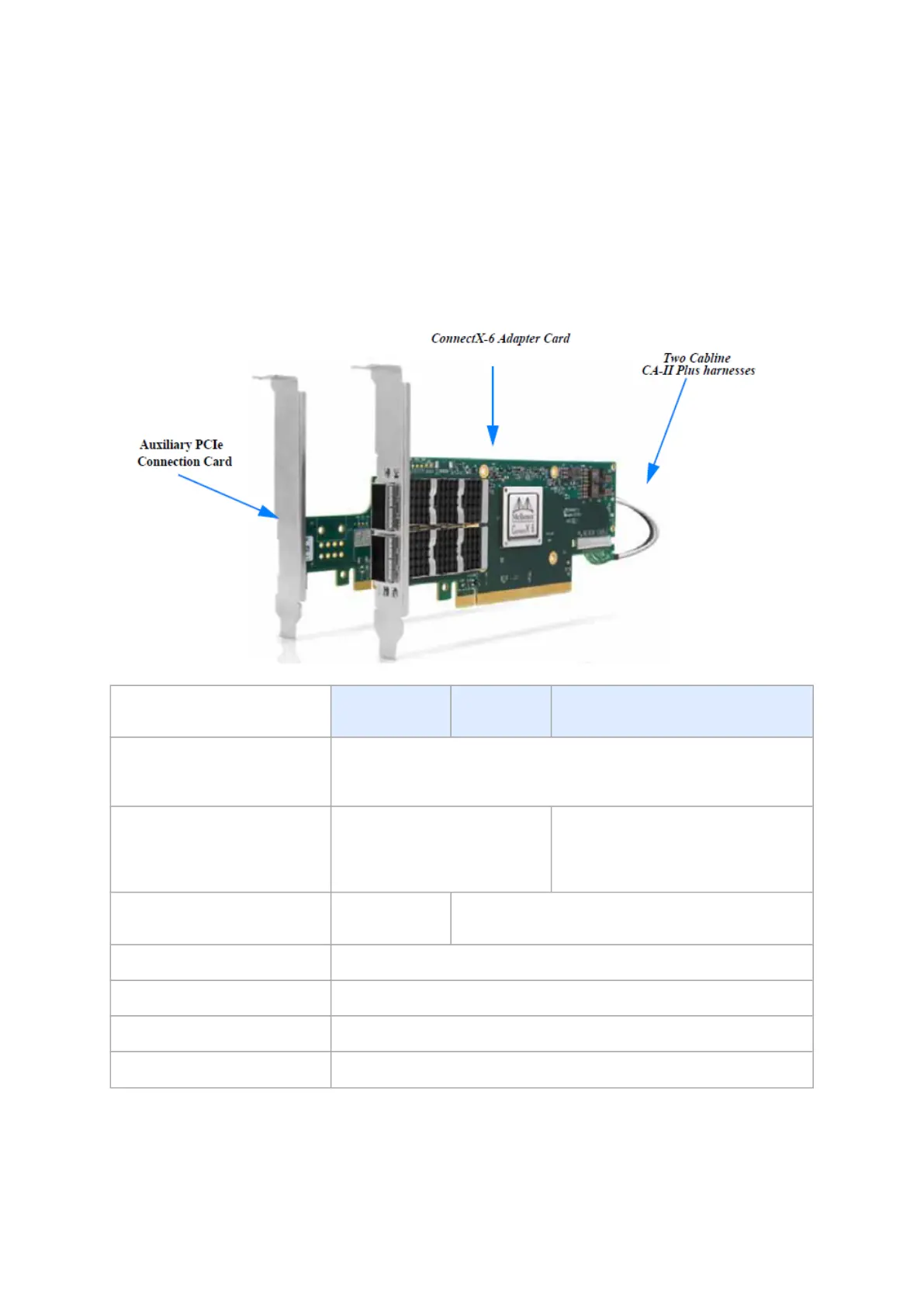

ConnectX-6 Socket Direct cards are available in two configurations: Dual-slot Configuration (2x PCIe
x16) and Single-slot Configuration (2x PCIe x8).
ConnectX-6 Dual-slot Socket Direct Cards (2x PCIe x16)
In order to obtain 200Gb/s speed, Mellanox offers ConnectX-6 Socket Direct that enable 200Gb/s
connectivity also for servers with PCIe Gen 3.0 capability. The adapter’s 32-lane PCIe bus is split into
two 16-lane buses, with one bus accessible through a PCIe x16 edge connector and the other bus
through an x16 Auxiliary PCIe Connection card. The two cards should be installed into two PCIe x16
slots and connected using two Cabline SA-II Plus harnesses, as shown in the below figure.
Part Number MCX654105A-
HCAT
MCX654106A-
HCAT
MCX654106A-ECAT
Form Factor/Dimensions Adapter Card: PCIe Half Height, Half Length / 167.65mm x 68.90mm
Auxiliary PCIe Connection Card: 5.09 in. x 2.32 in. (129.30mm x 59.00mm)
Two 35cm Cabline CA-II Plus harnesses
Data Transmission Rate Ethernet: 10/25/40/50/100/200
Gb/s
InfiniBand: SDR, DDR, QDR, FDR,
EDR, HDR100, HDR
Ethernet: 10/25/40/50/100 Gb/s
InfiniBand: SDR, DDR, QDR, FDR, EDR,
HDR100
Network Connector Type Single-port
QSFP56
Dual-port QSFP56
PCIe x16 through Edge Connector PCIe Gen 3.0 / 4.0SERDES@ 8.0GT/s / 16.0GT/s
PCIe x16 through Auxiliary Card PCIe Gen 3.0SERDES@ 8.0GT/s
RoHS RoHS Compliant
Adapter IC Part Number MT28908A0-XCCF-HVM
