Sync to an External Timing Source
Quadro Sync DU-06574-001_v01 | 21
Identify that the incoming signal is interlaced
Set a Sync Interval defining how many incoming external sync pulses need to be
received before the Quadro Sync board sends an internal pulse
● The default value is 0, meaning every external packet is sent internally
● Setting 1 will cause the Quadro Sync board to send every other received pulse
causing the internal sync pulses to run at half the speed of the external
Define a start Sync Delay in µSeconds between the external signal and internal sync
pulses
Synchronize to an External Sync Source for Windows
1. Open the NVIDIA Control Panel and select Synchronize Displays
2. Select “The timing server is On this
system” radio button

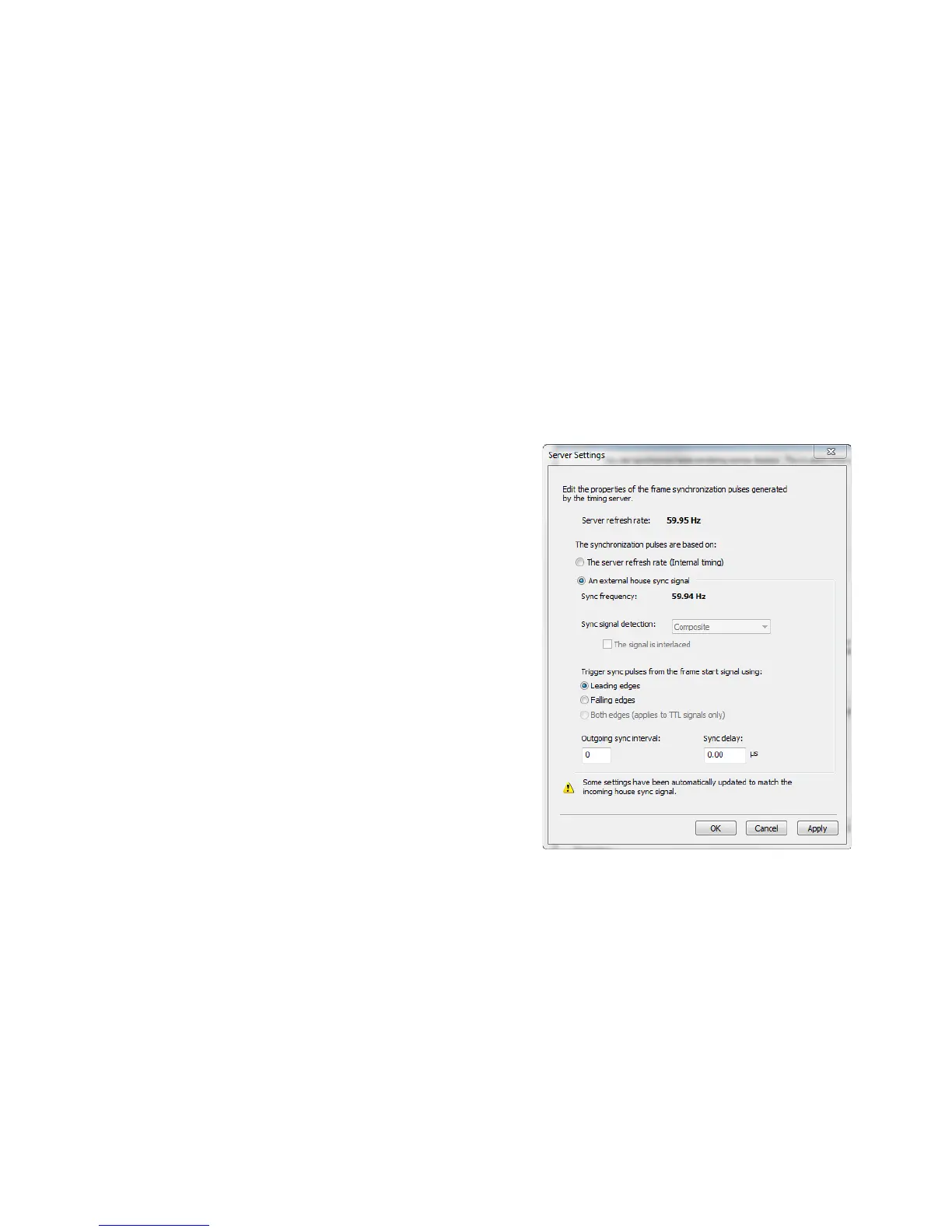

3. Click the Server Settings button
4. Select An external house sync signal
5. Adjust the other options as needed
6. Press OK
