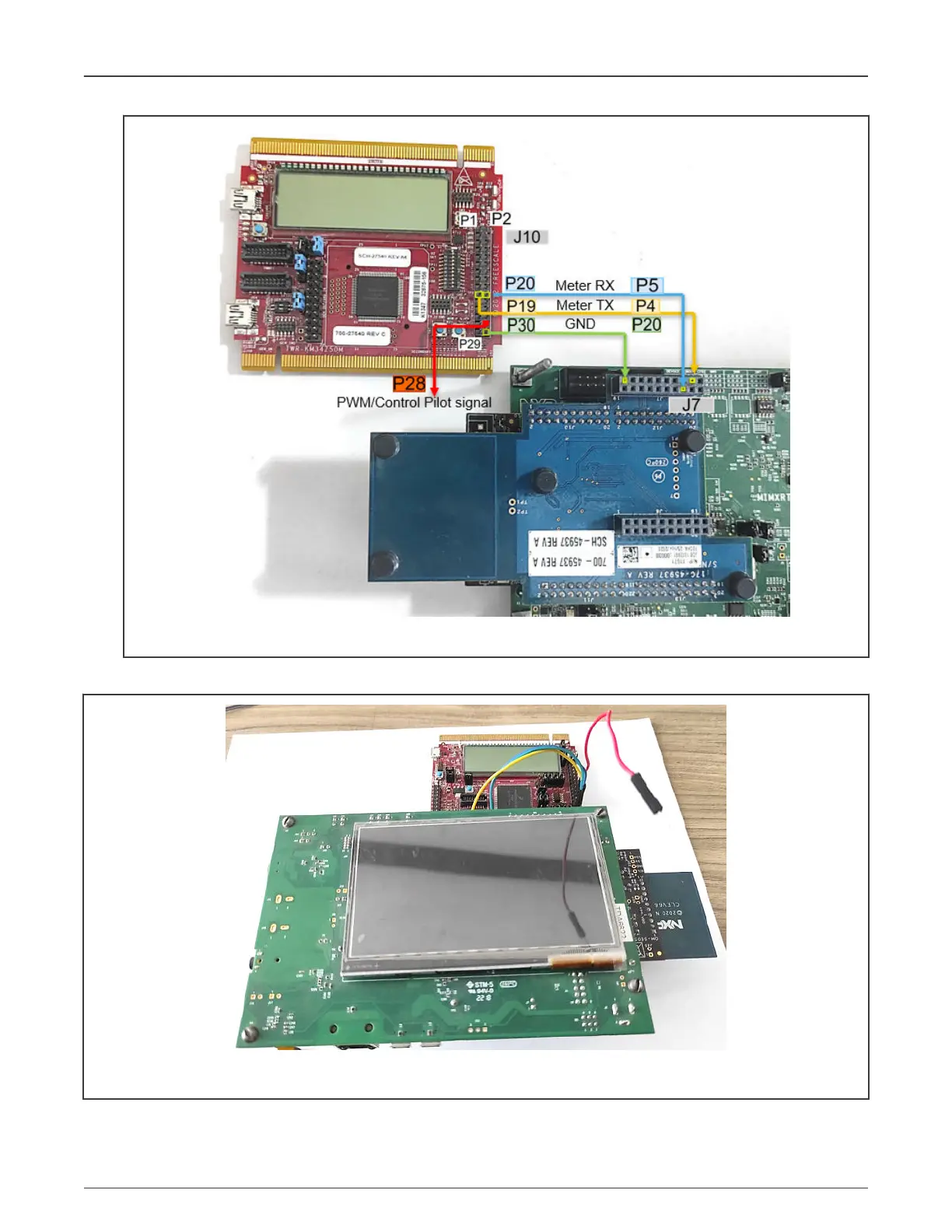

Figure 62. Wiring 50 MHz TWR-KM3x to the i.MX RT106x
Figure 63 shows all the boards assembled together.
Figure 63. Complete board assembly
NXP Semiconductors
Board setup, wiring, and assembly
NXP EasyEVSE EV Charging Station Development Platform User Guide, Rev. 0, 18 March 2022
User Guide 45 / 64
