Getting Started with NXP-based Wireless Modules on i.MX 8M Quad EVK Running Linux OS
3.4.5 Azurewave AW-CM358-uSD Wi-Fi module interface

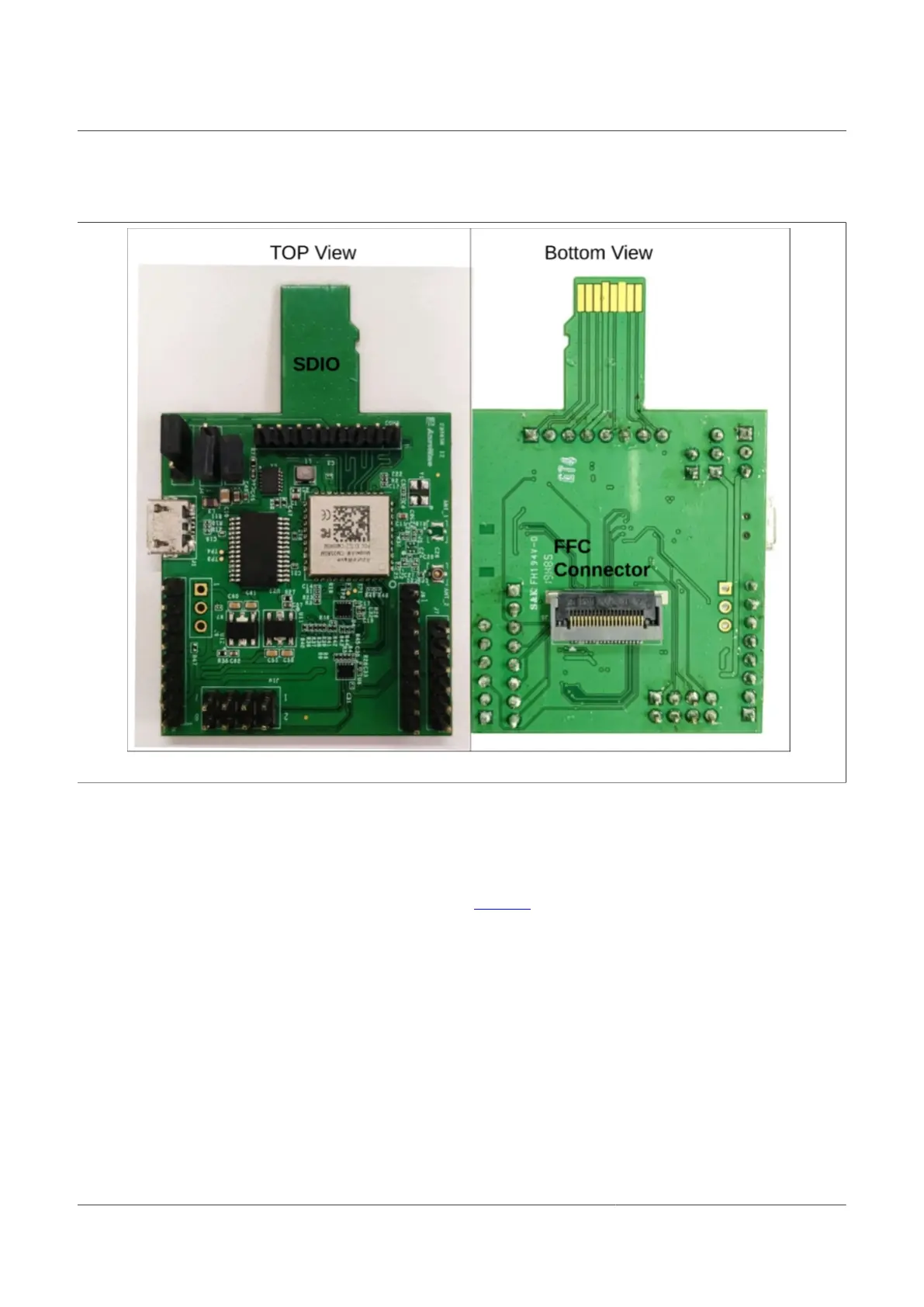

Figure 8. AzureWave AW-CM358-uSD module interface
3.4.6 Azurewave AW-CM358-uSD module jumpers and power supply
This section provides the jumper settings to configure the module with 1.8V SDIO voltage
level for Wi-Fi. Connect the jumper J2 between the 1 and 2 header pins to select the
SDIO module power source and connect the jumper J4 between the 1 and 2 header pins
for 1.8V SDIO voltage as shown in Figure 9.
