Installation: Power Wiring
36
D9-Power Feed Connections
Unified Power Package Standard Power Package
Main Power Input
208-230/3/60 460/3/60 208-230/3/60 460/3/60 Volt/Phase/Hz
Main Power Wire Min. Size
#2 #4 #2 #4 AWG
Ground Wire Min. Size
#6 #8 #6 #8 AWG
Main Power Cable Voltage Rating
600 Volts
Main Power Block Line Side Torque
375 in-lbs
Power Conduit Termination
1-1/2’ Female Thread
Backup Circuit Power Input
N/A
120/1/60 120/1/60 Volt/Phase/Hz
120v Power Wire Min. Size
#14 AWG
120v Power Cable Voltage Rating
600 Volts
120v Power Block Line Side Torque
17.7 in-lbs

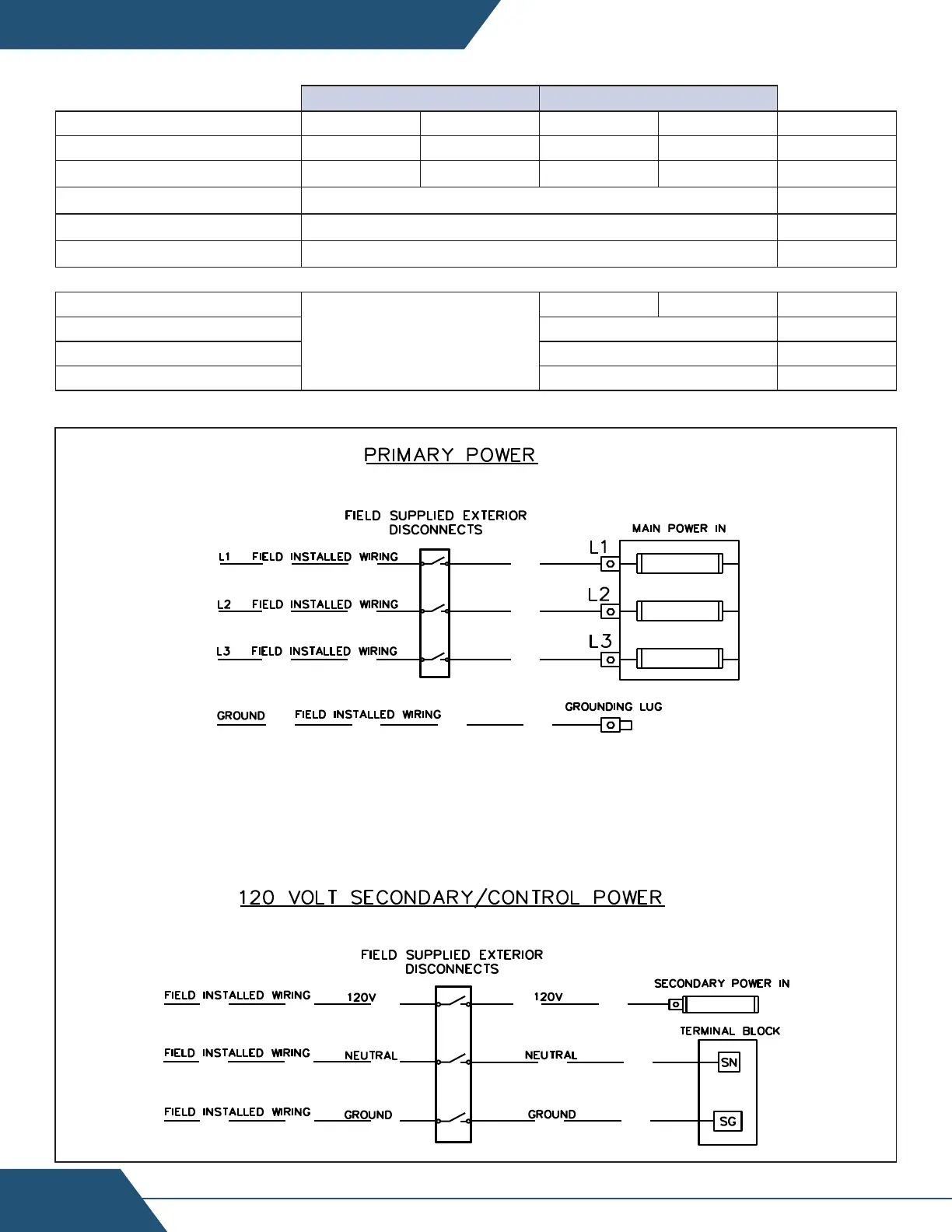

Table 5: Power Wiring Specifications
