Oberheim Xpander Owner's Manual

.i<^nvn«i
w**r*mmmm**r*v"vmmmmtti
"

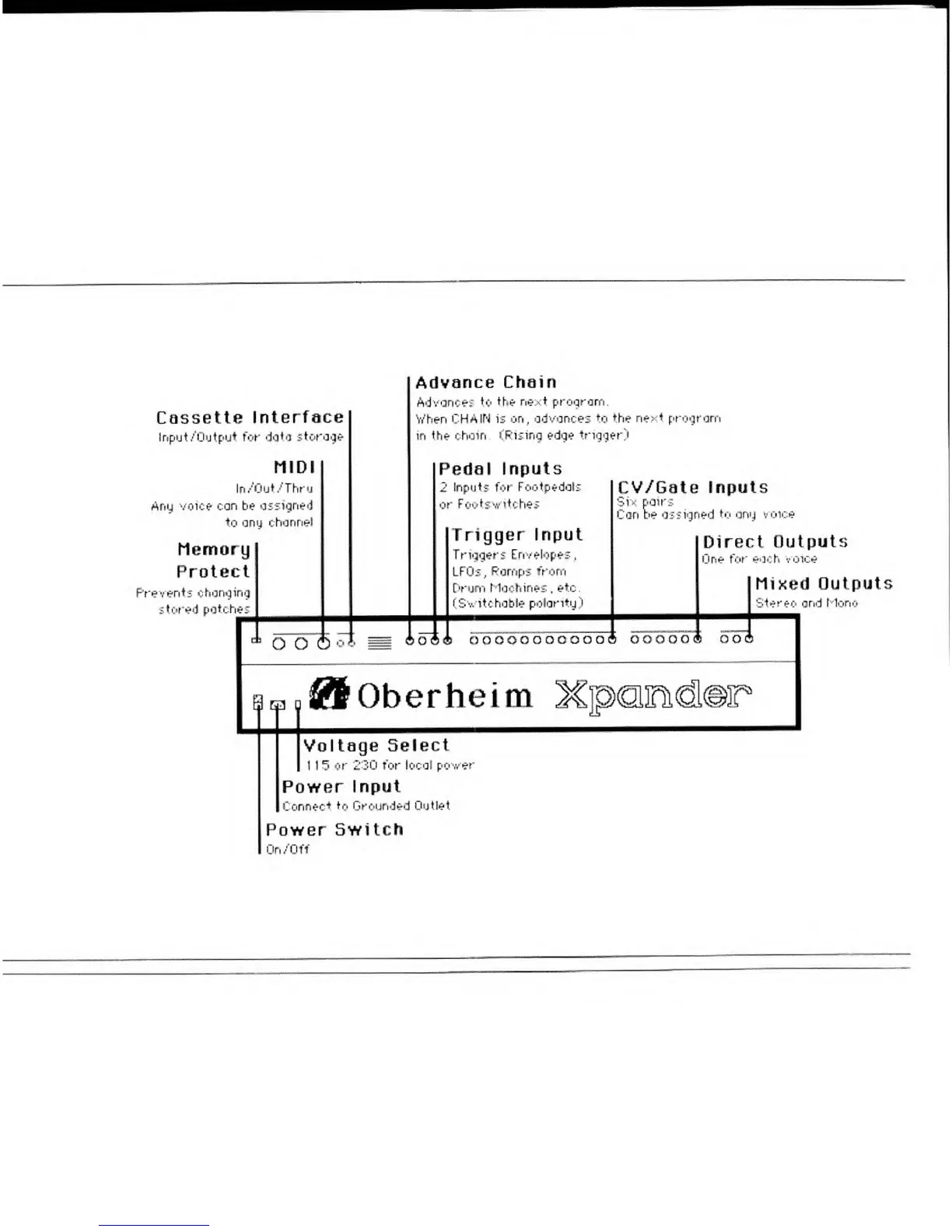

Cassette
Interface
Input
/Output
for
dato
storage
MIDI
Any voice
In
/Out/Thru
can be assigned
to any
channel
Memory
Protect
Prevents
changing
stored
patches
Advance
Chain
Advances to
the next program.
When
CHAIN
is on, advances to
the next program
in
the chain
(Rising
edge
trigger)
Pedal
Inputs
2
Inputs for"
Footpedols
or
Footsvitches
Trigger
Input
Triggers
Envelopes,
LFOs,
Ramps from
Drum
Machines
,
etc
.
(Sv.
itchable polarity)
CV/Gate
Inputs
Six
pairs
Can be assigned
to
any
voice
Direct
Outputs
One
for
each
voice
Mixed Outputs
Stereo
arid
Mono
Voltage
Select
1 1
5
or
230 for
local pow
Power
Input
Connect
to Grounded
Outlet
Power
Switch
On
/Off
* *
>
er
*™
———————————
mi-mwn
^rvvvwwwww^

Oberheim Xpander Specifications

General

Type	Analog Synthesizer
Polyphony	6 voices
Oscillators	2 VCOs per voice
Control	MIDI
Synthesis Type	Analog Subtractive
VCA	1 per voice
Memory	100 patches
Modulation	Extensive modulation matrix
Year Released	1984
Filters	Multi-mode filter per voice
Envelopes	3 per voice
Keyboard	No keyboard
Inputs	CV/Gate
Outputs	Individual voice outputs
