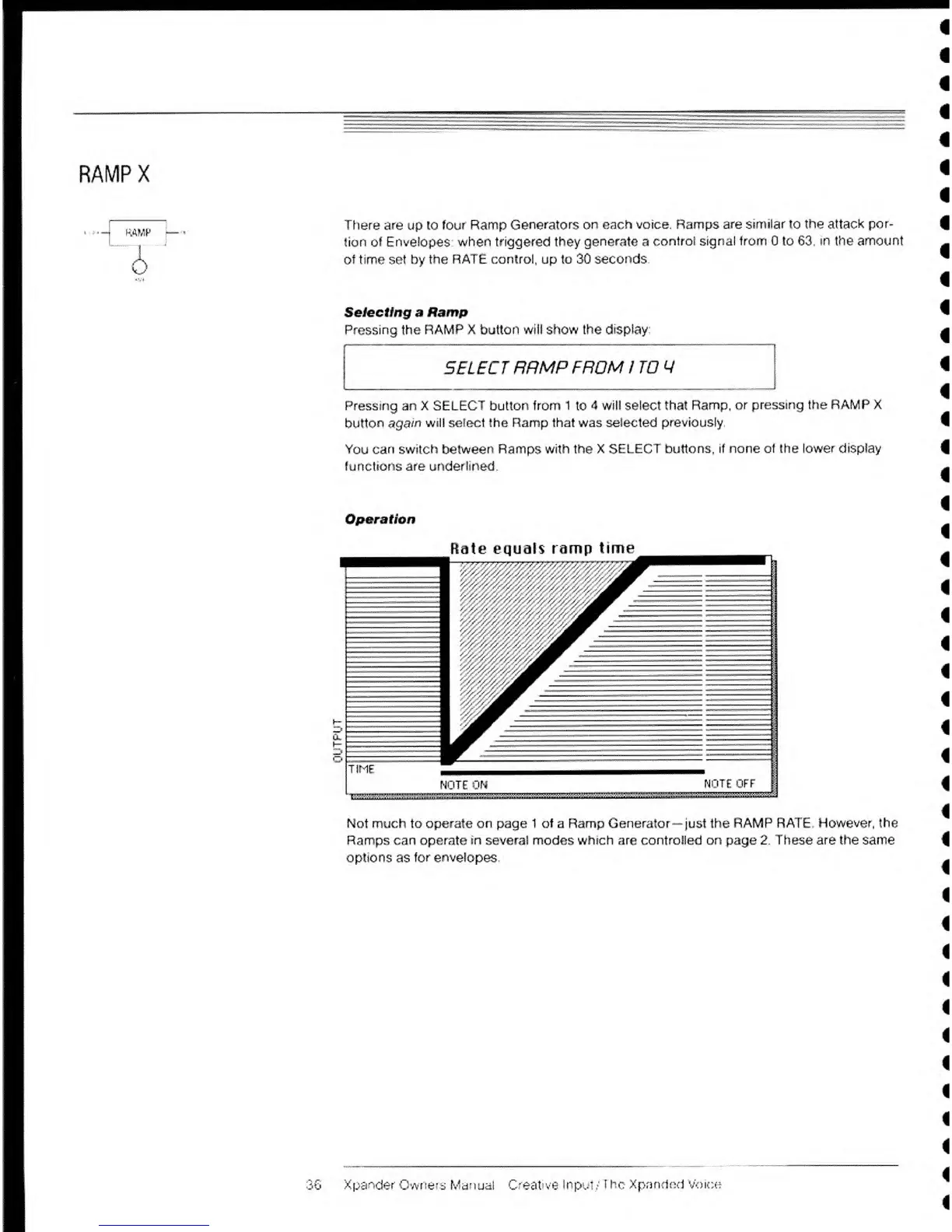

RAMPX
*
?*
-
RAMP
1-
•
.
There are
up
to four Ramp
Generators
on each voice. Ramps
are similar to the attack
por-
tion of Envelopes when triggered they
generate
a
control signal
from
to 63.
in the amount
of time set by
the
RATE control,
up to 30
seconds
Selecting
a
Ramp
Pressing the
RAMP X button will show the
display
Pressing
an X
SELECT button from 1
to
4
will select that
Ramp,
or pressing the RAMP X
button again
will
select
the Ramp that was
selected previously
You can switch between Ramps with the X
SELECT buttons,
if none of the lower
display
functions are underlined.
Operation
Rate equals
ramp
time
Not
much
to
operate on
page
1 of
a
Ramp Generator—
just
the RAMP RATE
However, the
Ramps can operate
in several
modes
which
are controlled on page
2. These are the same
options as
for envelopes.
_ ••.-**-
it**
-
eeeeeeeeeee^*eee * L^r
36 XpaxJer
Owners
Manual
