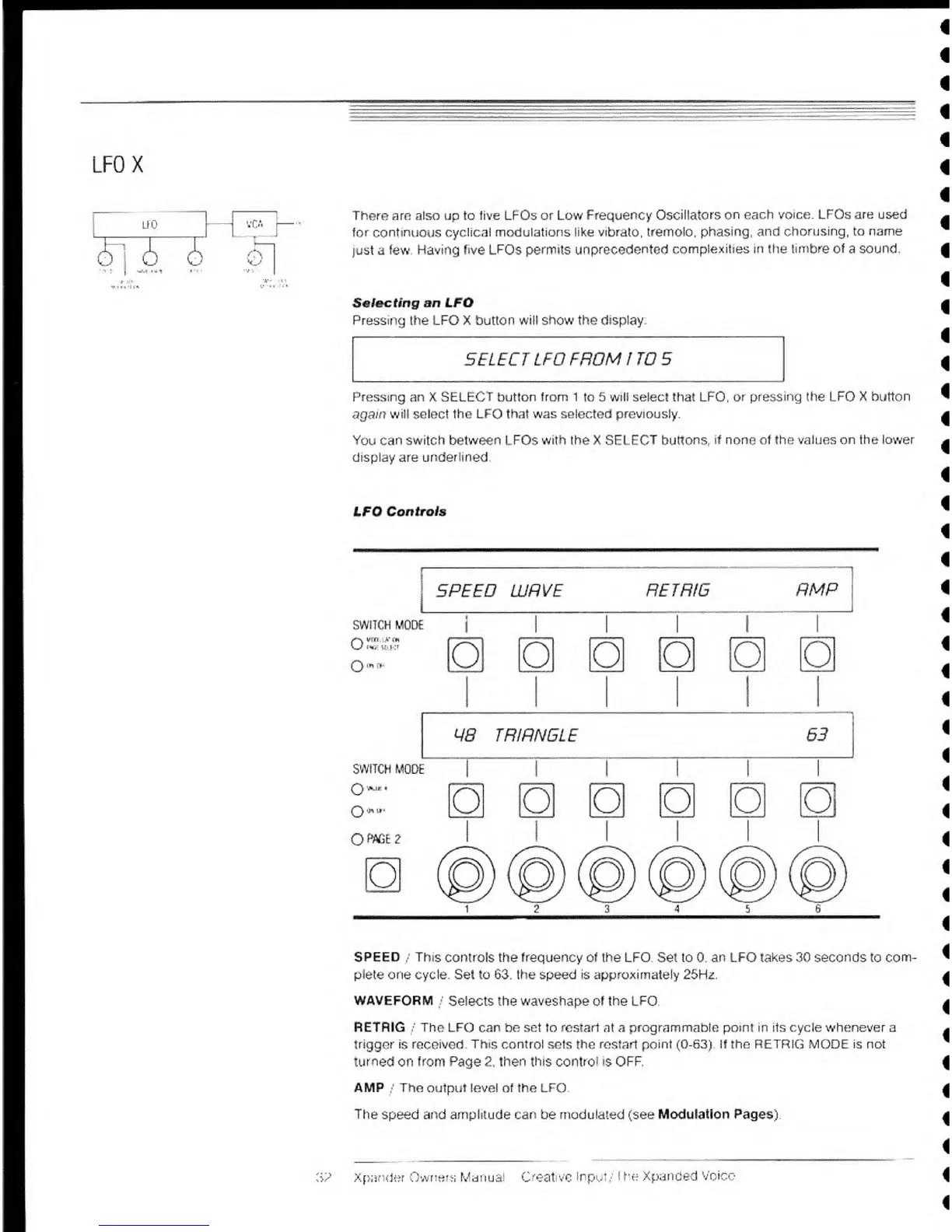

LFOX
v
*
« i 'J
*r*
There are also up to five LFOs or Low
Frequency Oscillators
on each
voice. LFOs are used
for continuous cyclical modulations
like vibrato, tremolo, phasing,
and
chorusing, to name
just a
few Having
five
LFOs
permits unprecedented
complexities in
(he
timbre of
a
sound.
Sef&cting
an
LFO
Pressing the LFO X button
will show the display
SELECT LFO FROM 1 TO
5
"""'"" ~j ~~
~
^ J —
Pressing
an X
SELECT
button
from 1
to 5
will
select that LFO,
or pressing the LFO X
button
again
will select the LFO that was selected
previously.
You can switch between LFOs
with
the X SELECT buttons.,
if
none of the values
on the lower
display are
underlined
LFO
Controls
***** V7&
SWITCH MODE
OVfSMA-
OH
o
GPI
C**
SWITCH
MODE
O
UM
QW6E2
IL
—
V.l.lT-11
SPEED
UJRVE
l/8
TRIRNGLE
Twwn \ \ ^
ppf-
rmw m mmijtm ^*^ " my ir\ l l l t wt n
~T
RE
TRIG
ii^iqH^hvrvrwj
o
•^nt^rrrm^^r
o
RMP
63
SPEED
/ This controls the frequency of the LFO Set
to
0. an LFO takes 30 seconds
to
com
plete
one cycle. Set to 63
the
speed is
approximately
25Hz.
WAVEFORM
..'
Selects
the
waveshape of the LFO
RETRIG /
The LFO can bo set to restart at a programmable
point
in its cycle whenever a
trigger is received.
This
control sets
the
restart
point (0-63). If
the RETRIG
MODE is not
turned
on
from Page
2
then this control is OFF.
AMP
/
The output level of the LFO
The speed and amplitude can be modulated (see
Modulation Pages)
fc^F'tH
/™"'' "
.-**
:\? Xpander
Owners
Manual Creative
Input /The
Xpanded
Voice
