Oberheim Xpander Owner's Manual

. l —iTWi—ifii
-vn wv.wx TV

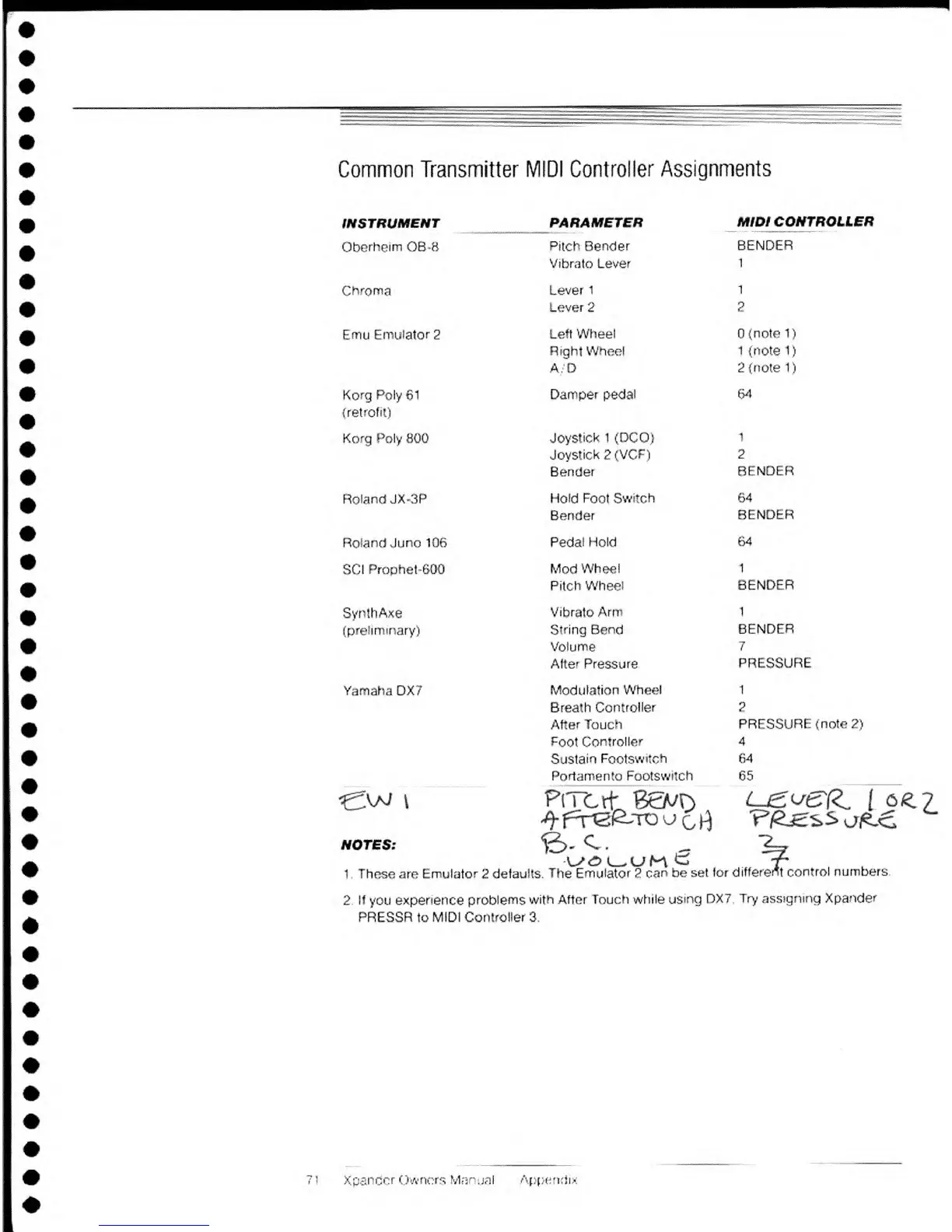

Common
Transmitter MIDI Controller
Assignments
INSTRUMENT
PA RA METER
MIDI
CONTROLLER
Oberheim OB -8
Pitch Bender
Vibrato Lever
BENDER
1
Chroma
Lever
1
Lever
2
1
2
Emu Emulator
2
Left
Wheel
Right Wheel
A/0
0(note1)
1
(notel)
2
(note
1)
Korg Poly
61
(retrofit)
Damper pedal
64
Korg Poly
800
Joystick
1 (DCO)
Joystick 2
(VCF)
Bender
1
2
BENDER
Roland
JX-3P
Hold Foot
Swstch
Bender
64
BENDER
Roland Juno
106 Peda!
Hold
64
SCI Proohet-600
Mod Wheel
Pitch
Wheel
1
BENDER
SynthAxe
(preliminary)
Vibrato Arm
String Bend
Volume
Alter Pressure
1
BENDER
7
PRESSURE
Yamaha DX
7
Modulation
VVheel
Breath
Controller
After Touch
Foot
Controller
Sustain Footswitch
Portamento
Footswitch
2
PRESSURE
(note
2)
4
64
65
e:w \
NOTES:
P(Tc
rt
BSMO
VdLUM
C
1 These are Emulator
2
defaults.
The Emulator
2
can be set
for
differ
uzve:(^
[
6*.
2.
•rent cont
rol
numbers
2
If
you
experience problems
with After Touch
while
using DX7
Try assjgmng
Xpander
PRESSR
to
MIDI Controller 3.
71
Xpander
Owners
Manual
Appendix

Oberheim Xpander Specifications
