CS9350 User’s Guide
4-73

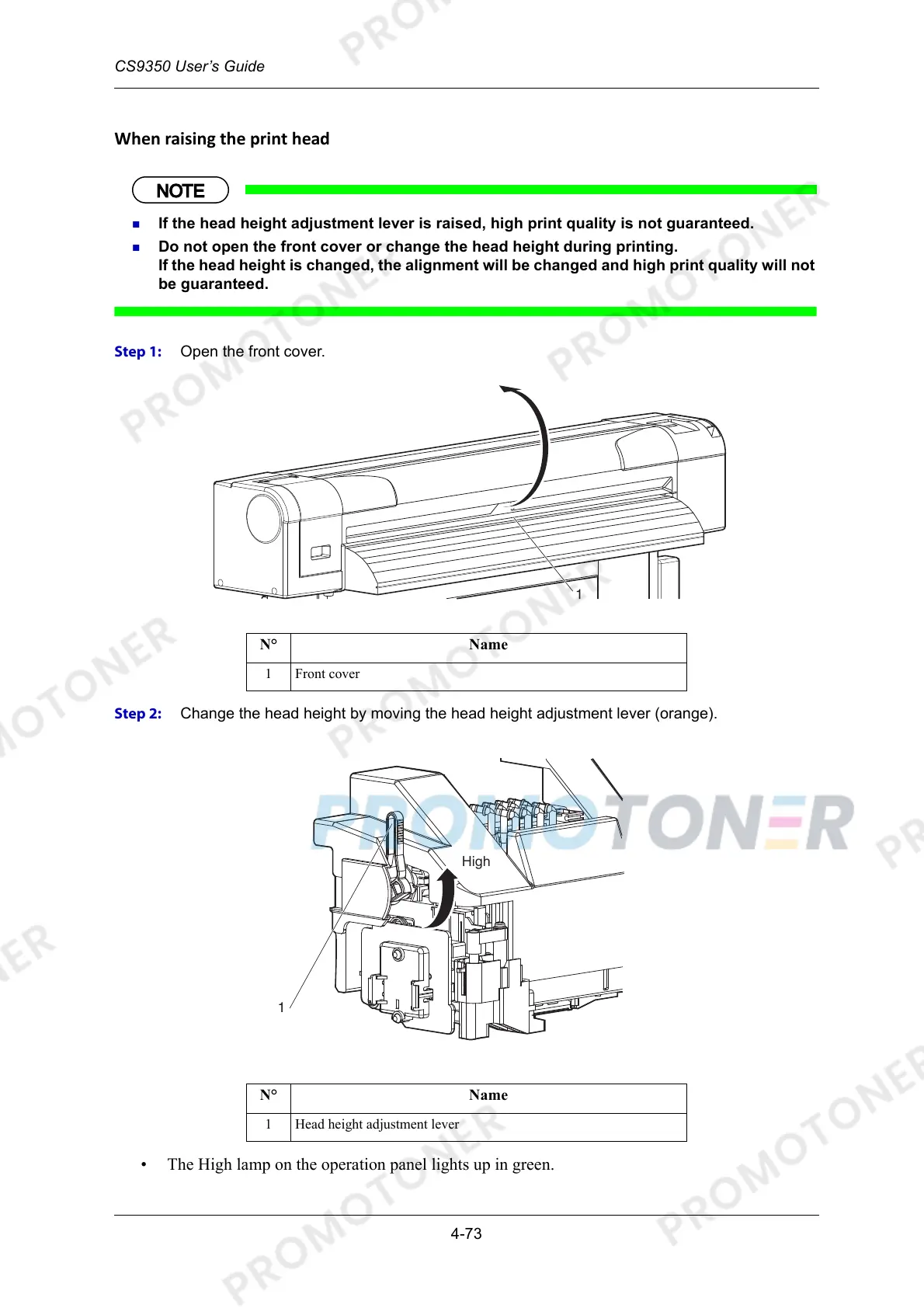

When raising the print head
If the head height adjustment lever is raised, high print quality is not guaranteed.
Do not open the front cover or change the head height during printing.
If the head height is changed, the alignment will be changed and high print quality will not
be guaranteed.
Step 1: Open the front cover.
Step 2: Change the head height by moving the head height adjustment lever (orange).
• The High lamp on the operation panel lights up in green.
N° Name
1 Front cover
N° Name
1 Head height adjustment lever
To Next Page
