Appendix C
Analog Output

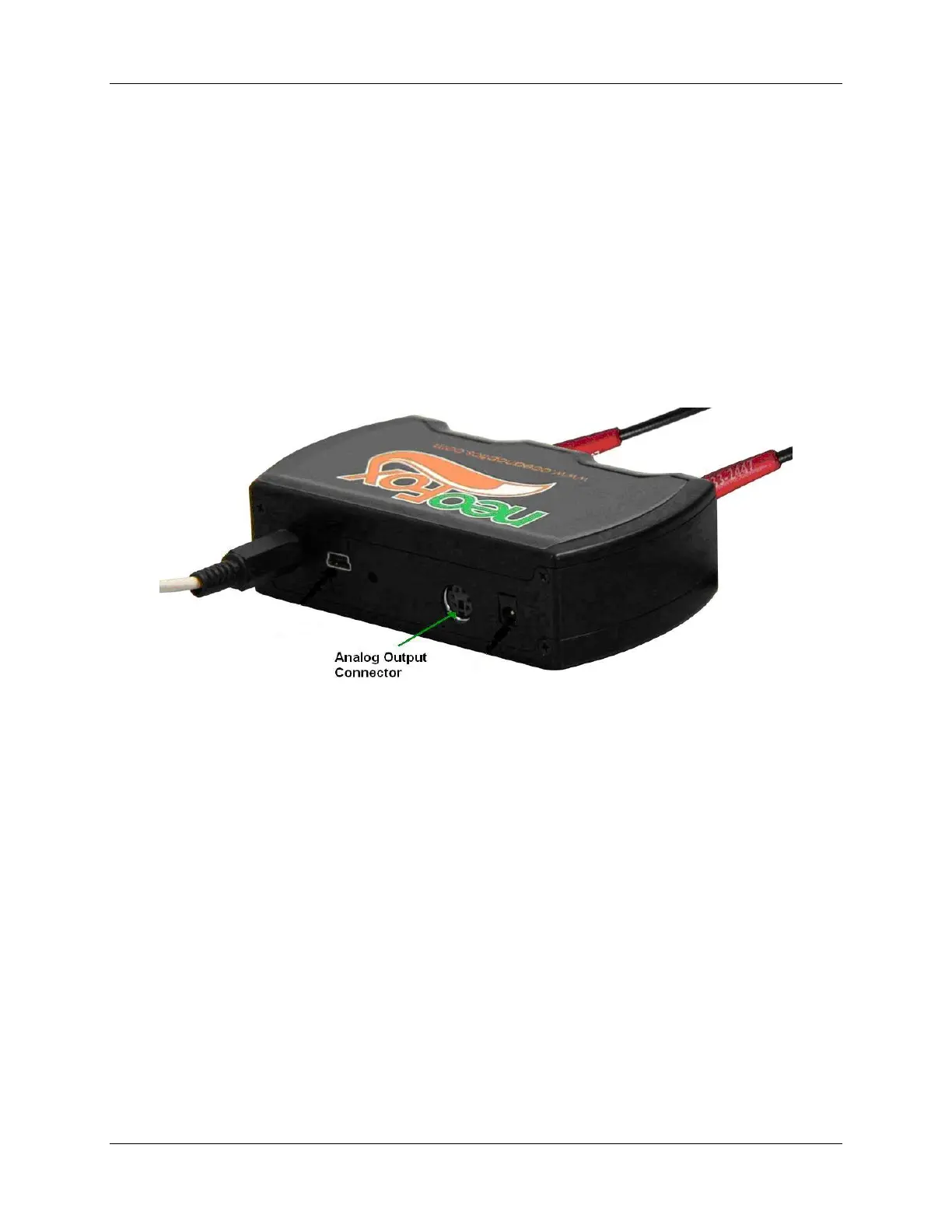

Analog Output Connector
The Analog Output connector is located on the rear panel of the NeoFox unit.
There are two user programmable analog outputs available on the NeoFox as follows:
4-20 mA current source
0-5V voltage source
Analog threshold settings can be saved by the user to allow a NeoFox unit to operate in a stand alone
mode, outputting analog signals without input from a computer.
Configuring Analog Voltage Output Channel with NeoFox
Viewer
► Procedure
1. Select the Advanced Settings tab on the Advanced View screen to view the advanced settings.
