OCULUS BIOM 5c - 5 Device Description

5 Device Description
6 / 40 Instruction Manual BIOM® 5 (G/55400/0413/en)
5 Device Description
BIOM
®
5c
1 Reduction lens
(not supplied with the BIOM®)
2 Housing with swivel mechanism
3 Lens receptacle
4 Focus adjustment wheel
5 Control mark
6 Lensholder with safety rod
7 Front lens
(not supplied with the BIOM®)
8 Drive module

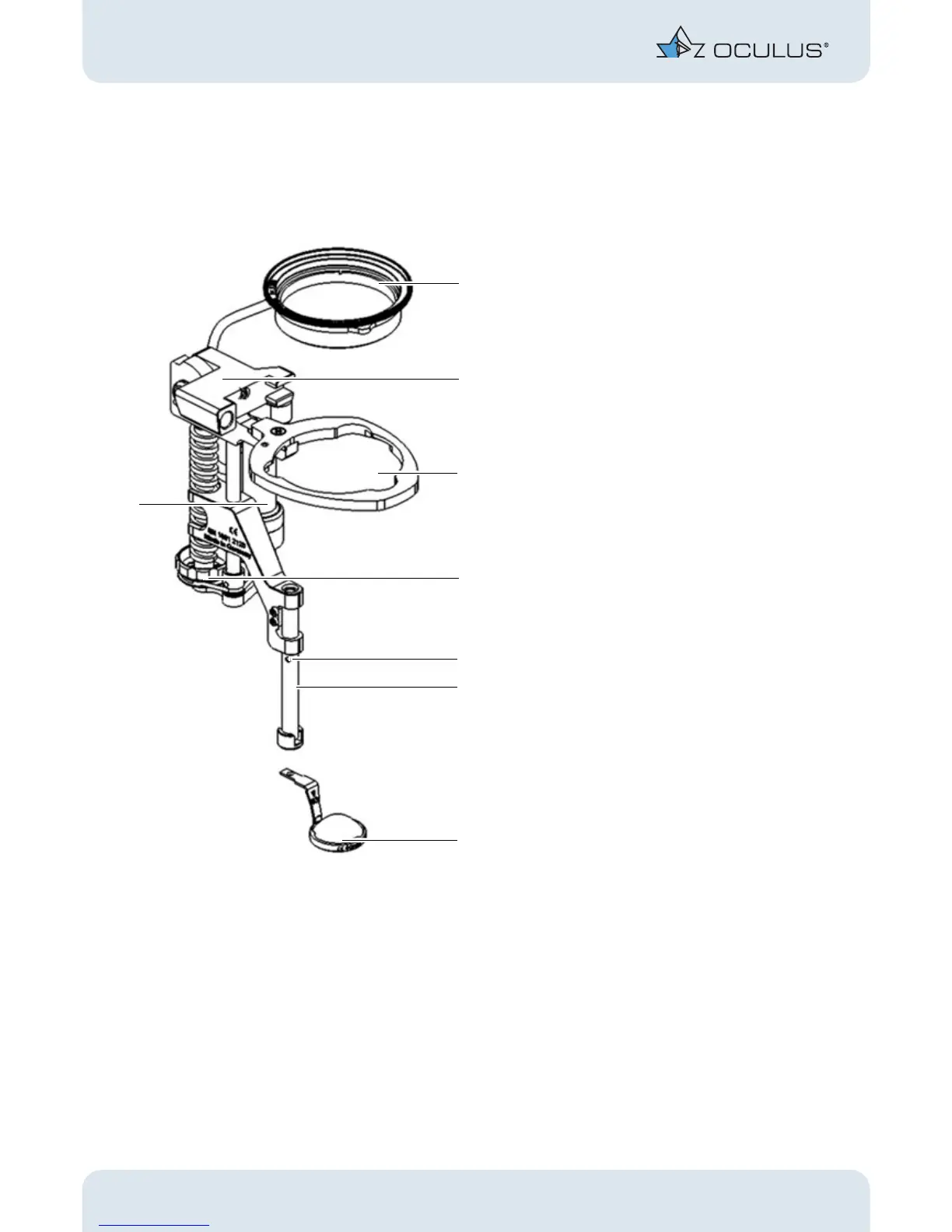

Fig. 5-1: Device overview BIOM® 5c with reduction lens and ophthalmoscopy lens
8
1
3
6
4
7
5
2
