Disposable lens Sets
In addition to the re-sterilizable lenses, disposable sterile BIOM® Optic Sets
can also be used on the BIOM® 5.
The sets consist of a wide-angle front lens and a reduction lens, which can
be used for a microscope length of f=175 mm or f= 200 mm.
The maximum field of view is approx. 125° and the working distance is
approx. 3-4 mm.
The disposable lens sets can be combined with models BIOM® 5:
9.2 Assembly
Make sure that all components are present and are sterile.

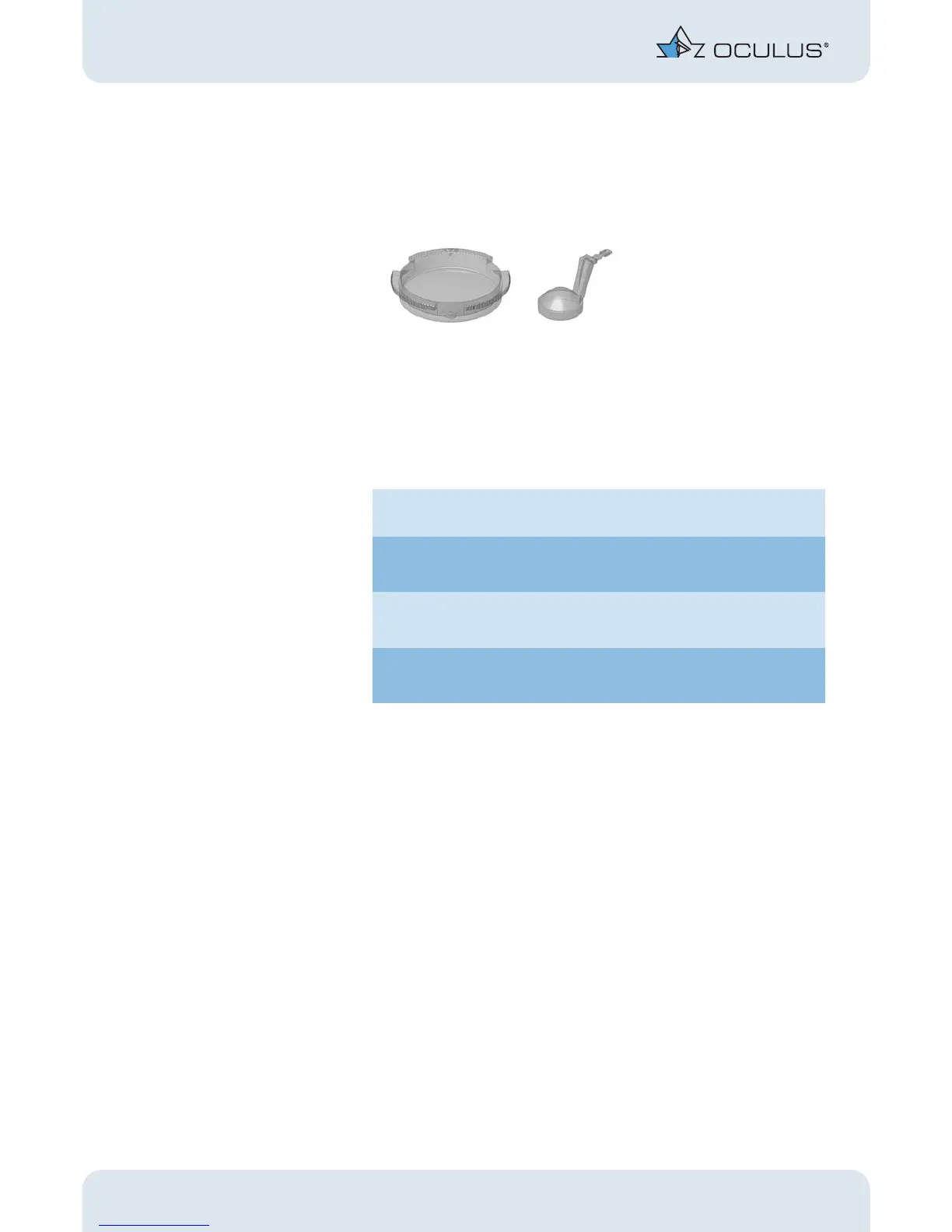

Fig. 9-1: Disposable lenses (similar to those shown here)
Objekctiv
lens
Model BIOM® BIOM® Optic Set
for f=175 mm BIOM® 5m (55462)
BIOM® 5c (55400)
HD Professional 54411
for f=200 mm BIOM® 5ml (55463)
BIOM® 5cl (55403)
HD Professional 54412
for f=200 mm BIOM® 5m (55462)
BIOM® 5c (55400)
HD Flex 54415
