5 Device Description
Instruction Manual BIOM® 5 (G/55400/0413/en) 7 / 40
BIOM
®
5m
5.1 Function of the BIOM® 5
The BIOM® 5 is used in conjunction with an SDI® (Stereoscopic Diagonal
Inverter) to erect the image for non-contact, wide-angle observation of the
fundus and vitreous body.
The combination of surgical microscope and the optical components of the
BIOM® 5 allows examination of the vitreous chamber under stereoscopic
conditions. The BIOM® 5 works as an indirect ophthalmomicroscope with-
out corneal contact during the surgery.

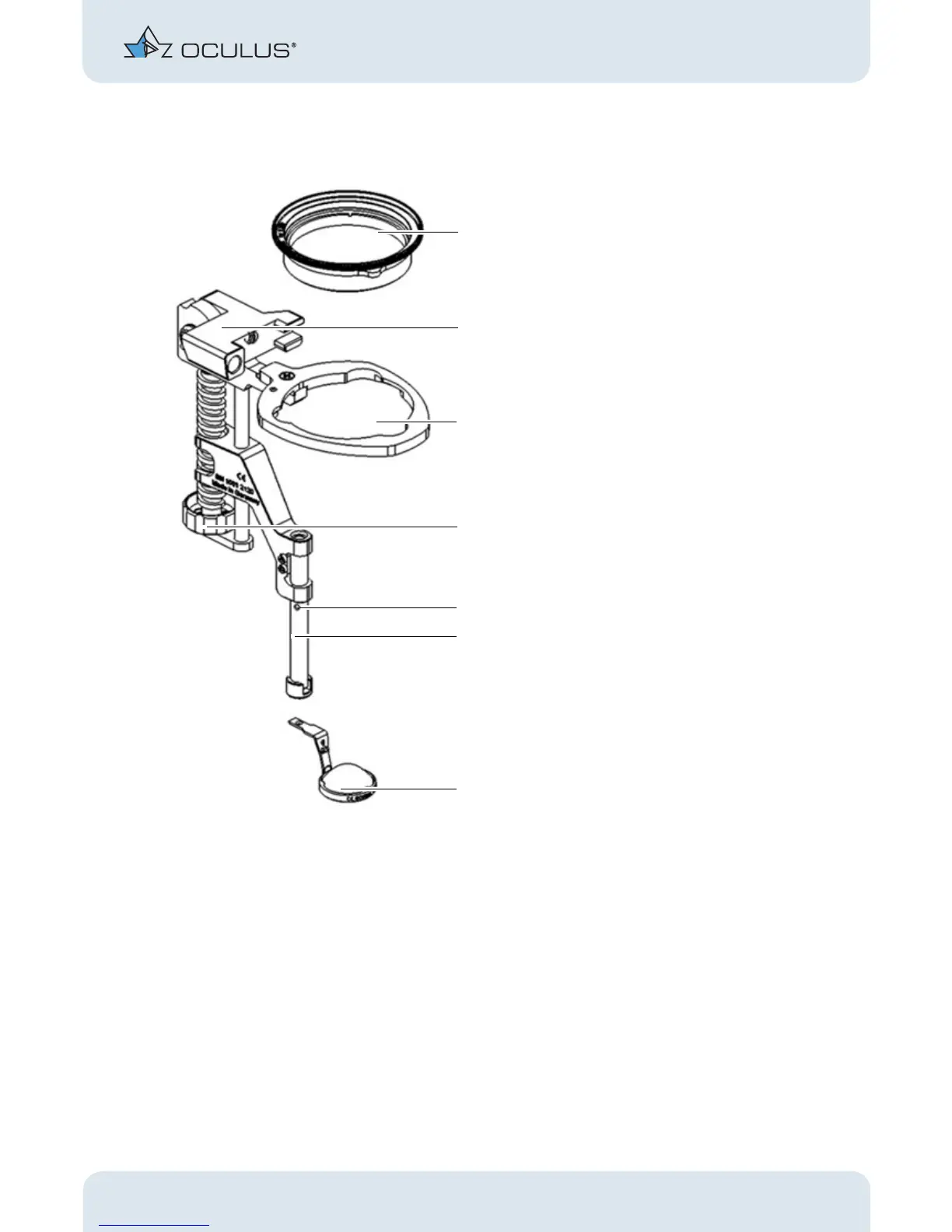

1 Reduction lens
(not supplied with the BIOM®)
2 Adjuster, housing with swivel mechanism
3 Lens receptacle
4 Focus adjustment wheel
5 Control mark
6 Lens holder with safety rod
7Front lens
(not supplied with the BIOM®)
Fig. 5-2: Device overview BIOM® 5m with reduction lens and ophthalmoscopy lens
1
3
6
4
7
5
2
