6 Device Description
Instruction Manual Easyfield® (GA/15000/XXXX/EN 1219 Rev01) 13 / 60
6 Device Description
1 Forehead rest 6 Stand support*
2 Eye shield 7 Power On/Off switch
3 Perimeter cone with mounts for correction lens holder 8 Port for external power supply
4 Chin rest* 9 USB port for connection with netbook/PC/laptop
5 Chin rest adjustment knob* 10 Port for connection with hand-held button

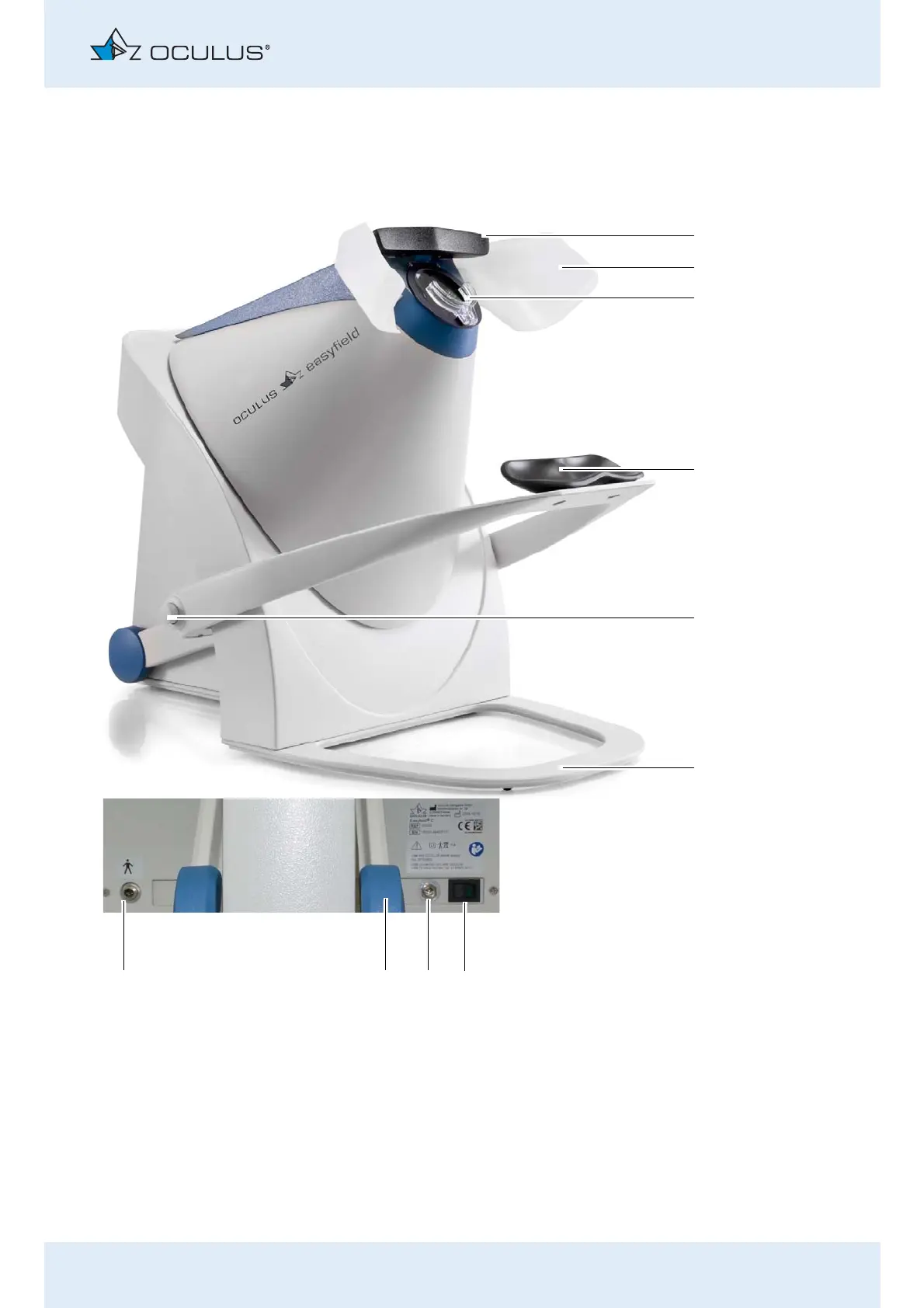

Fig. 6-1: Overview Easyfield®
* Easyfield® C only
2
3
1
4
5
6
7
89
10
