General Information

Table of ContentsIntroductionInstallationMain ScreenQuick StartGeneral InformationColor Editor

Mini Magic Box - Design Card Converter

Software Manual

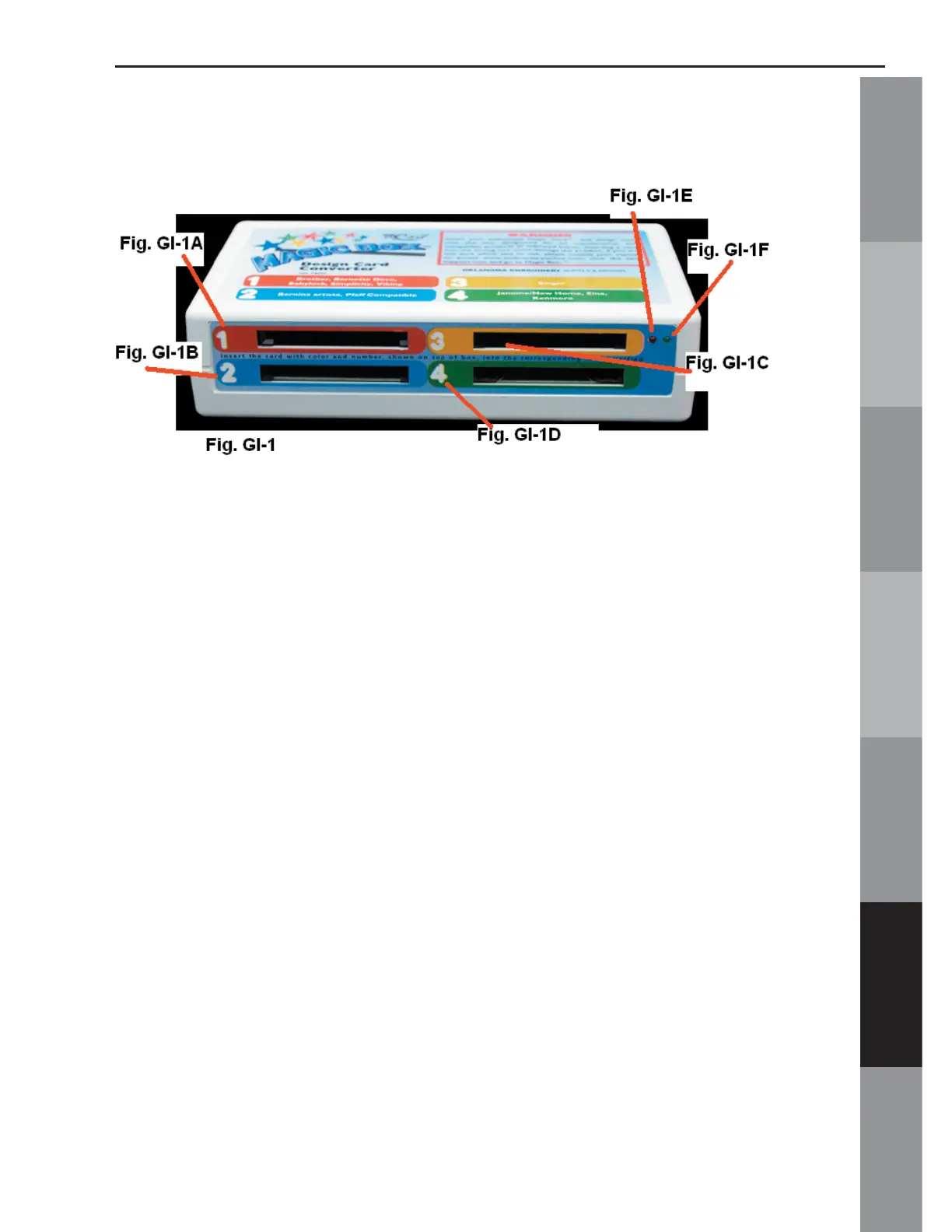

The Magic Box (Fig. GI-1 Below)

Fig. GI-1A Upper Left Card Slot #1

This is the correct card slot for the Bernette-Deco,

Brother, Viking, Babylock and Simplicity Cards.

Fig. GI-1B Lower Left Card Slot #2

This is the correct card slot for Bernina artista, Janome

10000 and Pfaff Cards.

Fig. GI-1C Upper Right Card Slot #3

This is the correct card slot for Singer Cards.

NOTE: The Magic Box cannot read a pre-programmed Singer XL1000 Card.

Fig. GI-1D Lower Right Card Slot #4

This is the card slot for Janome 8000 and 9000, Elna,

New Home and Kenmore Cards.

Fig. GI-1E Red Light

The red light is the activity light. It indicates that the

Magic Box is either Reading, Loading or Writing a

card.

WARNING! Do not remove the card or attempt to perform another

function when the red light is on.
