19 of 30

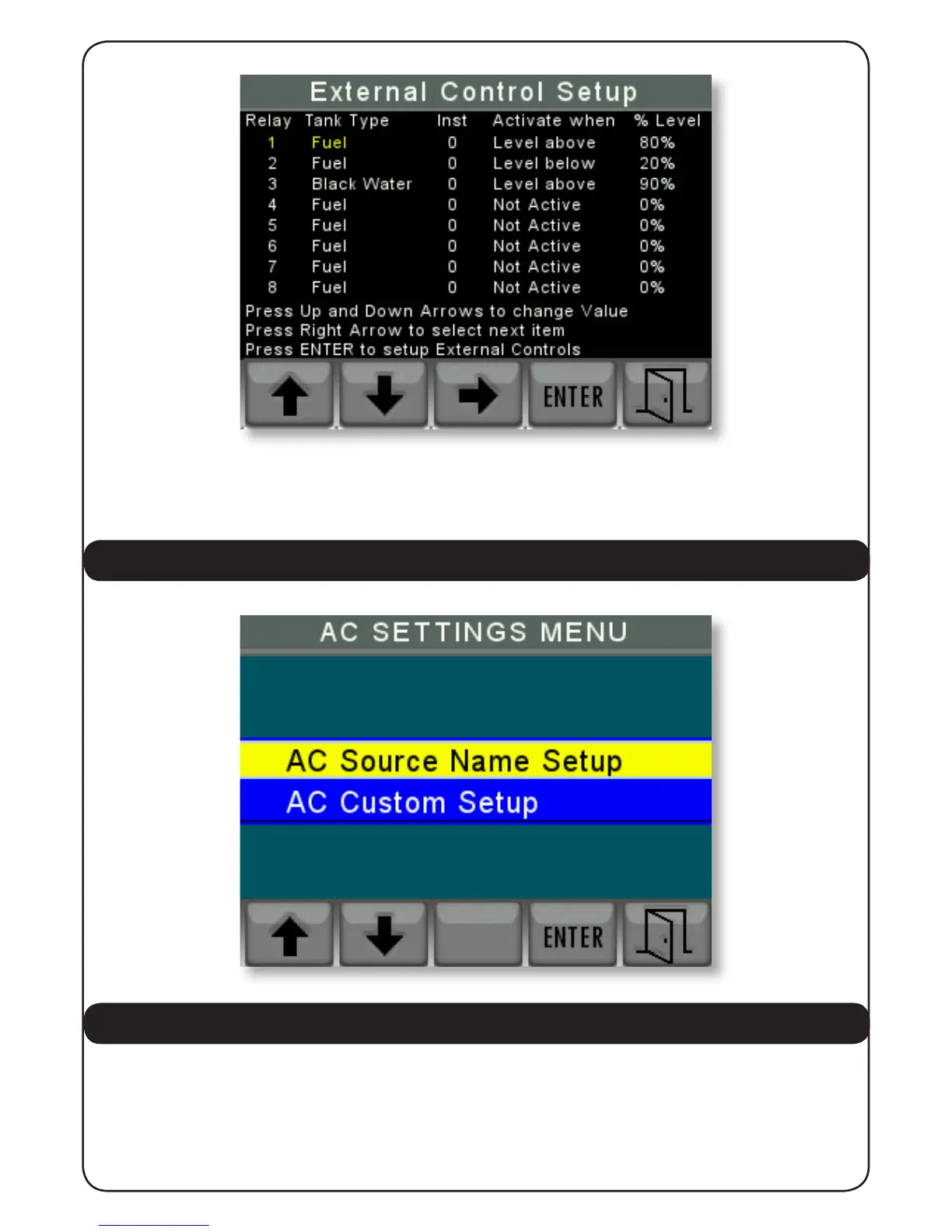

The user can select the Tank Type, the Tank Instance, the Activation trigger and the activation
level in 5% steps. When this is done, pressing “ENTER” sets up the system to issue relay controls
every time a level passes the activation threshold.
4.2.5 AC SETUP
4.2.5.1 AC SOURCE NAME SETUP
This screen is used to assign a 16 character name to each AC Source to identify it more easily on
the AC Source display pages as can be seen on the following screen.
