Patent No. 6,766,028 - OFI Testing Equipment, Inc.
OFITE, 11302 Steeplecrest Dr., Houston, TX 77065 USA / Tel: 832-320-7300 / Fax: 713-880-9886 / www.ote.com 41
7. Remove the two screws holding the encoder board in place.
8. Unscrew the three standoffs.
9. Pull the bearing guide up and out of the body.
10. On units with a KlikLock™ bob, unscrew and remove the upper magnet
assembly. Use the supplied bob shaft wrench (#130-76-08) to hold the
bob shaft immobile. This will prevent damage to the stop pin and torsion
spring.

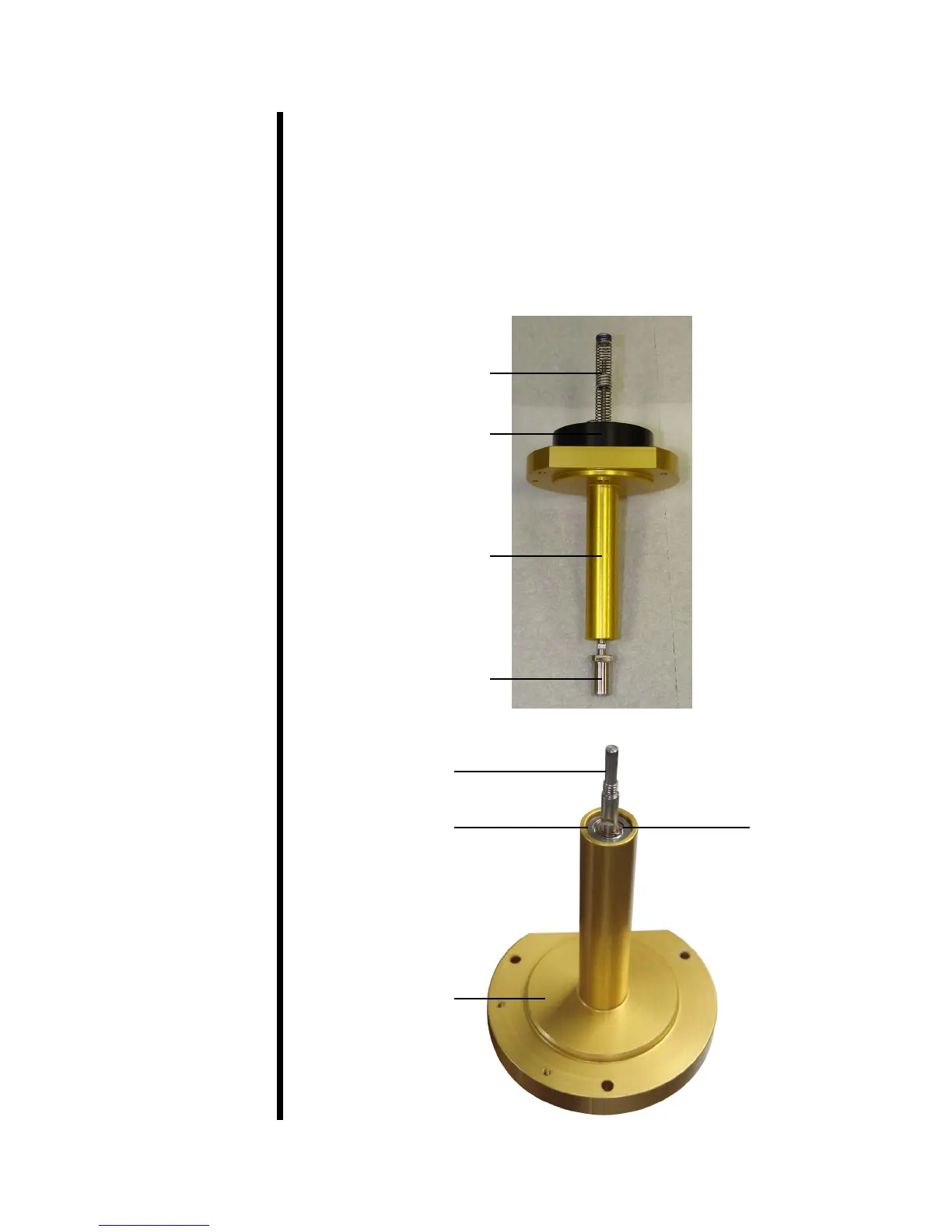

Torsion Spring
Transducer
Bearing Guide
Upper Magnet Assembly
Bob Shaft
Lower Bearing
Retainer Ring
Bearing Guide
To Next Page
