PRINTER COMPONENTS > 12
PRINTER COMPONENTS
Apart from the Operator panels, which are described in the next chapter,
the B4100, B4250, B4350 and B4350n printers look similar from the
outside. The important components are identified in the representations
below.

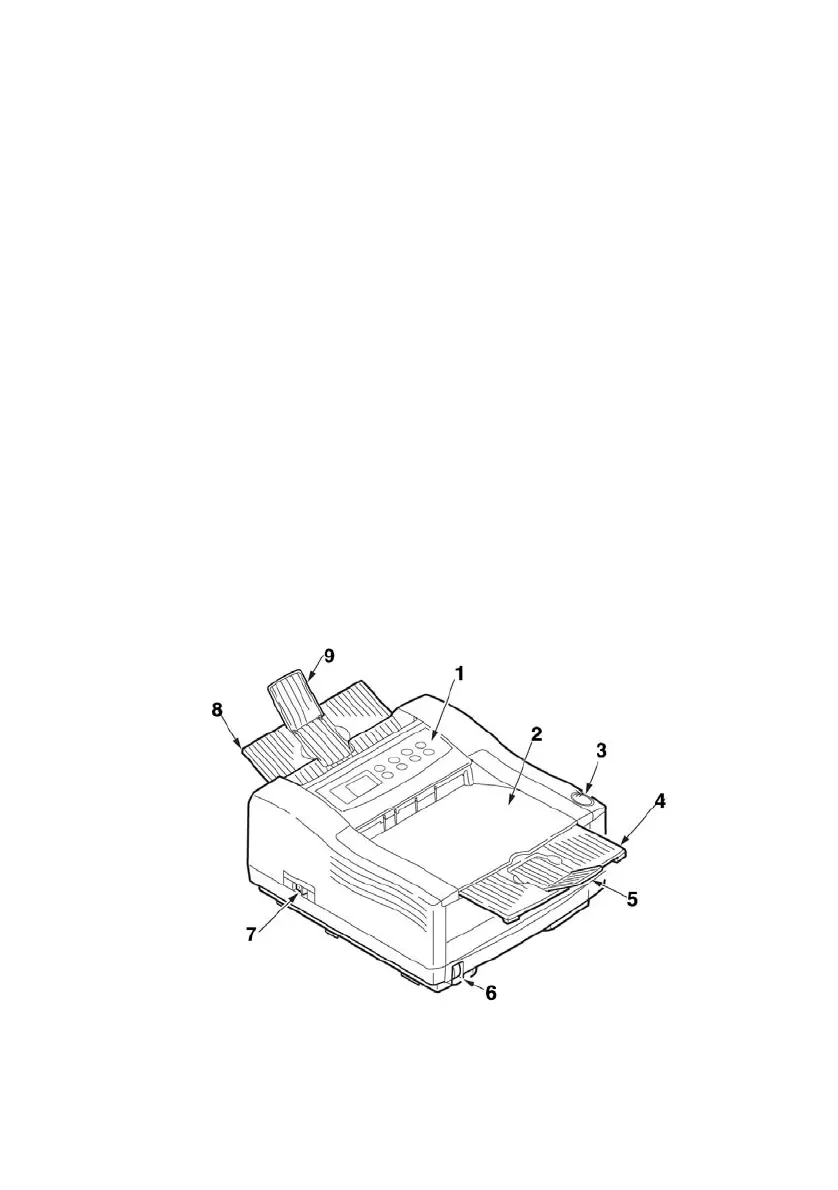

1. Operator panel (B4350, and B4350n shown)
2. Top paper exit bin (150 sheets, face down)
3. Top cover release button
4. Top paper exit bin extension
5. Top paper exit bin extension paper guide
6. Paper tray content indicator
7. ON/OFF switch
8. Rear paper exit tray (50 sheets, face up)
9. Rear paper exit tray paper guide
