Oki B410D User Manual

Operator panels > 11
O PERATOR PANELS
This chapter describes the function of the operator panel on your printer. It is useful to
describe the Printer Menu Setup Tool at this point as it provides the B410d and B410dn,
the equivalent of the menu control panel on the B420dn, B430dn (See “Printer drivers” on
page 37 for installation of the Printer Menu Setup Tool.)
B410 D AND B410 DN
O PERATOR PANEL

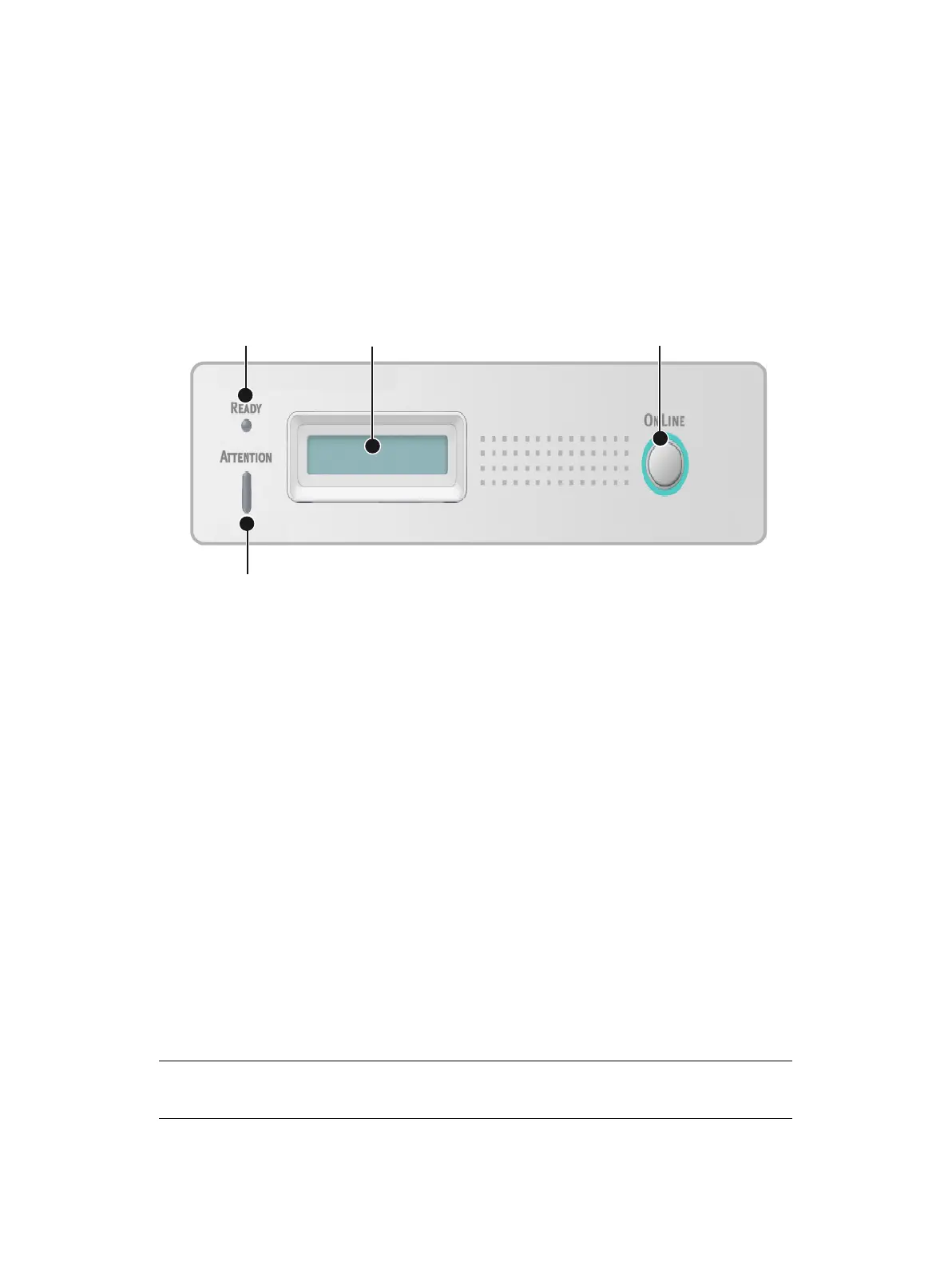

The B410d and B410dn operator panel consists of 2 indicating LEDs, an LCD (3) and an
Online (4) button. The LEDs indicate Ready (1) and Attention (2).
LED INDICATORS
The LED indicators show the status of the printer and have three operating conditions as
follows:
> Indicator off
> Indicator on
> Flash
Both LED indicators come on momentarily when power is switched on using the main power
switch.
Ready LED (green)
> Indicator on - the printer is on-line and ready to receive data.
> Indicator off - the printer is off-line and cannot receive data.
Attention LED (red)
> Indicator on - this indicates a warning, (e.g. low toner).
> Indicator off - this indicates normal condition.
The meaning of the indicator LEDs when they flash (x) is summarised as follows:
NOTE
The table below is also applicable for the B420dn and B430dn models.
1
3
4
2

Oki B410D Specifications

General

Color	No
Duplex printing	Yes
Print technology	Laser
Maximum resolution	2400 x 600 DPI
Time to first page (black, normal)	5.5 s
Print speed (black, normal quality, A4/US Letter)	28 ppm
Internal memory	32 MB
Processor model	PowerPC405
Maximum internal memory	288 MB
Sound power level (standby)	30 dB
Sound pressure level (printing)	53 dB
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	1 sheets
Envelopes sizes	C5, C6, DL
Maximum print size	210 x 297 mm
Media weight (tray 1)	60 - 120gsm
Paper tray media types	Envelopes
Non-ISO print media sizes	Executive (184 x 267mm), Legal (media size), Letter (media size), Statement (140 x 216mm)
ISO A-series sizes (A0...A9)	A4, A5
JIS B-series sizes (B0...B9)	B5
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Power requirements	230 VAC, 50-60 Hz
Compatible operating systems	Windows 2000 / XP / XP x64 / Server 2003 / Server 2003 x64 / Vista (32-bit) / Vista (64-bit) / UNIX / Linux; Mac OS X PowerPC 10.2.8 + / OS X Intel 10.4.4 +
Display	LCD
Maximum duty cycle	50000 pages per month

Weight and Dimensions

Dimensions (WxDxH)	268 x 369 x 395 mm
