B6250/B6500 User’s Guide> 33
I
NSIDE
C
OVER
B

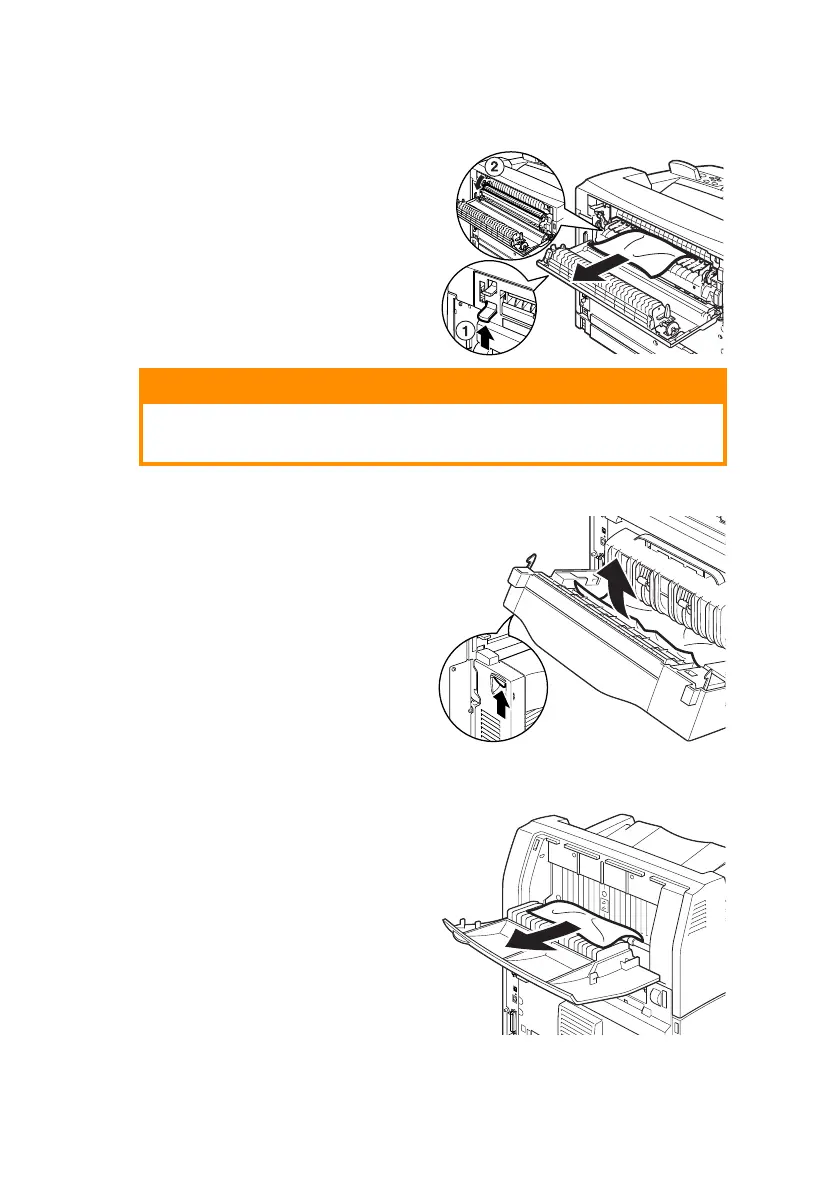

Remove the rear tray when
opening the back cover.
Raise the lever as shown in the
diagram and open the cover B (1).
After opening cover B, open the
cover of the fuser unit (2) and
remove any jammed paper.
I
NSIDE
C
OVER
C (D
UPLEX
U
NIT
)
Remove the rear tray when
opening the back cover.
Push up the lever shown in the
diagram to open the cover.
I
NSIDE
C
OVER
D (O
FFSET
C
ATCH
T
RAYS
)
Open the cover and remove paper
as shown.
CAUTION!
The fuser unit is hot. You may get burned if you touch it
directly.
