42615101TH Rev.8 10 /
Oki Data CONFIDENTIAL
1.2 Printer Configuration
The inside of C5400 printers is composed of the following:
• Electrophotographic Processor
• Paper Paths
• Controller Block (CU and PU)
• Operator Panel
• Power Units (High Voltage Unit and Low Voltage Unit)

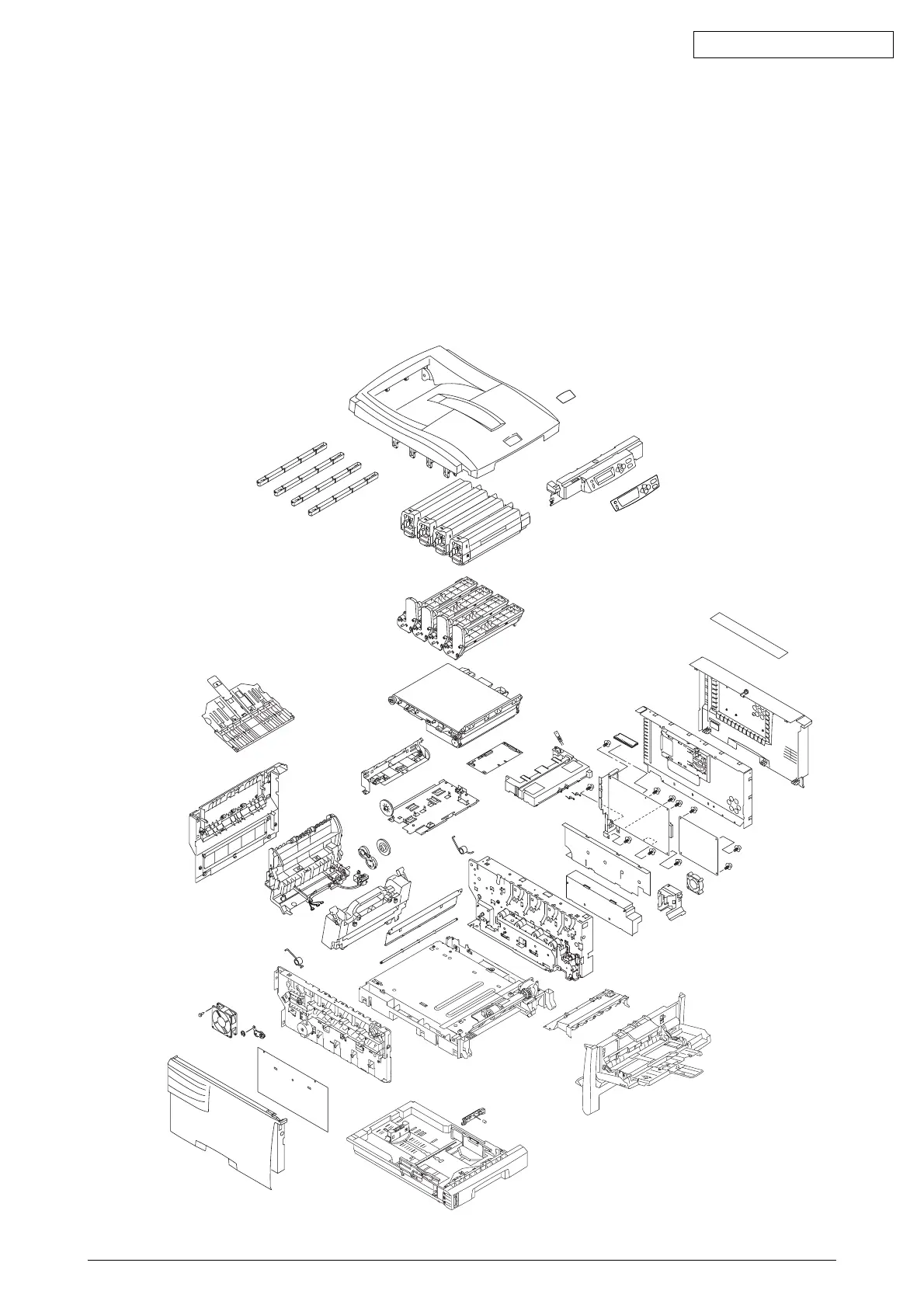

Figure 1-2-1 shows the configuration of each printer.
Figure 1-2-1
