Oki C 3200n Service Manual

42615101TH Rev.8 104 /
Oki Data CONFIDENTIAL
3
C
2
B
9
0
4
A
8
6
5
1
7
Claws

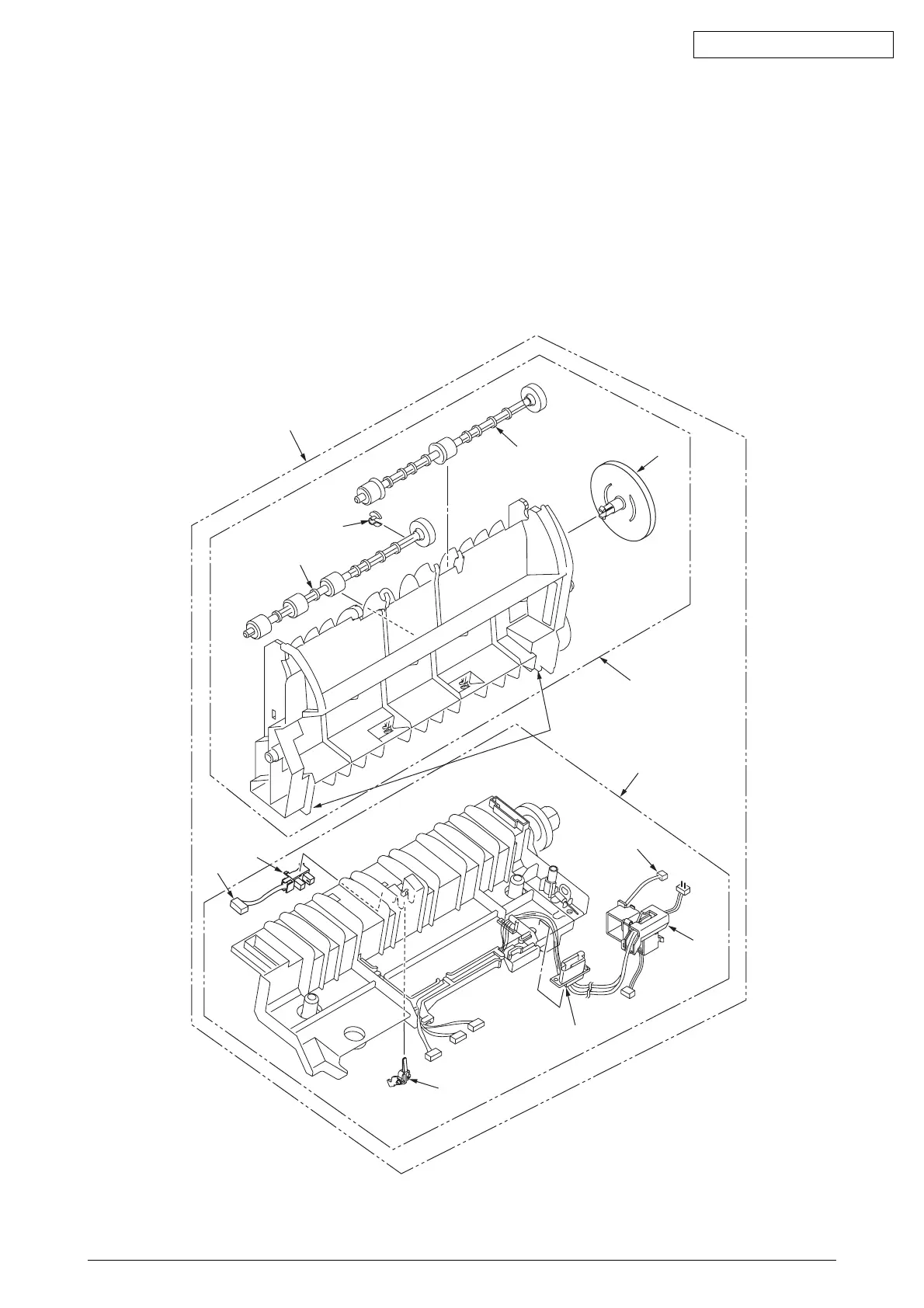

4.2.20 Shaft Assy-Eject (FU) / Shaft Assy-Eject (FD) / Eject Sensor
(1) Detach the Eject Assy 1 (see section 4.2.14).
(2) Remove the two claws to separate the Guide-Eject-Lower 2 and the Guide-Eject-Upper 3.
(3) Remove the Gear-Idle-Eject 4 and Stopper-Shaft 5, then detach the Shaft Assy-Eject (FU) 6
and the Shaft Assy-Eject (FD) 7.
(4) Detach the Lever-Eject Sensor 8 and then the eject sensor 9.
(5) Remove cables 0, A and B and the guide cable C.
Figure 4-2-20 Shaft Assy-Eject (FU) / Shaft Assy-Eject (FD) / Eject Sensor
