Oki C 3200n Service Manual

42615101TH Rev.8 99 /
Oki Data CONFIDENTIAL
4.2.16 MPT-Assy
(1) Open the MPT-Assy 1.
(2) Remove the two stoppers with opening the two arms of MPT-Assy 1 out and remove the two
supports to detach MPT Assy 1, pulling the two supports in the direction of the allow.

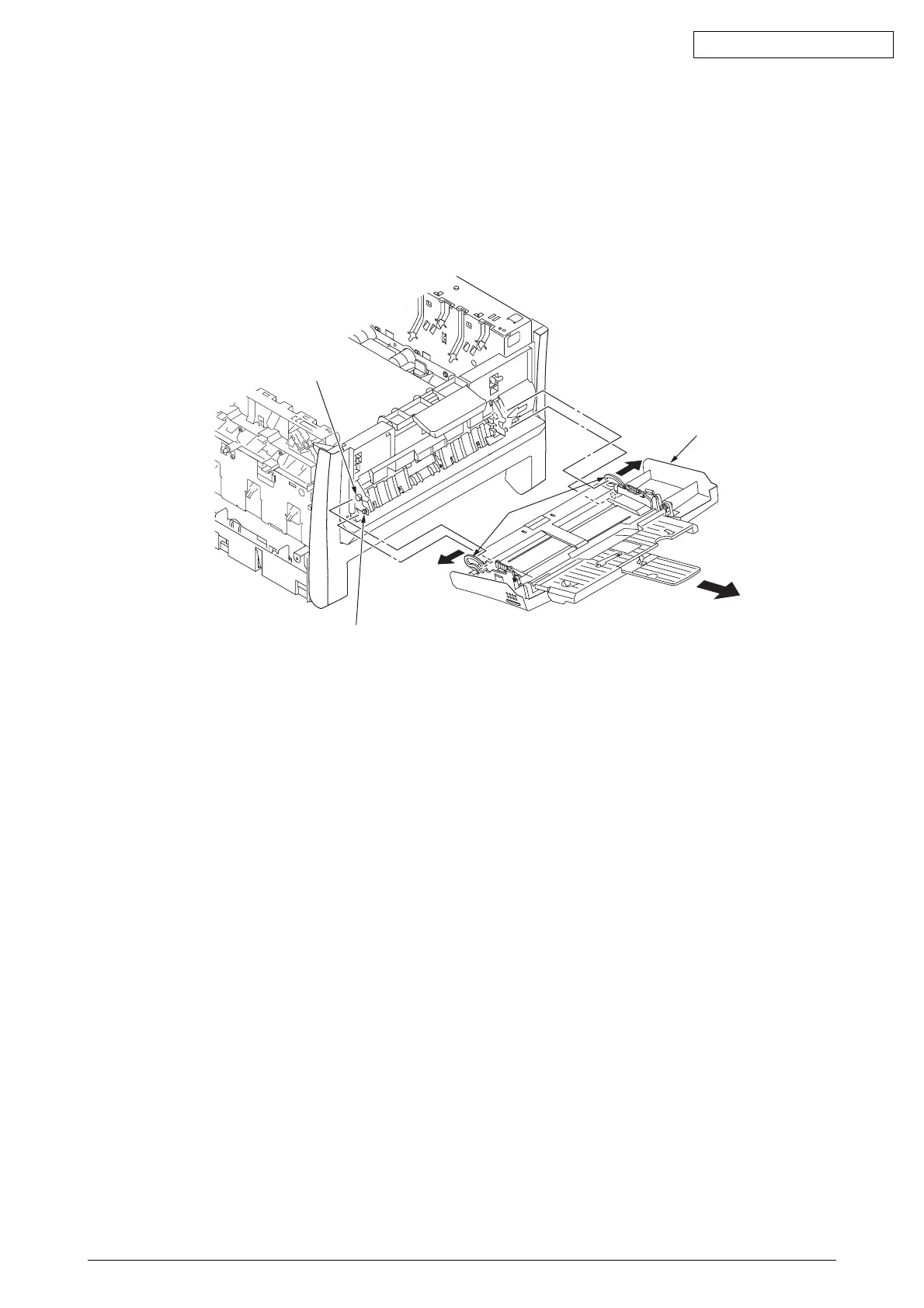

Figure 4-2-16 MPT-Assy
1
Stopper (each side)
Support (each side)
Arms
