Oki C 3200n Service Manual

42615101TH Rev.8 106 /
Oki Data CONFIDENTIAL
(Blue)
(Blue)
1
5
3
3
4
2

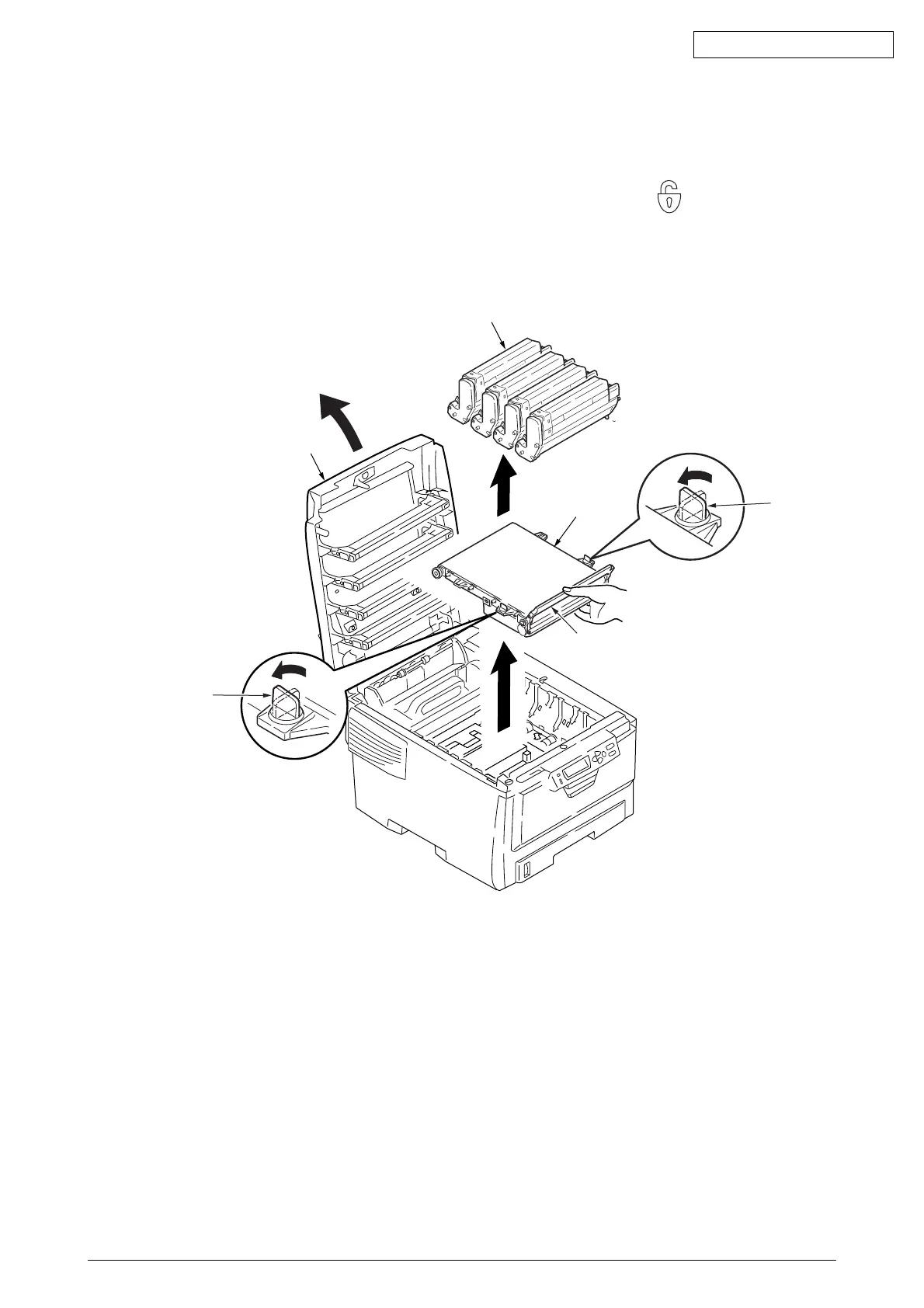

4.2.22 Belt Unit
(1) Open the top cover 1.
(2) Remove the image drum unit.
(3) Turn the lock levers (two blue portions) 2 in the direction of the arrow ( ) and, grasping the
lever (blue) 3, detach the belt unit 4.
Figure 4-2-22 Belt unit
